| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| モデル番号: | TP304、TP304L、TP316、TP316L |
| 最小注文数量: | 100 kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 各チューブはビニール袋で梱包され、合板ケースに入れられます。 |
| 受渡し時間: | 20 - 60 勤務日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | クライアント要求に従って |
| サニタリーチューブ規格: | ASTM A270、ASME SA270、3A | サニタリーチューブ原料: | TP304、TP304L、TP316、TP316L |
|---|---|---|---|
| サニタリーチューブ外径: | 6mm～76.2mm | サニタリーチューブ肉厚: | 0.5-3.4mm |
| 片方の長さ: | 2 メートルまたはクライアントの要求として | サニタリーチューブの表面仕上げ: | 光輝焼鈍、機械研磨、電解研磨 |
| サニタリーチューブエンド: | プレーンエンド、ベベルエンド、ネジ付きエンド | サニタリーチューブの用途: | 製糖工場、食品加工業界、飲料業界、蒸留所、製糖工場、ビール醸造所、工業用液体用途、薬局など |
| ハイライト: | ASTM A270 stainless steel sanitary tube,TP304 BA seamless sugar industry tube,bright annealed sanitary stainless steel tube |
||

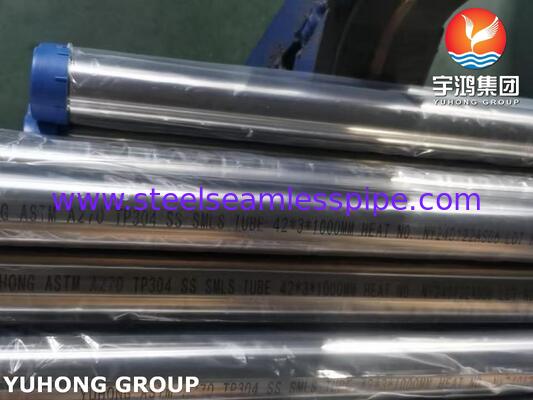

ASTM A270 3A TP304 Bright Annealed Stainless Steel Sanitary Seamless Tube For Sugar Industry
The ASTM A270 TP304 Bright Annealed Stainless Steel Sanitary Seamless Tube is a hollow, cylindrical product manufactured to the stringent standards of ASTM A270, specifically for sanitary applications. It is made from stainless steel 304, produced through a seamless manufacturing process (extrusion), and finished with a Bright Annealed (BA) surface. This combination results in a tube that offers exceptional corrosion resistance, high purity, and an ultrasmooth, bright surface finish, making it ideal for industries where cleanliness and sterility are paramount, such as food processing, dairy, beverage, pharmaceutical, and biotechnology. YUHONG GROUP has abundant manufacturing experience of ASTM A270 TP304 stainless steel sanitary tubes with excellent quality. The outer diameter ranges from 6.35mm to 152.4mm and the wall thickness is typically produced from 0.5mm to 3.4mm. Our sanitary tubes are widely applied in food grade applications, beverage industry, sugar refinery, distiller, evaporator, refrigeration system, heat exchanger, and so on.
Chemical Composition(%) of ASTM A270 TP304:
| C | 0.08max |
| Mn | 2.00max |
| P | 0.045max |
| S | 0.030max |
| Si | 0.75max |
| Cr | 18.0 – 20.0 |
| Ni | 8.0 – 11.0 |
| N | 0.10max |
| Fe | Bal. |
Different Surface Finishes:
1. Bright Annealed (BA): This is a smooth, bright, reflective finish achieved by annealing in a protective atmosphere. It is the standard finish for many pharmaceutical and high-purity applications.
2. Mechanical Polish (MP): This finish is achieved by mechanically grinding and polishing the tube surface. It is specified by the grit size of the abrasive used.
3. Electropolished (EP): This is an electrochemical process that removes a thin layer of material from the surface. It produces an ultrasmooth, non-stick, and highly passive surface. It offers the highest level of cleanability and corrosion resistance. Often applied after mechanical polishing.
Key Advantages and Features:
Different Applications of SS304 Sanitary Tubes:
