| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO9001-2008, API 5L, API 5CT |
| モデル番号: | ASTM A213 T11 |
| 最小注文数量: | 1PC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板の箱、束、編まれた袋 |
| 受渡し時間: | 数量により異なります |
| 支払条件: | T/T、L/C |
| 供給の能力: | 月産100トン |
| 仕様: | ASTM A213 | 学年: | T11 |
|---|---|---|---|
| od: | 3/4 "（19.05）、1"（25.4）、1-1/4 "（31.75）、1-1/2"（38.1）、2 "（50.8）、2-1/2"（63. | タイプ: | シームレス |
| 使用法: | 熱交換器の管、ボイラー管 | 長さ: | 6m～12m（カスタマイズ可能） |
| ハイライト: | ASME SA213 T11 seamless alloy boiler tube,1.25Cr-0.5Mo chrome moly boiler tube,seamless alloy tube for power plant |
||

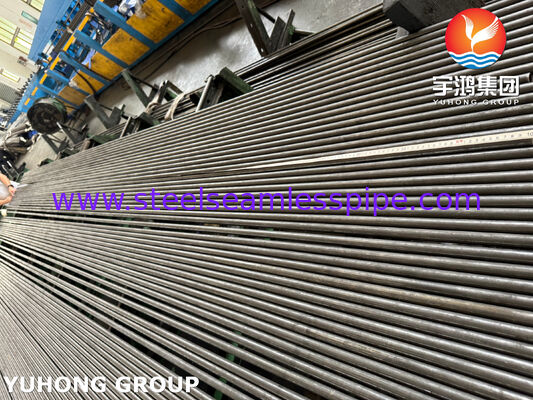

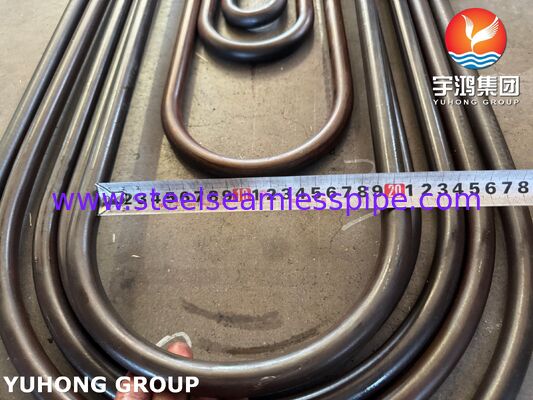

ASME SA213 T11 Seamless Alloy Tube 1.25Cr-0.5Mo Chrome Moly for Boiler Superheater Power Plant
| Chemical Composition | ||
| Element | Content Range (%) | Metallurgical Function |
| C (Carbon) | 0.05 – 0.15 | Ensures high-temperature strength and creep limit; upper limit controlled to maintain weldability |
| Si (Silicon) | 0.50 – 1.00 | Deoxidation; improves high-temperature oxidation resistance |
| Mn (Manganese) | 0.30 – 0.60 | Strengthens matrix; improves hot workability |
| P (Phosphorus) | ≤ 0.025 | Strictly controlled to minimize embrittlement |
| S (Sulfur) | ≤ 0.025 | Reduces hot cracking risk |
| Cr (Chromium) | 1.00 – 1.50 | Forms Cr₂O₃ protective scale for oxidation resistance up to 550°C; synergizes with Mo to enhance hot strength |
| Mo (Molybdenum) | 0.44 – 0.65 | Solid-solution strengthening; inhibits temper embrittlement; significantly improves creep resistance |
| Mechanical Properties | ||
| Parameter | Standard Requirement (Min.) | Typical Value |
| Tensile Strength (Rm) | ≥ 415 MPa | 460 – 580 MPa |
| Yield Strength (Rp0.2) | ≥ 205 MPa | 275 – 360 MPa |
| Elongation (50mm gage length) | ≥ 30% | 35% – 40% |
| Hardness | ≤ 163 HBW / ≤ 85 HRB | 140 – 160 HBW |
| High-Temperature Yield Strength (550°C) | — | Approx. 205 MPa |
| Physical Properties (Reference Values) | ||
| Parameter | Value | Unit |
| Density | ~7.85 | g/cm³ |
| Elastic Modulus (20°C) | ~210 | GPa |
| Thermal Conductivity | ~42 | W/(m·K) |
| Coefficient of Linear Expansion (20–400°C) | ~12.5 | ×10⁻⁶/°C |
Application
