| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| モデル番号: | ASTM B177 C70600 |
| 最小注文数量: | 500kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 複合木製のケース/鉄製のケース/プラスチックキャップのパッケージ |
| 受渡し時間: | 10-90幾日 |
| 支払条件: | L/C,T/T |
| 供給の能力: | クライアントの要求に応じて |
| サポートプレート: | ASTM B177 C70600 | サイズ: | 各種サイズ |
|---|---|---|---|
| 厚さ: | カスタマイズできる | 熱交換器のタイプ: | 貝および管 |
| 適用する: | 産業用 | 寸法: | ASTM,ANSI,API,JIS,ASME,DINなど |
| ハイライト: | Heat Exchanger Square Tubesheet,C70600 Square Tubesheet,ASTM B177 Square Tubesheet |
||

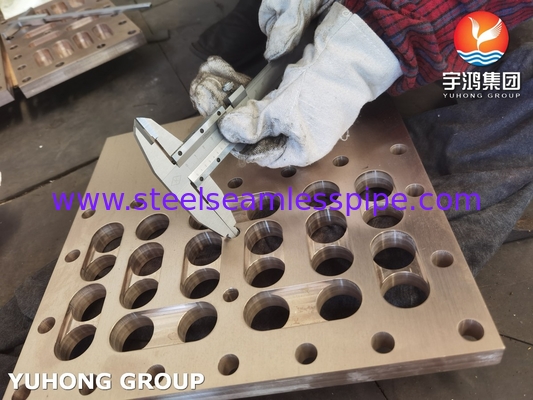

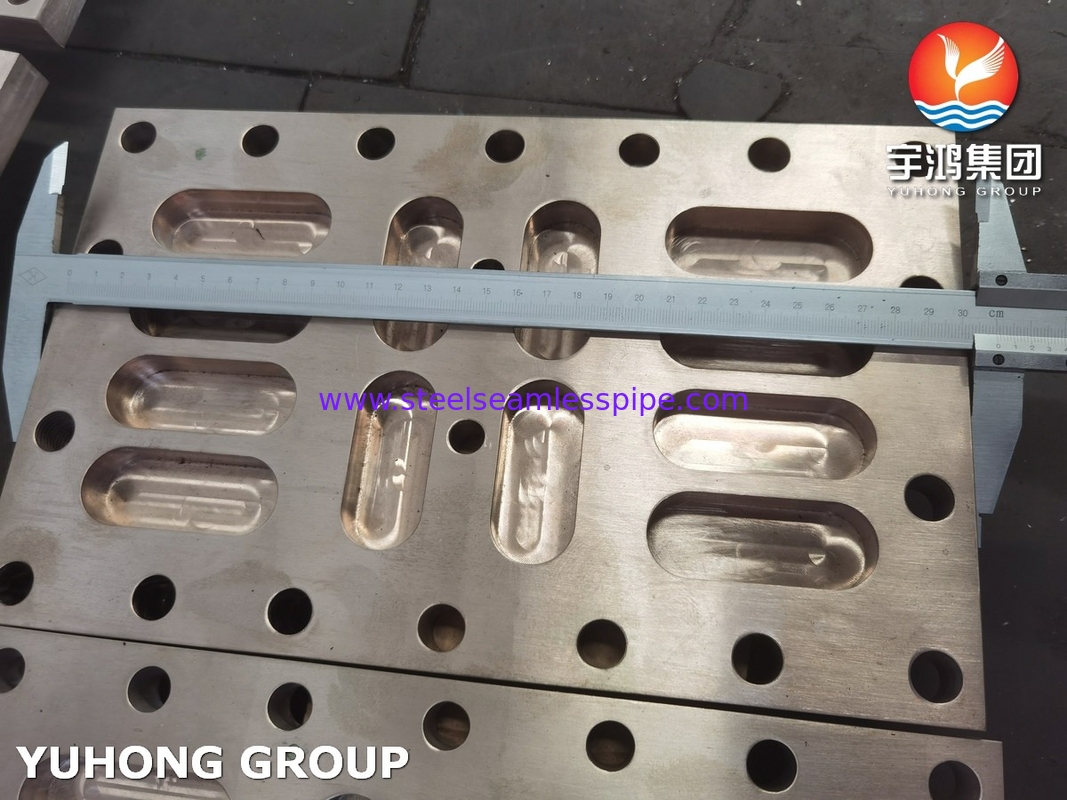

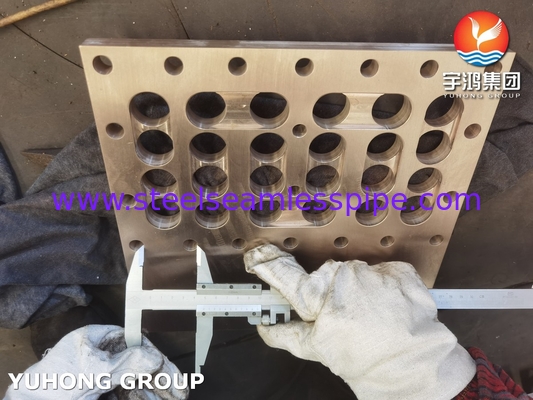

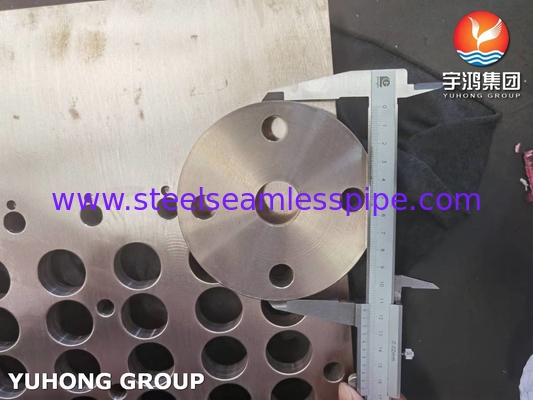

C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.
C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.
| STANDARD | WERKSTOFF NR. | UNS |
| Cu-Ni 90/10 | 2.0872 | C70600 |
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
Applications:
Shipbuilding
Power plants
Desalination plants
HVAC systems
