| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO13485: 2016 |
| モデル番号: | 10g-34g |
| 最小注文数量: | 50 kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンボックス、プラスチックボックス、合板ケース |
| 受渡し時間: | 15-45就業日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 年間130億個 |
| 製品名: | 留置針チューブ | 留置針チップデザイン: | バックカットチップ |
|---|---|---|---|
| 内側にある針管の材料: | 医療グレードSUS304 | 内置針管標準: | ISO9626、ISO7864 |
| 留置針チューブ外径: | 14g -26g通常 | 内側にある針管の長さ: | 19mm、25mm、32mm、38mm、40mmなど。 |

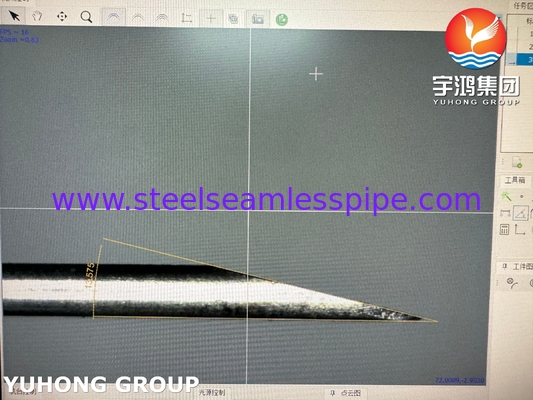

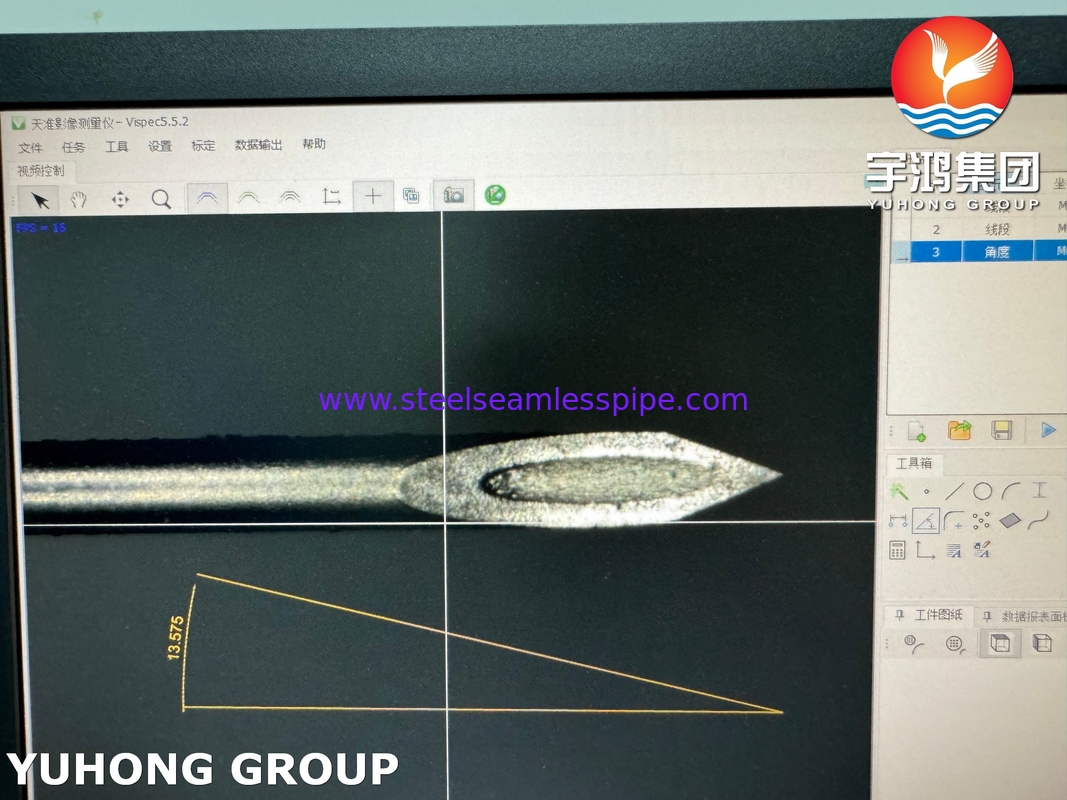

| 留置針チューブの内径: | 0.3mm -1.7mm | 針の先端のベベルの角度: | 主要な最先端の角度は12°〜18°です。 |
| ハイライト: | SUS304 IV cannula needle tube,medical indwelling needle ISO7864,back cut intravenous needle tube |
||

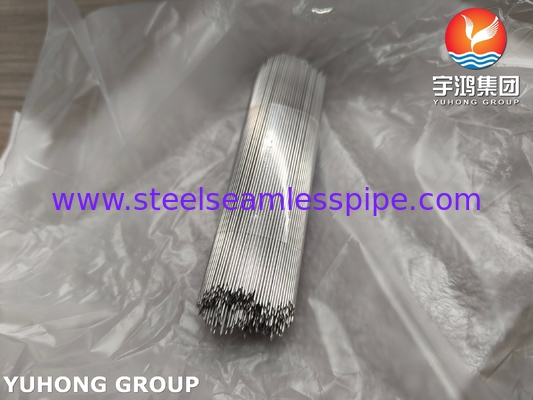

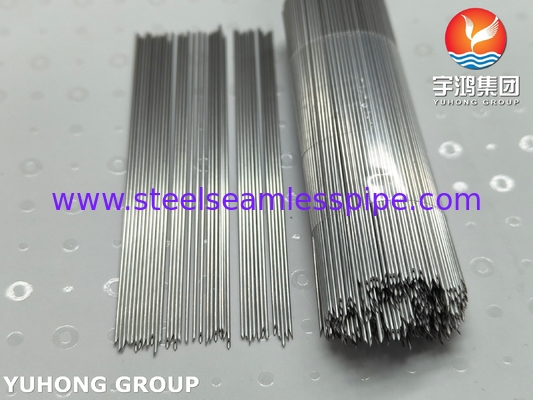

SUS304 Back Cut Intravenous Indwelling Needle Tube, Medical IV Cannula , ISO7864
An intravenous indwelling needle tube is an important component of an intravenous (IV) catheter assembly. It is a precision-manufactured, disposable stainless steel needle tube which is mainly designed to pierce the skin and blood vessel to facilitate the placement of a flexible plastic cannula. Once the IV cannula is in place, this IV indwelling needle tube is withdrawn and discarded, leaving the IV cannula for intravenous therapy. Intravenous indwelling needle tubes are made by SUS304 medical grade material, known for its excellent corrosion resistance, high strength, biocompatibility, and good formability. The design of back-cut needle tip of indwelling needle tubes ensures smooth, clean venipuncture with minimal the pain and trauma of patients. YUHONG GROUP specializes in medical needle tubes, such as indwelling needle tubes, hypodermic needle tubes, insulin needle tubes, blood collection needle tubes, blood lancet, etc. for more than 30 years. In addition to standard semi-finished needle tubes, we can also design the needle tips and shapes for non-standard needle tubes according to clients’ detailed drawings and samples.
Common Sizes:
| Gauge (G) | Nominal Outer Diameter (O.D.) | Nominal Inner Diameter (I.D.) | Standard Length |
| 14G | 2.10 mm | 1.70 mm | 45 mm, 50 mm |
| 16G | 1.60 mm | 1.30 mm | 45 mm, 50 mm |
| 18G | 1.20 mm | 0.90 mm | 40 mm, 45 mm, 50 mm |
| 20G | 0.90 mm | 0.60 mm | 32 mm, 38 mm, 45 mm |
| 22G | 0.70 mm | 0.50 mm | 25 mm, 32 mm, 38 mm |
| 24G | 0.55 mm | 0.40 mm | 19 mm, 25 mm, 32 mm |
| 26G | 0.45 mm | 0.30 mm | 19mm, 25mm, 32mm |
Key Features Of Indwelling Needle Tubes:
Main Applications:
If you have inquiries about medical needle tubes, please confirm below information:
