| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM A213 TP316L |
| 最小注文数量: | 100kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | プラスチックキャップ付きのPly-woodenケース /アイアンケース /バンドル |
| 受渡し時間: | 7日 |
| 支払条件: | L/C、T/T |
| スタンダード: | ASTM A213 | 材料: | TP316L |
|---|---|---|---|
| NDT: | ET/HT/UT | 表面: | ピクルスとアニール |
| パッキング: | Ply-woodenケースまたは鉄のケース | 適用する: | 化学/石油/医療機器/食品加工/環境保護 |
| ハイライト: | ASTM A213 TP316L stainless steel tube,seamless steel tube for heat exchanger,boiler application stainless steel tube |
||

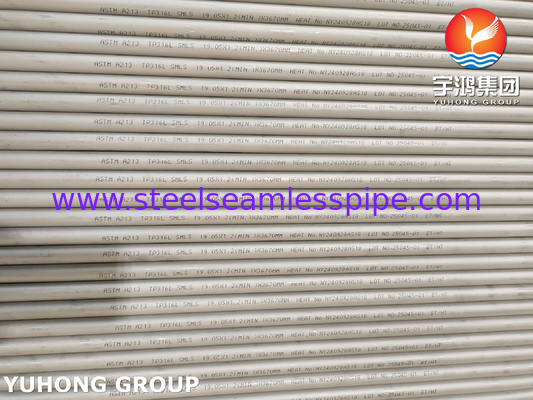

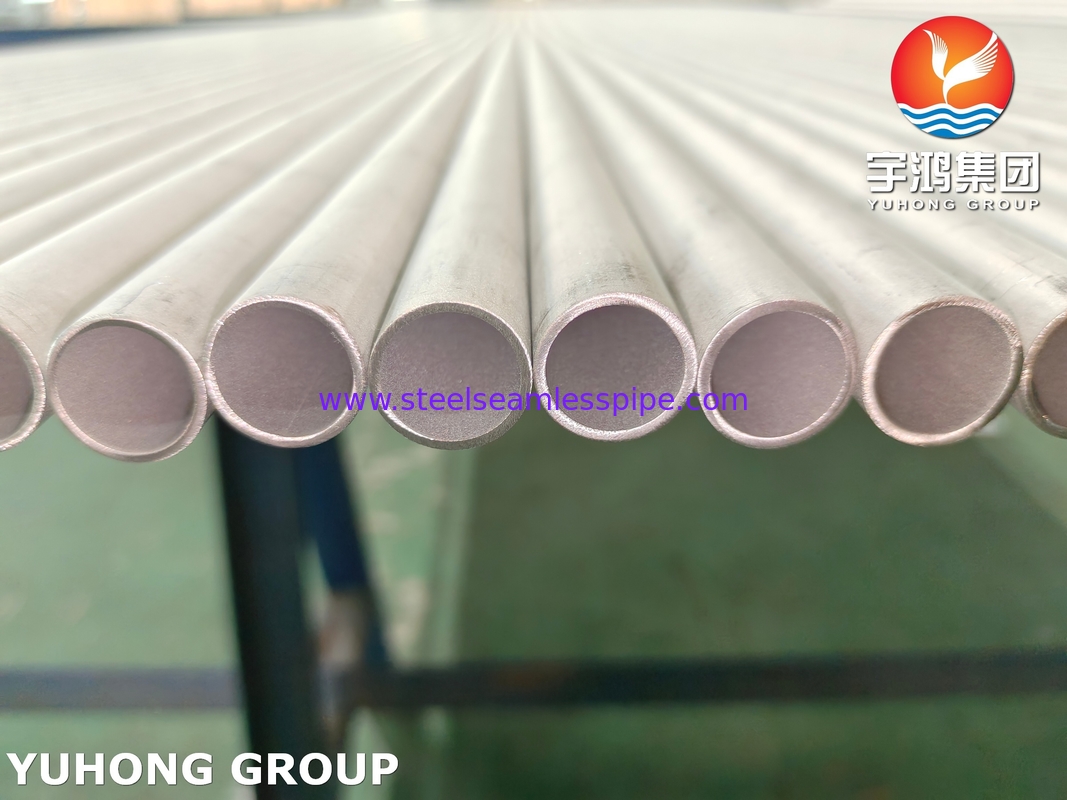

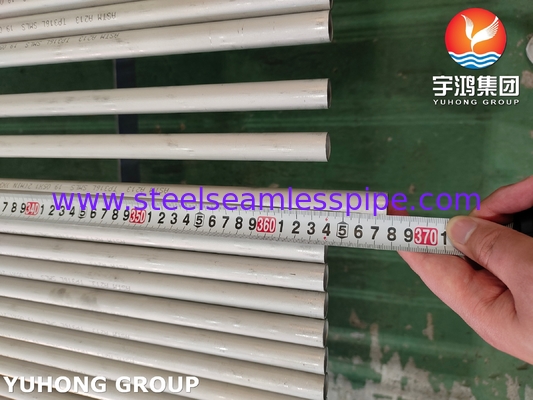

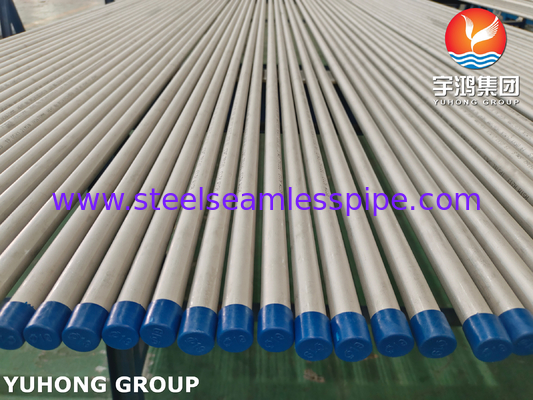

ASTM A213 TP316L Stainless Steel Seamless Tubes Heat Exchanger Application
ASTM A213 is a standard number developed by the American Society for Testing and Materials, which is specifically applicable to seamless ferritic and austenitic alloy steel pipes for boilers, superheaters, and heat exchangers. This means that steel pipes under this standard are designed to withstand high pressure and high temperature environments. TP316L is a low-carbon austenitic stainless steel grade with excellent corrosion resistance and outstanding resistance to chloride pitting corrosion.
ASTM A213 TP316L Key Advantages
ASTM A213 TP316L Stainless Steel Chemical Composition
| SS GRADE | ASTM A213 CHEMICAL COMPOSITION % MAXIMUM | |||||||
|---|---|---|---|---|---|---|---|---|
| C | MN | P | S | SI | CR | NI | MO | |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 |
ASTM A213 Tubes Mechanical Properties
| SS GRADE | HEAT TREATMENT | TEMPERURE F (C) MINIMUM | HARDNESS | |
|---|---|---|---|---|
| BRINELL | ROCKWELL | |||
| TP316 | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
Comparison of ASTM A213 TP316L with Other Common Materials
1.vs. 304/304L: The 304/304L series contains no molybdenum and is significantly less resistant to chloride corrosion than 316/316L. Therefore, 304 is a more economical choice for less corrosive environments.
2.vs. 316: The key difference between 316L and 316 lies in its carbon content. If equipment requires extensive welding or undergoes heat treatment during manufacturing, 316L is essential to avoid intergranular corrosion, while standard 316 can be used for simpler components that don't require welding.
3.vs. 317L: 317L has a higher molybdenum content (3-4%) than 316L, resulting in greater resistance to pitting and crevice corrosion than 316L, making it suitable for more demanding environments. However, it also comes at a higher cost.
ASTM A213 TP316L Stainless Steel Seamless Tube Application:
Power Generation Industry: Boilers, superheaters, reheaters, and heat exchanger piping.
Petrochemical Industry: Process piping, heat exchanger tubes, catalyst tubes, etc. in refineries and chemical plants, used to handle various corrosive media.
Food and Pharmaceutical Industry: After internal and external surface polishing, ASTM A213 TP316L stainless steel seamless tube can be used in process piping systems with extremely high requirements for hygiene and corrosion resistance.
Marine and Shipbuilding Industry: Used in seawater cooling systems, ship piping, and other equipment resistant to seawater corrosion.
High-Temperature Gas Treatment: Flue Gas Desulfurization units, exhaust gas treatment systems, etc.
