| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM SB163 N04400 |
| 最小注文数量: | 100kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | プラスチック帽子/編まれた箱が付いている層木の場合の/Ironの場合の束 |
| 受渡し時間: | 数量に依存します |
| 支払条件: | L/C、T/T |
| 供給の能力: | 月額1000トン |
| 材料グレード: | UNS N04400/Monel 400 | 製品タイプ: | シームレスなニッケルコッパー合金パイプ |
|---|---|---|---|
| 認定コンプライアンス: | ASTM SB163、ASME SB163、EN 10204 3.1 | 端末接続タイプ: | シンプルエンド,ベーブエンド,スレッド |
| 表面仕上げ: | アニールとピクルス、磨かれた | 耐食性: | 海水、酸、アルカリ環境 |
| ハイライト: | ASTM SB163 Monel 400 seamless pipe,N04400 nickel alloy pipe EN10204 certified,Monel 400 pipe with 3.1 certification |
||

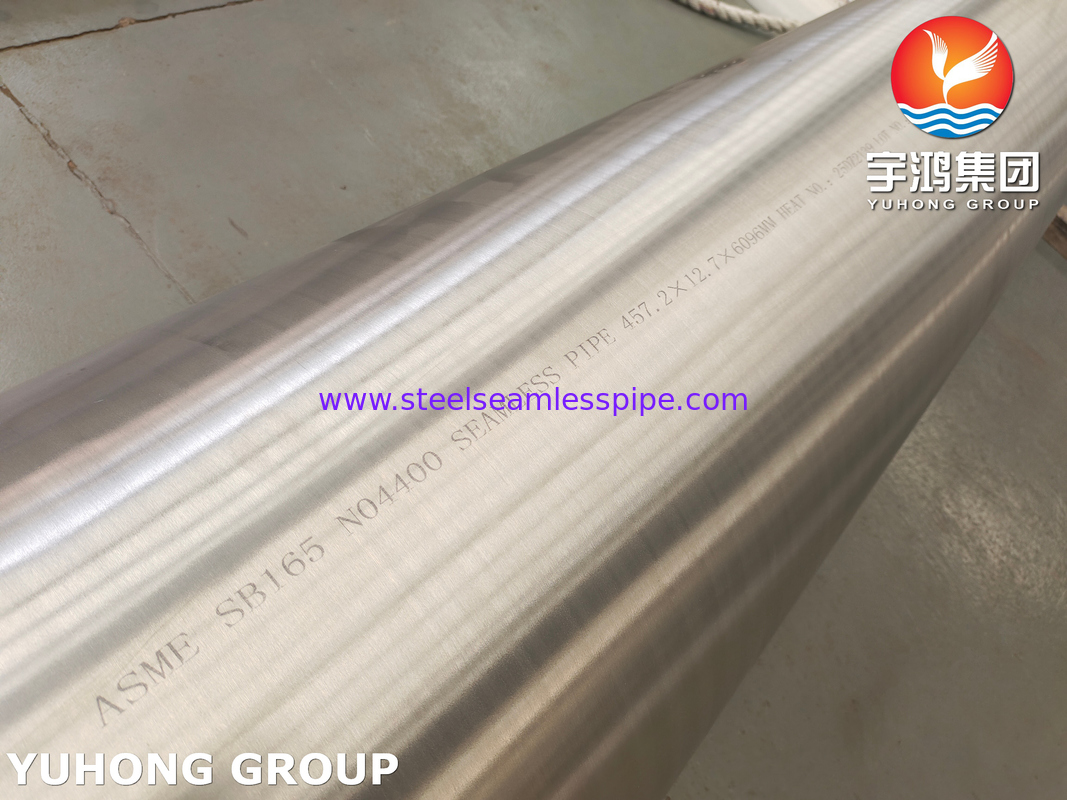

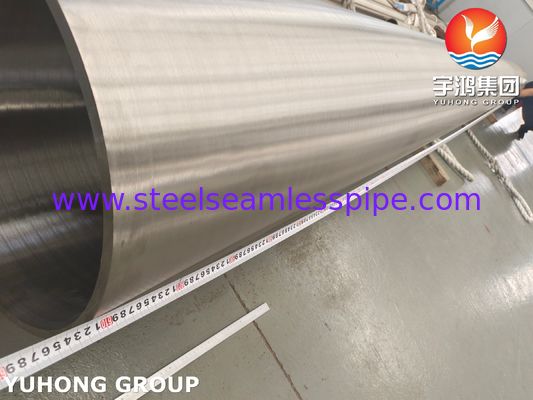

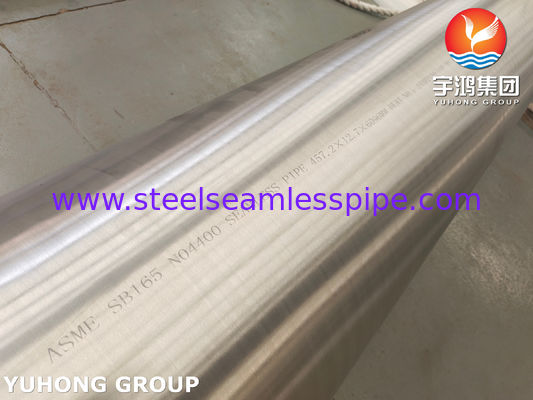

ASTM SB163 UNS N04400 is a nickel-copper alloy seamless pipe renowned for exceptional corrosion resistance in acidic, alkaline, and marine environments. With high strength, thermal stability (up to 538°C), and superior fabricability, it’s ideal for critical applications in chemical processing, oil & gas, and marine engineering. Manufactured to ASTM SB163 standards, these pipes ensure reliability in extreme conditions.
The corrosion resistance of N04400 stems from its precise nickel-copper balance. Key elements include:
| Element | Content (%) | Element | Content (%) |
|---|---|---|---|
| Nickel (Ni) | 63.0 min | Copper (Cu) | 28.0–34.0 |
| Iron (Fe) | 2.0 max | Manganese (Mn) | 2.0 max |
| Carbon (C) | 0.3 max | Sulfur (S) | 0.024 max |
| Silicon (Si) | 0.5 max |
N04400 alloy is globally recognized under these designations:
| Standard | Equivalent Grade | Standard | Equivalent Grade |
|---|---|---|---|
| UNS | N04400 | EN | NiCu30Fe |
| DIN | 2.4360 | JIS | NW4400 |
| BS | NA 13 | ASME | SB163 |
Meets ASTM SB163 requirements for high strength and ductility:
| Property | Value |
|---|---|
| Tensile Strength | 550 MPa (min) |
| Yield Strength (0.2%) | 240 MPa (min) |
| Elongation (%) | 35% (min) |
| Hardness (Rockwell B) | 90 HRB (max) |
Precision-engineered to ASTM SB163 specifications:
| Parameter | Tolerance |
|---|---|
| Outer Diameter | ±0.8% (OD ≤ 50mm) ±0.5% (OD > 50mm) |
| Wall Thickness | +20% / -0% (Schedules 5S-XXS) |
| Length | +3 mm / -0 mm (Cut Length) |
N04400 pipes excel in corrosive and high-stress environments:
