| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | DNV, BV, PED, LR, ABS, TS, CCS |
| 最小注文数量: | 200-500kgs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | スチールフレームを備えたPly-woodenケース（パイプの両端にはプラスチックキャップがあります） |
| 受渡し時間: | 45〜75日（顧客の要件に依存します |
| 支払条件: | L/C、T/T、視界 |
| 供給の能力: | クライアントの要件に応じて |
| チューブ仕様：: | ASME SA312,ASTM A312 | チューブ材料：: | TP321H |
|---|---|---|---|
| フィンタイプ: | HFWフィン付きチューブ/ソリッドフィンチューブ | フィン材料グレード: | 炭素鋼 |
| ハイライト: | ASTM A312 TP321Hフィンチューブ、HFWソリッドフィンチューブ、熱交換器フィンチューブ | 形: | ラウンド |
| 応用: | 発電所、空気予熱器、ボイラー |

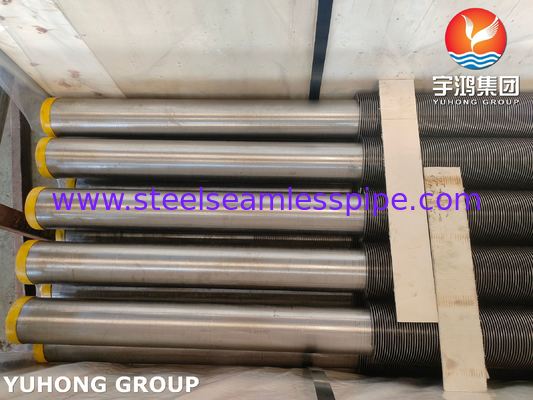

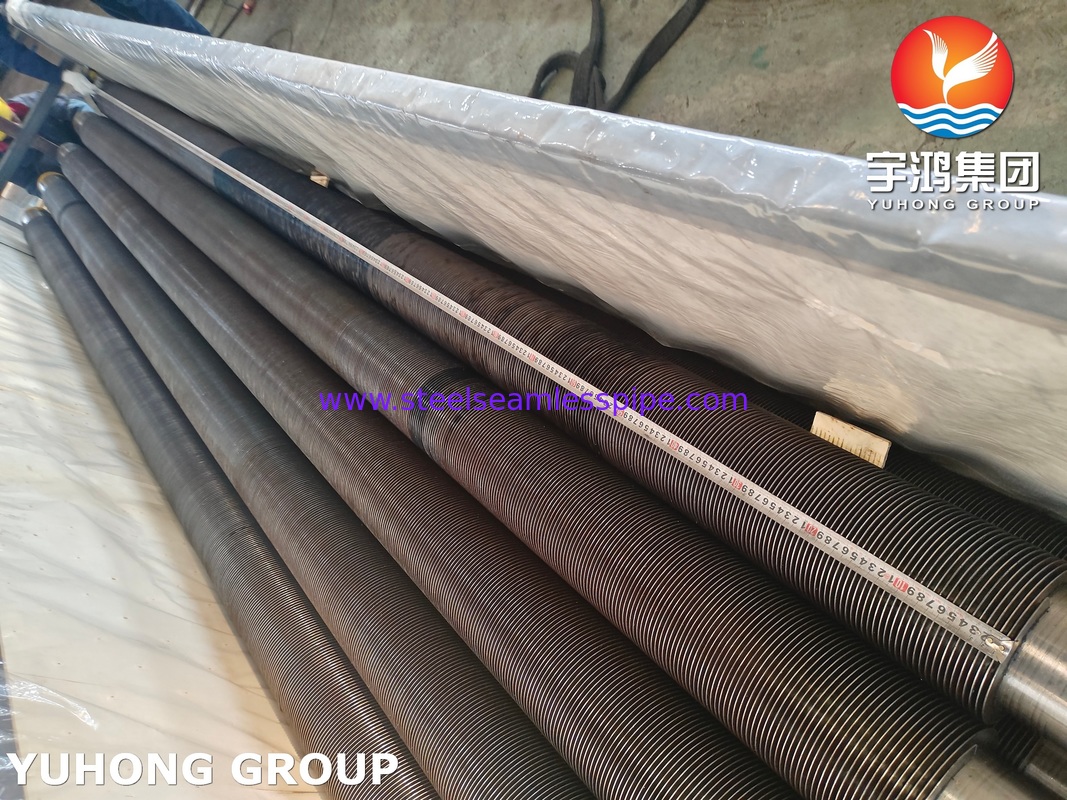

ASME SA312 TP321H High-Frequency Welded (HFW) Fin Tube
The ASME SA312 TP321H High-Frequency Welded (HFW) Fin Tube is a high-performance heat transfer component engineered for extreme industrial environments. It combines the superior high-temperature strength and corrosion resistance of ASME SA312 TP321H stainless steel with the exceptional thermal efficiency of integrally welded fins. This makes it a critical solution in demanding applications across power generation, petrochemical, and process heating industries.
321H is a high-carbon austenitic stainless steel grade: the "H" denotes high carbon content (0.04–0.10%), which enhances high-temperature strength.Key Alloying Element: Titanium (Ti). This is the crucial stabilizer that prevents chromium carbide precipitation during exposure to high temperatures (450-900°C / 842-1652°F), which causes sensitization and intergranular corrosion.
Chemical Composition(%)
| TP321H Chemical Composition(%) | ||||||
| Element | C | Si | Cr | Mn | Ni | Ti |
| Range | 0.04-0.10 | ≤0.75 | 17.00-19.00 | ≤2.00 | 9.00-123.00 | 4*C-0.7 |
Mechanical Properties
| ASME SA312 TP321H Mechanical Properties | |||
| Tensile Strength | Yield Strength | Hardness | Elongation |
| 515MPa | ≥205MPa | ≤ 192HB | ≥35% |
Equivalent Material of TP321H
| ASTM/AISI | UNS NO | EN | ISO | JIS | GOST |
| TP321H | UNS32109 | 1.4874 | X7CrNiTi18-10 | SUS 321H | 08Ch18N12T |
Advantages of HFW Fin Tubes:
1.Stronger Bond: Metallurgical fusion provides superior resistance to vibration, thermal cycling, and fin peeling.
2.Higher Efficiency: Eliminates air gaps and flux residues, boosting heat transfer by 5–15% over rolled or brazed tubes.
3.Material Flexibility: Welds dissimilar metals (e.g., stainless to carbon steel) without needing ductility or specific alloys.
4.Greater Durability: Withstands high temperatures (800–850°C) and pressure without braze softening or stress cracking.
5.Lower Lifetime Cost: High-speed production and a 2–3x longer service life reduce total cost of ownership.
Applications Of ASME SA312 TP321H High-Frequency Welded (HFW) Fin Tube
1.Power Generation: Boiler superheaters, reheaters, economizers, and air preheaters in coal-fired and combined-cycle plants.
2.Petrochemical & Refining: Heat exchangers in catalytic reforming, hydrocracking, and ethylene pyrolysis furnaces; charge gas coolers.
3.Industrial Furnaces: Convection sections, radiant tubes, and waste heat recovery units in chemical, steel, and glass manufacturing.
4.Waste Heat Recovery Systems: Capturing and repurposing energy from high-temperature exhaust streams.
