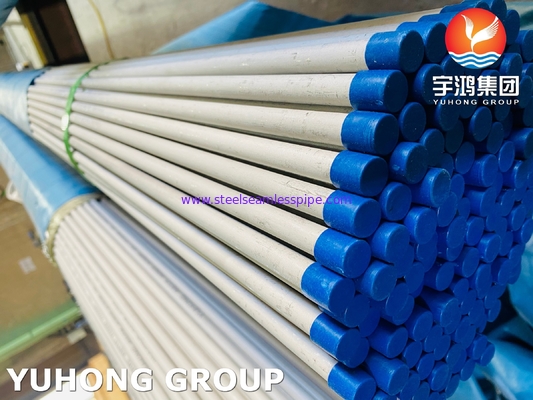

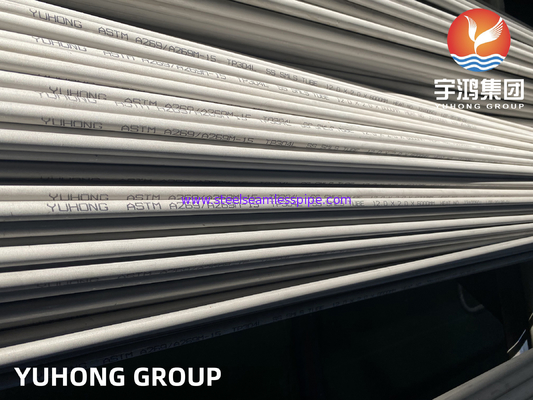

ASTM A269 TP304L Stainless Steel Seamless Pipe For Chemical Processing

ASTM A269 TP304L Stainless Steel Seamless Pipe For Chemical Processing

The ASTM A269 TP304L stainless steel seamless pipe is a high-quality tubular product designed for various industrial and engineering applications. Here’s a detailed introduction to this material:

1. Overview of ASTM A269 Standard

The ASTM A269 specification covers seamless and welded austenitic stainless steel tubing intended for general corrosion-resisting and low- or high-temperature applications. It ensures the pipes meet specific mechanical and chemical property requirements, making them suitable for industries such as chemical processing, food handling, power generation, and more.

2. Material: TP304L Stainless Steel

TP304L is the low-carbon version of Type 304 stainless steel. The "L" in 304L stands for "Low Carbon," which improves its weldability and reduces the risk of intergranular corrosion, especially in heat-affected zones. This makes TP304L an excellent choice for applications where welding is required.

Key Features of TP304L:

• Chemical Composition:
  • Chromium (Cr): 18.0 - 20.0%
  • Nickel (Ni): 8.0 - 12.0%
  • Carbon (C): ≤ 0.035%
  • Manganese (Mn): ≤ 2.00%
  • Silicon (Si): ≤ 1.00%
  • Phosphorus (P): ≤ 0.045%
  • Sulfur (S): ≤ 0.030%
• Mechanical Properties:
  • Tensile Strength: ≥ 485 MPa (70 ksi)
  • Yield Strength: ≥ 170 MPa (25 ksi)
  • Elongation: ≥ 35%
  • Hardness: ≤ 90 HRB
• Corrosion Resistance: Excellent resistance to oxidation, pitting, and crevice corrosion in most environments.
• Low Carbon Content: Reduces the risk of carbide precipitation during welding, enhancing its suitability for high-temperature and corrosive environments.

3. Manufacturing Process

The ASTM A269 TP304L seamless pipe is produced through a cold or hot drawing process. The seamless construction eliminates the presence of welds, providing enhanced strength and uniformity.

Key steps in the manufacturing process:

1. Raw Material: High-quality stainless steel billets are used as raw material.
2. Piercing: The billets are pierced to form a hollow tube.
3. Cold Drawing: The tube undergoes cold drawing to achieve precise dimensions and improved surface finish.
4. Heat Treatment: Pipes are annealed to relieve stress and improve mechanical properties.
5. Surface Finishing: Pipes are polished to meet specific requirements (e.g., bright annealed or matte finish).
6. Testing: Pipes are subjected to rigorous testing for dimensional accuracy, mechanical properties, and corrosion resistance.

4. Key Features of ASTM A269 TP304L Seamless Pipes

• Seamless Construction: Ensures superior strength, uniformity, and resistance to pressure.
• Corrosion Resistance: Highly resistant to oxidizing and reducing agents, acids, and chloride-rich environments.
• High-Temperature Resistance: Suitable for use in environments with extreme temperatures.
• Non-Magnetic: In its annealed condition, TP304L is non-magnetic.
• Versatile Applications: Can handle cryogenic to moderately high temperatures.
• Weldability: The low carbon content minimizes carbide precipitation, making it ideal for welding.

5. Applications

ASTM A269 TP304L seamless pipes are widely used in industries requiring high strength and corrosion resistance. Common applications include:

• Chemical Processing: Transport of corrosive chemicals like acids and alkalis.
• Food and Beverage: Piping for food-grade liquids and sanitation systems.
• Pharmaceuticals: Hygienic tubing for drug manufacturing and sterile environments.
• Oil and Gas: Pipes for upstream, midstream, and downstream operations.
• Power Plants: Heat exchangers and boiler tubes.
• Marine Industry: Tubing exposed to saltwater and harsh marine environments.

6. Testing and Quality Assurance

ASTM A269 TP304L seamless pipes undergo a series of quality tests to ensure compliance with the standard:

• Hydrostatic Testing: Ensures no leaks under pressure.
• Non-Destructive Testing (NDT): Includes ultrasonic and eddy current testing to detect surface and subsurface defects.

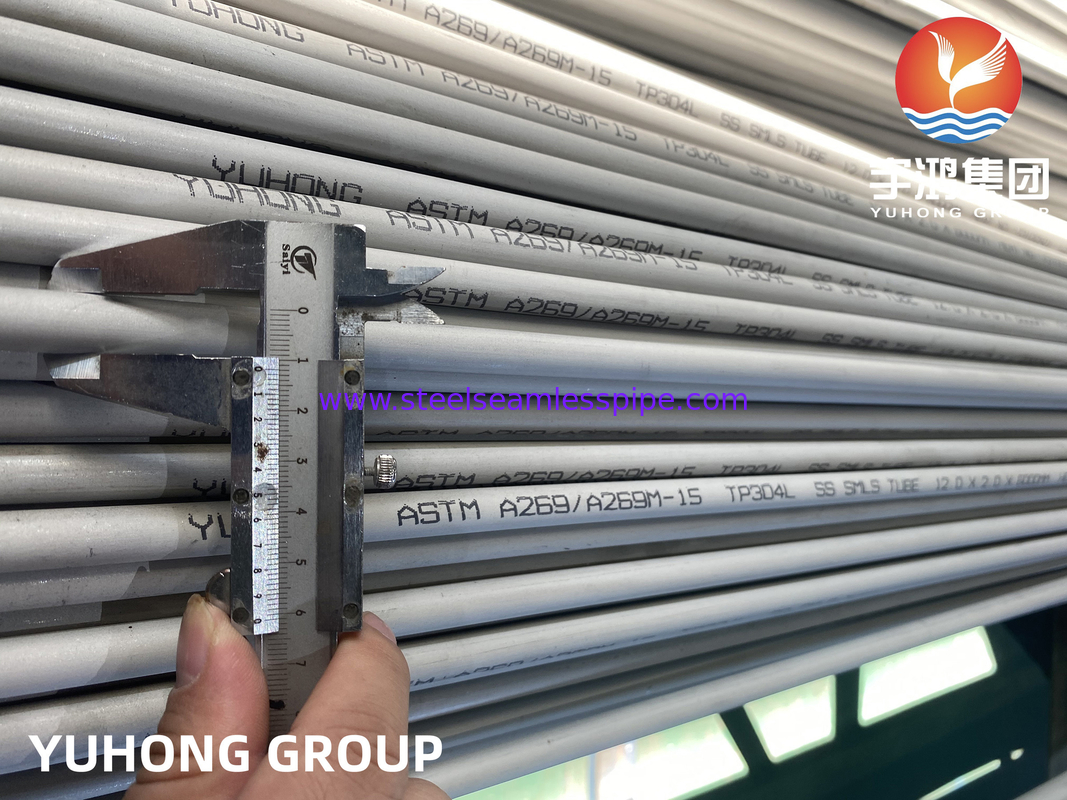

• Dimensional Check: Verifies compliance with specified tolerances.
• Chemical Analysis: Confirms material composition.
• Mechanical Testing: Includes tensile strength, hardness, and elongation tests.

7. Advantages of Choosing ASTM A269 TP304L Seamless Pipes

• Long service life due to excellent corrosion resistance.
• Superior strength and durability compared to welded pipes.
• High reliability in critical applications.
• Low maintenance requirements.
• Suitable for both low- and high-temperature applications.
