| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM A213 T5 |
| 最小注文数量: | 500kgs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | プラスチックキャップ付きのPly-woodenケース /アイアンケース /バンドル |
| 受渡し時間: | 15〜20日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 800 トン/月 |
| 標準: | ASTM A213/ASME SA213 | 材料グレード: | T5 (UNS S50100) |
|---|---|---|---|
| 製品タイプ: | シームレスチューブ | 材料: | クロム・モリブデン合金鋼 |
| アプリケーション: | 高温ボイラー管 | サイズ範囲: | 外径1/4インチ～4インチ |
| ハイライト: | ASTM A213 T5 alloy steel tube,chromium molybdenum steel tube,high temperature seamless steel tube |
||

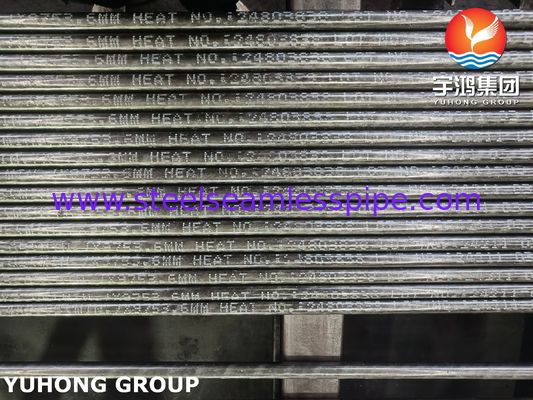

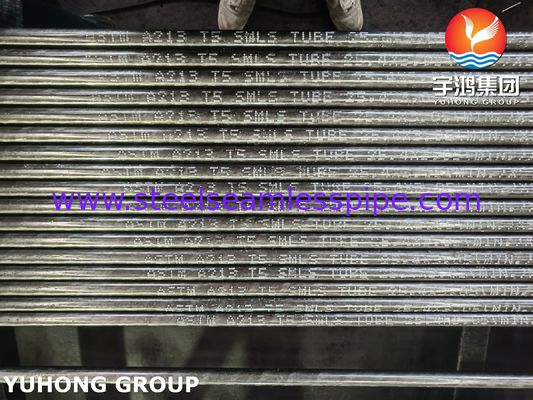

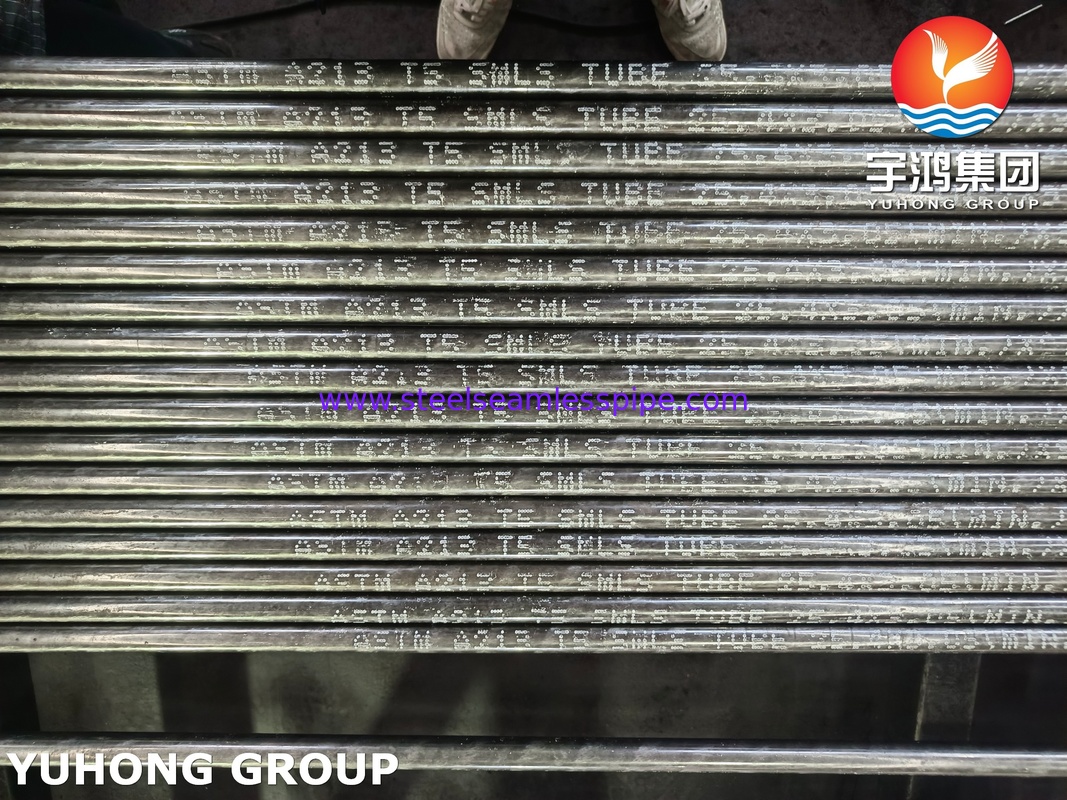

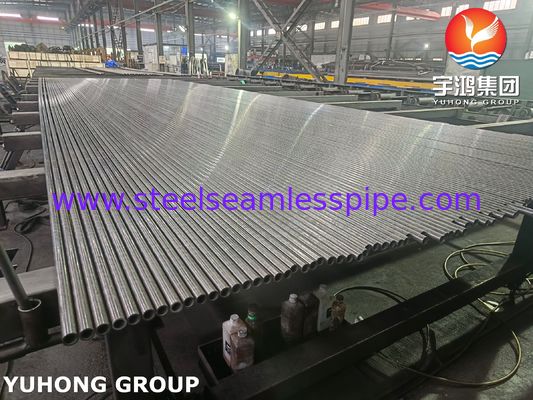

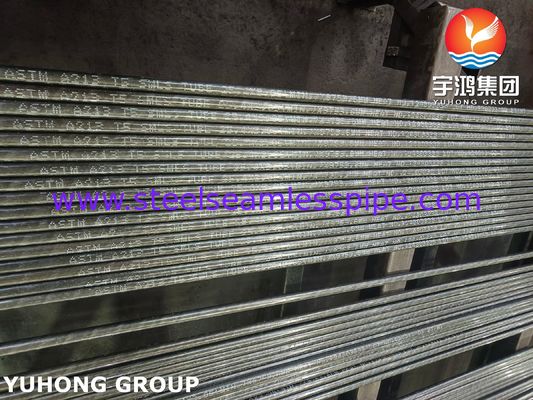

ASTM A213 T5 Alloy Steel Seamless Tube Chromium Molybdenum Steel for High Temperature Service
YUHONG GROUP leverages 35 years of industrial expertise and a global presence spanning 85 countries to deliver high-performance alloy steel tubing for critical high-temperature applications. Our ASTM A213 T5 chromium-molybdenum alloy seamless tubes are engineered for the power generation and petrochemical industries, where elevated-temperature resistance and durability are paramount.
With decades of experience in metallurgy and precision manufacturing, we provide ASTM-compliant tubing solutions that ensure reliability in boiler systems, heat exchangers, and high-pressure piping applications worldwide. Our commitment to quality and technical excellence makes us a trusted partner for energy and process industry clients worldwide.
Chemical Composition of Grade T5 (UNS K41545)
| Element | Requirement (%) |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 - 0.60 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.025 max |
| Silicon (Si) | 0.50 max |
| Nickel (Ni) | ... |
| Chromium (Cr) | 4.00 - 6.00 |
| Molybdenum (Mo) | 0.45 - 0.65 |
| Vanadium (V) | ... |
| Boron (B) | ... |
Heat Treatment Requirements for Grade T5 (UNS K41545)
| Parameter | Specification | Notes |
| Grade | T5 | Chromium-Molybdenum Alloy Steel |
| UNS Number | K41545 | |
| Heat Treat Type | Full or Isothermal Anneal, or Normalize and Temper | Multiple approved heat treatment processes are available. |
| Subcritical Annealing or Tempering Temperature | 1200 to 1350 °F [650 to 730 °C] | This is a critical step following normalization (if performed). |
| Subcritical Annealing or Tempering Temperature (Alternative) | 1250 °F [675 °C] | A specific temperature within the range is called out. |
| ASTM Grain Size No. | Not Specified | - |
Mechanical Properties of Grade T5 (UNS K41545)
| Property | Requirement | Notes |
| Grade | T5 | Low Alloy Steel (Chromium-Molybdenum) |
| UNS Designation | K41545 | |
| Tensile Strength, min | 60 ksi [415 MPa] | |
| Yield Strength (0.2% Offset), min | 30 ksi [205 MPa] | |
| Elongation in 2 in. or 50 mm, min | 30% | See footnotes a, b, c for test exceptions |
| Hardness, max | 163 HBW / 170 HV / 85 HRB | Brinell, Vickers, or Rockwell B Scale |
Key Application Advantages of ASTM A213 T5 Alloy Steel Seamless Tube
1. Excellent High-Temperature Performance
The chromium-molybdenum alloy composition (T5 grade) provides outstanding oxidation resistance and sustained strength at temperatures up to 538°C (1000°F), making it ideal for high-temperature service in boilers and heat exchangers.
2. Superior Corrosion & Oxidation Resistance
Offers enhanced resistance to oxidation, sulfidation, and creep under elevated temperatures, significantly extending service life in thermal power plants and refinery applications.
3 . Optimized Thermal Efficiency
The seamless tube structure ensures uniform wall thickness and smooth internal surface, promoting efficient heat transfer and reducing energy consumption in power generation systems.
4 . Proven Reliability in Critical Applications
Widely used in superheaters, reheaters, and heat exchanger components, demonstrating reliable performance under cyclic thermal conditions and high-pressure environments.
5 . Global Standard Compliance
Manufactured in full compliance with ASTM A213/ASME SA213 standards, ensuring material quality and safety for international power and process industry projects.
