| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM A335 P91 & P92 |
| 最小注文数量: | 500kgs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | プラスチックキャップ付きのPly-woodenケース /アイアンケース /バンドル |
| 受渡し時間: | 15〜20日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 800 トン/月 |
| 標準: | ASTM A335/ASME SA335 | 材料グレード: | P91 (UNS K91560) および P92 (UNS K92460) |
|---|---|---|---|
| 製品タイプ: | 縫い目のない鋼管 | アプリケーション: | 発電所ボイラー、高温配管 |
| サイズ範囲: | 外径1/2インチ～24インチ | NDT Requirements: | UT、ET、HT 利用可能 |
| ハイライト: | ASTM A335 P91 seamless steel tubes,high temperature chromium molybdenum alloy tubes,supercritical power plant alloy steel tubes |
||

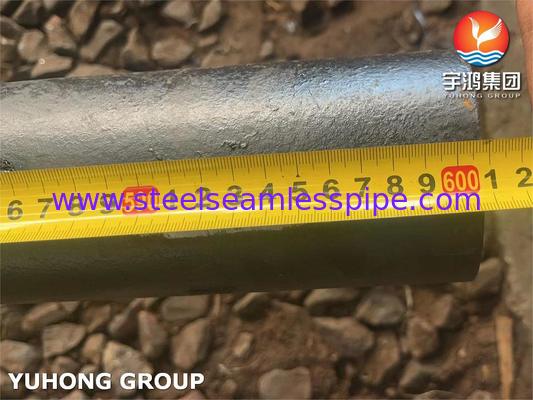

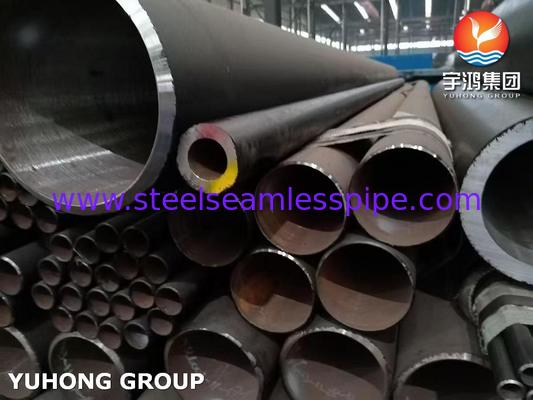

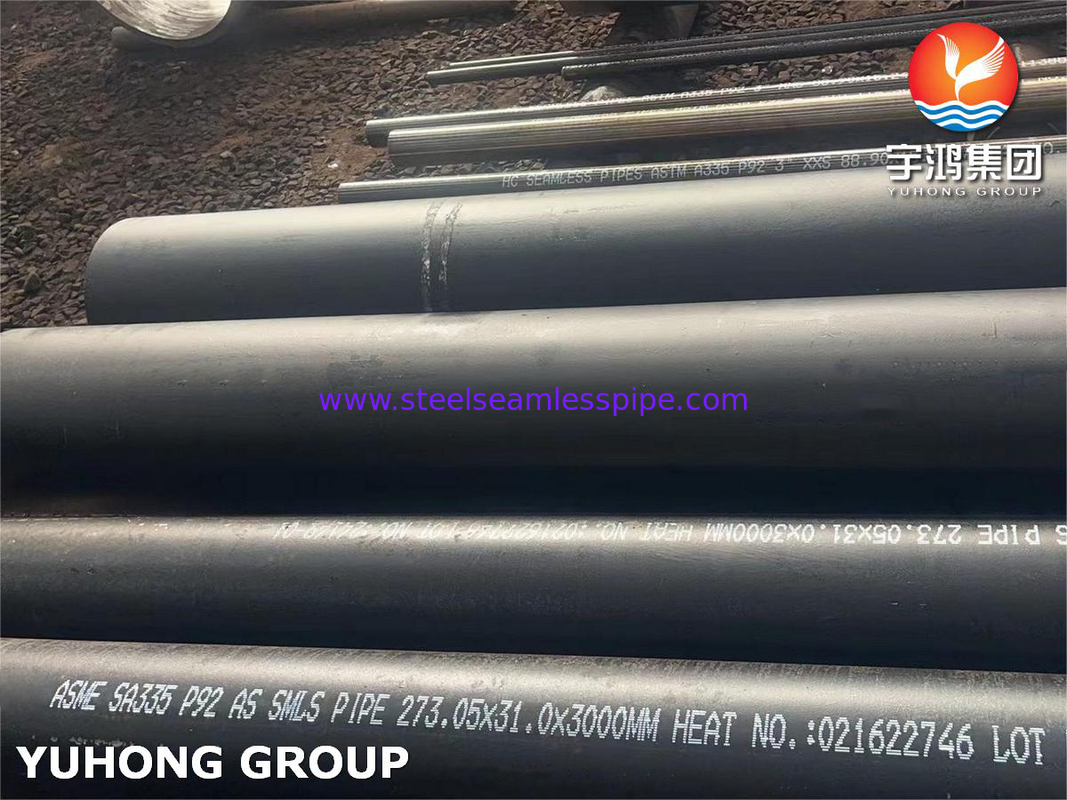

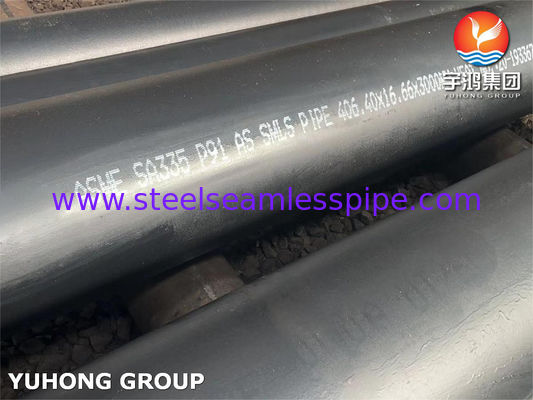

ASTM A335 P91 & P92 Seamless Steel Tubes High Temperature Chromium Molybdenum Alloy for Supercritical Power Plants
YUHONG GROUP is a specialized manufacturer with 35 years of experience in producing high-performance seamless steel tubes. Our ASTM A335 P91 & P92 chromium-molybdenum alloy tubes are engineered for supercritical power plants, offering exceptional high-temperature strength and oxidation resistance for global energy applications.
Chemical Composition Comparison: Grade P91 vs. P92
| Element | P91 (UNS K90901) Requirement, % | P92 (UNS K92460) Requirement, % |
| Carbon (C) | 0.08 - 0.12 | 0.07 - 0.13 |
| Manganese (Mn) | 0.30 - 0.60 | 0.30 - 0.60 |
| Phosphorus (P), max | 0.02 | 0.02 |
| Sulfur (S), max | 0.01 | 0.01 |
| Silicon (Si) | 0.20 - 0.50 | 0.50 max |
| Chromium (Cr) | 8.00 - 9.50 | 8.50 - 9.50 |
| Molybdenum (Mo) | 0.85 - 1.05 | 0.30 - 0.60 |
| Vanadium (V) | 0.18 - 0.25 | 0.15 - 0.25 |
| Niobium (Nb) | 0.06 - 0.10 | 0.04 - 0.09 |
| Nitrogen (N) | 0.03 - 0.07 | 0.03 - 0.07 |
| Nickel (Ni), max | 0.4 | 0.4 |
| Aluminum (Al), max | 0.04 | 0.04 |
| Tungsten (W) | - | 1.50 - 2.00 |
| Boron (B) | - | 0.001 - 0.006 |
Heat Treatment Requirements: Grade P91 vs. P92
| Parameter | P91 (Type 1 & 2) | P92 | Key Notes |
| Grade | P91 | P92 | Both are high-strength creep-resistant alloy steels. |
| Heat Treat Type | Normalize and Temper or Quench and Temper | Normalize and Temper | A key difference: P91 allows for the alternative of Quenching. |
| Normalizing Temperature | 1900-1975 °F [1040-1080 °C] | 1900-1975 °F [1040-1080 °C] | The austenitizing temperature range is identical. |
| Cooling Media | Air or Accelerated Cooling | Air | P91 allows for accelerated cooling. |
| Tempering Temperature | 1350-1470 °F [730-800 °C] | 1350-1470 °F [730-800 °C] | The tempering temperature range is identical. |
| P91: The maximum permissible tempering temperature is 1470 °F [800 °C]. |
Tensile Requirements Comparison: Grade P91 vs. P92
| Property | P91 (Type 1 and Type 2) | P92 | Notes |
| Grade | P91 | P92, P93, P911, P36 Class 1 | P92 shares its requirements with other advanced grades. |
| Tensile Strength, min | 85 ksi | 585 MPa | 90 ksi |
| Yield Strength (0.2% Offset), min | 60 ksi | 415 MPa | 64 ksi |
Application Advantages of ASTM A335 P91 & P92 Seamless Steel Tubes
1. Excellent High-Temperature Performance
The P91 and P92 chromium-molybdenum alloy composition provides outstanding high-temperature strength and oxidation resistance, making them ideal for supercritical and ultra-supercritical power plants operating at temperatures up to 650°C.
2 . Superior Creep Resistance
These tubes offer excellent long-term creep resistance under high-temperature and high-pressure conditions, ensuring reliable performance in boiler systems, heat exchangers, and high-temperature piping applications.
3 . Enhanced Durability and Service Life
With superior resistance to thermal fatigue and oxidation, P91 and P92 tubes maintain structural integrity over extended periods, reducing maintenance requirements and increasing the lifespan of power generation equipment.
4. Global Standard Compliance
Manufactured in full compliance with ASTM A335/ASME SA335 international standards, these tubes are certified for use in critical applications worldwide, ensuring quality and safety across different markets.
5 . Wide Application Versatility
Suitable for various high-temperature environments, including power plant boilers, petrochemical processing units, and high-temperature pipeline systems, providing flexible solutions for diverse industrial needs.
