| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASME SB163 UNS N02201 |
| 最小注文数量: | 500kgs |
|---|---|
| 価格: | 交渉可能 |

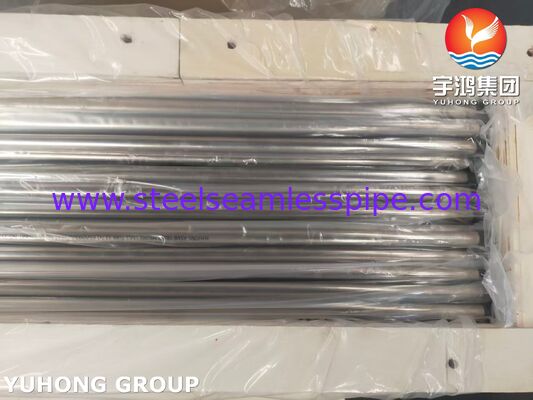

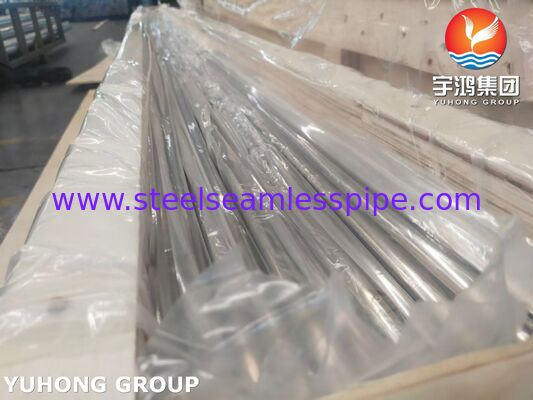

| パッケージの詳細: | プラスチックキャップ付きのPly-woodenケース /アイアンケース /バンドル |
| 受渡し時間: | 15〜20日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 800 トン/月 |
| 標準: | ASME SB163 | 材料グレード: | N02201 (国連番号 N02201) |
|---|---|---|---|
| 製品タイプ: | シームレスチューブ | 材料: | 低炭素ニッケル合金 |
| アプリケーション: | 熱交換器、化学処理装置 | サイズ範囲: | カスタムサイズ |
| ハイライト: | ASME SB163 nickel alloy tube,UNS N02201 seamless nickel tube,low carbon nickel tube for heat exchangers |
||

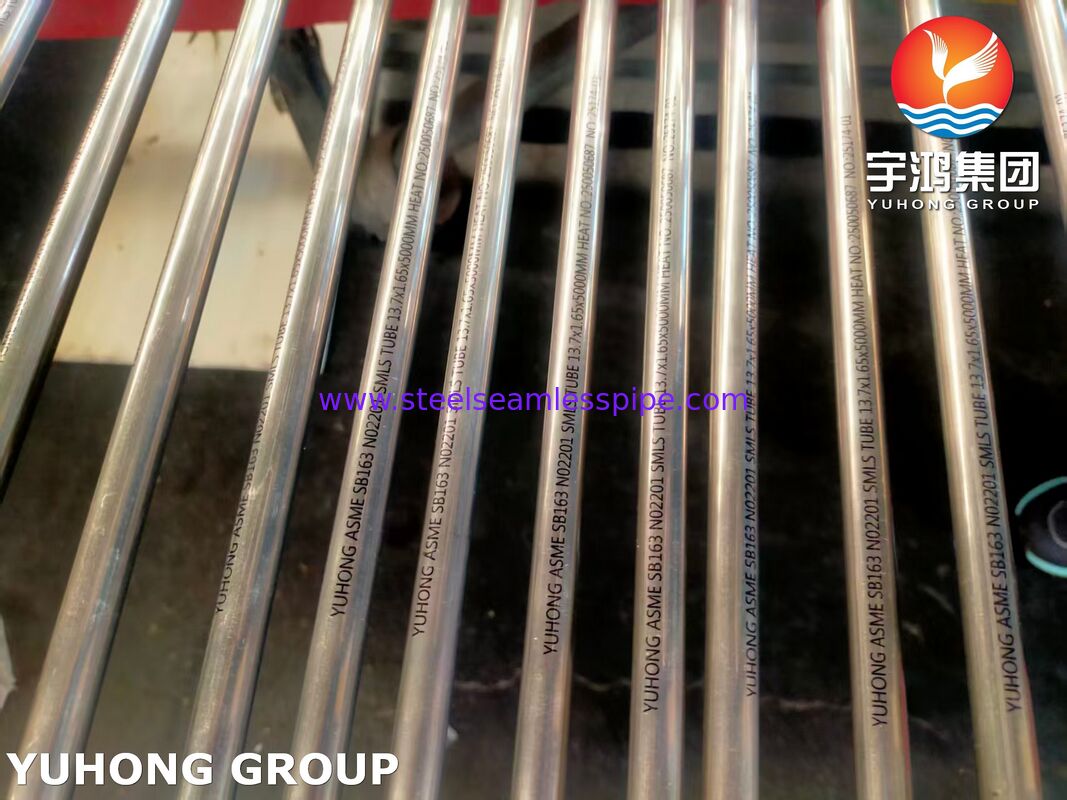

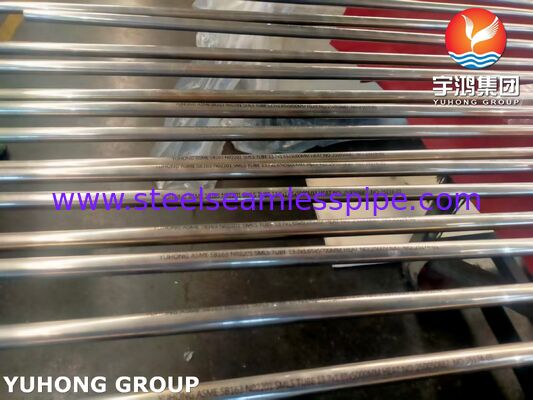

ASME SB163 UNS N02201 Seamless Low Carbon Nickel Tube for Heat Exchangers & Chemical Equipment
With over 35 years of industrial expertise and a global presence spanning 85 countries, YUHONG Group specialises in manufacturing precision-engineered nickel alloy tubes for critical applications. Our ASME SB163 UNS N02201 Seamless Low Carbon Nickel Tubes are manufactured to the highest international standards, delivering exceptional performance in heat exchangers and chemical processing equipment.
Chemical Composition of UNS N02201 (Nickel 201)
| Element | Requirement (%) | Notes |
| Nickel (Ni) | 99.0 min | Includes Cobalt |
| Copper (Cu) | 0.25 max | |
| Iron (Fe) | 0.40 max | |
| Manganese (Mn) | 0.35 max | |
| Carbon (C) | 0.02 max | Key difference from N02200 (0.15 max) |
| Silicon (Si) | 0.35 max | |
| Sulfur (S) | 0.01 max |
Specifications for Nickel Alloy UNS N02201 (Nickel 201)
| Parameter | Specification | Source / Notes |
| Alloy Common Name | Nickel 201 | Low-carbon commercially pure nickel |
| UNS Designation | N02201 | |
| Condition | Annealed or Stress-Relieved | Primary temper conditions for this alloy |
Mechanical Properties of Low-Carbon Nickel UNS N02201 (Nickel 201) Tubing
| Property | Annealed Condition | Stress-Relieved Condition | Notes |
| Material and Condition | Low-carbon nickel UNS N02201: Annealed | Low-carbon nickel UNS N02201: Stress-relieved | |
| Tensile Strength, min | 50 ksi (345 MPa) | 60 ksi (414 MPa) | |
| Yield Strength (0.2 % Offset), min | 12 ksi (83 MPa) | 30 ksi (207 MPa) | |
| Elongation in 2 in. or 50 mm, min | 40% | 15% | |
| Rockwell Hardness for annealed ends | ... | B62 max | Applies only to the annealed ends of stress-relieved tubing |
ASME SB163 UNS N02201 Seamless Low Carbon Nickel Tube - Key Application Advantages
1. Excellent Corrosion Resistance
Demonstrates outstanding resistance to various corrosive media, including caustic alkalis and high-temperature halogens, making it ideal for chemical processing equipment.
2 . Good High-Temperature Performance
Maintains structural integrity and oxidation resistance at elevated temperatures up to 600°C, making it suitable for use in heat exchangers and furnace components.
3 . Excellent Low-Temperature Toughness
Retains good ductility and mechanical properties in cryogenic applications, down to -196°C.
3. Superior Surface Quality
The seamless manufacturing process ensures smooth internal surfaces that minimise fluid resistance and fouling in heat transfer applications.
4 . Easy Fabrication & Welding
Exhibits good formability and can be welded using common methods without post-weld heat treatment, simplifying installation and maintenance.
5 . Long Service Life & Cost Efficiency
The combination of corrosion resistance, temperature stability, and mechanical strength ensures extended service life with minimal maintenance requirements.
