| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO13485: 2016 |
| モデル番号: | 10G～34G |
| 最小注文数量: | 30 kg |
|---|---|
| 価格: | 交渉可能 |

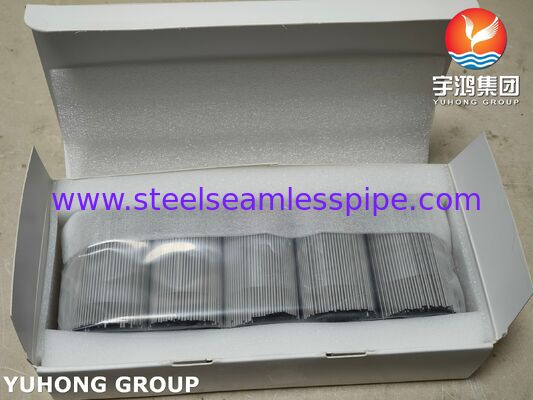

| パッケージの詳細: | カートンボックス、プラスチックボックス、合板ケース |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 年間130億個 |
| 仕様: | ISO9626：2016 | 原材料: | SUS304 |
|---|---|---|---|
| 応用: | 薄い壁 | 外径: | 14G-26G |
| 長さ: | 必要に応じて | 針の先端: | 三面取りチップ、バックカットチップ |
| ハイライト: | SUS304 medical stainless steel needle tube,17G triple bevelled IV cannula needle,ISO9626 compliant needle tube for IV |
||
SUS304 17G TW Triple bevelled Medical Stainless Steel Needle Tube For IV Cannula ISO9626

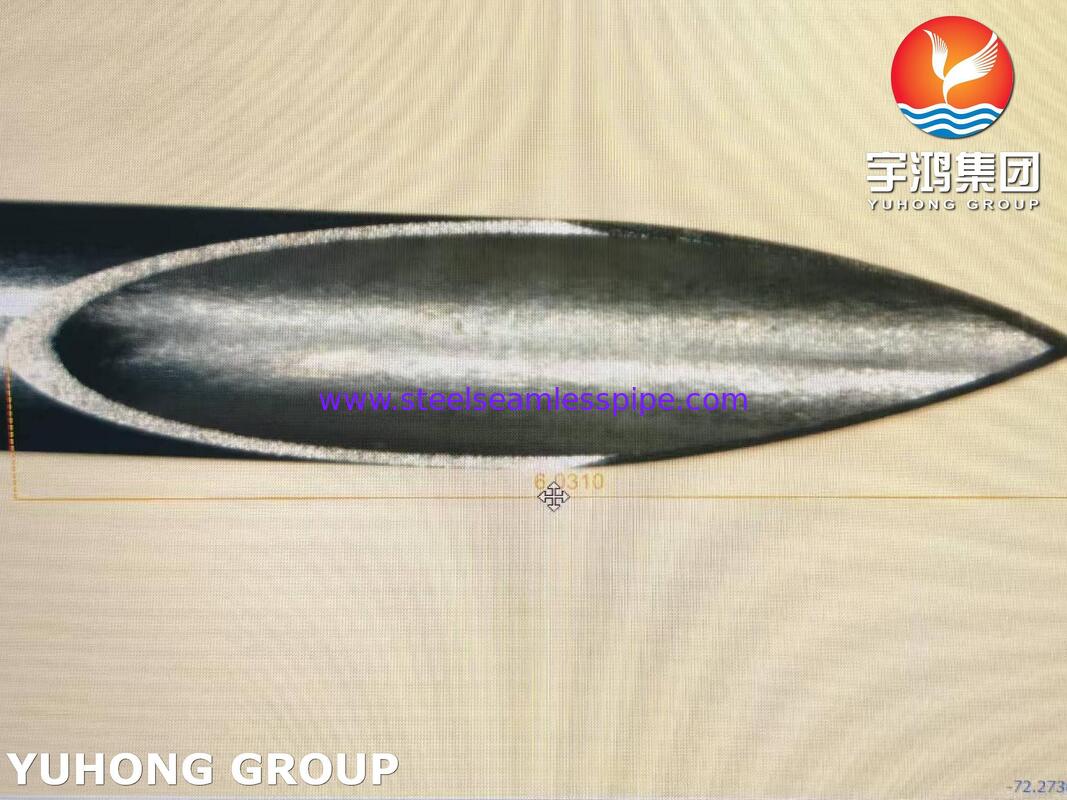

A SUS304 Triple-Bevelled Medical Grade Stainless Steel Needle Tube is a precision-engineered hollow cannula used as the introducer needle within an intravenous (IV) cannula assembly. It is manufactured from medical-grade SUS304 (equivalent to AISI 304) stainless steel and features a distinctive triple-bevel (three-facet) ground tip geometry. This needle tube is designed to penetrate the skin, subcutaneous tissue, and venous wall with minimal trauma, after which the outer plastic catheter is advanced into the vein and the needle is withdrawn.
YUHONG GROUP is one of the leading manufacturer of medical grade stainless steel needle tubes in China and we produce more than 13 billion pieces per year. There are various kinds of needle tubes that we can customize, such as injection needle tube, hypdermic needle tube, IV needle tube, blood collection needle tube, and so on. All the dimensions of needle tubes are complied with ISO9626 standard.
Chemical Composition:
| Element | Composition (%) – Medical Grade SUS304 |
| Carbon | ≤ 0.07 |
| Manganese | ≤ 2.00 |
| Phosphorus | ≤ 0.040 |
| Sulfur | ≤ 0.015 |
| Silicon | ≤ 1.00 |
| Chromium | 18.00 – 20.00 |
| Nickel | 8.00 – 10.50 |
| Nitrogen | ≤ 0.10 |
| Iron | Balance |
Key Features of SUS304 IV Cannula:
Different Needle Points of IV Needle Tube:
| Needle Point Type | Description | Application in IV Cannula |
| Triple-Bevel (Three Facet) | Central lancet point with two additional side bevels. | Standard for most peripheral IV cannulas |
| Short-Bevel (Single Bevel) | Steep angle (18°–20°), single cut. | Rare in IV; used for blood collection or arterial lines. Too traumatic for veins. |
| Long-Bevel (Single Bevel) | Shallow angle (12°–14°), single cut. | Older IV needle designs; more likely to core tissue. |
| Diamond or Pencil Point | Multiple bevels forming a tip. | Occasionally used for spinal or epidural needles, not standard for IV. |
| Back-Cut Bevel | Secondary bevel on the heel (not the tip). | Reduces heel grab during septum punctures; seen in some safety IV catheters. |
Different Applications of Stainless Steel Tri-Bevelled Needle Tube:
