| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO, TUV, PED etc. |
| モデル番号: | Astm A179の熱交換器の管 |
| 最小注文数量: | 治療部位により異なります |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース/鉄ケース/プラスチックキャップ付きバンドル |
| 受渡し時間: | 数量により異なります |
| 支払条件: | T/T、L/C を確認できます |
| 供給の能力: | 月産5000トン |
| 材料: | 低炭素鋼 | 標準: | ASTM A179 / ASME SA179 |
|---|---|---|---|
| 製品タイプ: | 熱交換器チューブ | 製造工程: | 冷たく描かれたシームレス |
| 表面仕上げ: | 黒塗装/オイル仕上げ | 検査: | 第三者による検査が可能 |

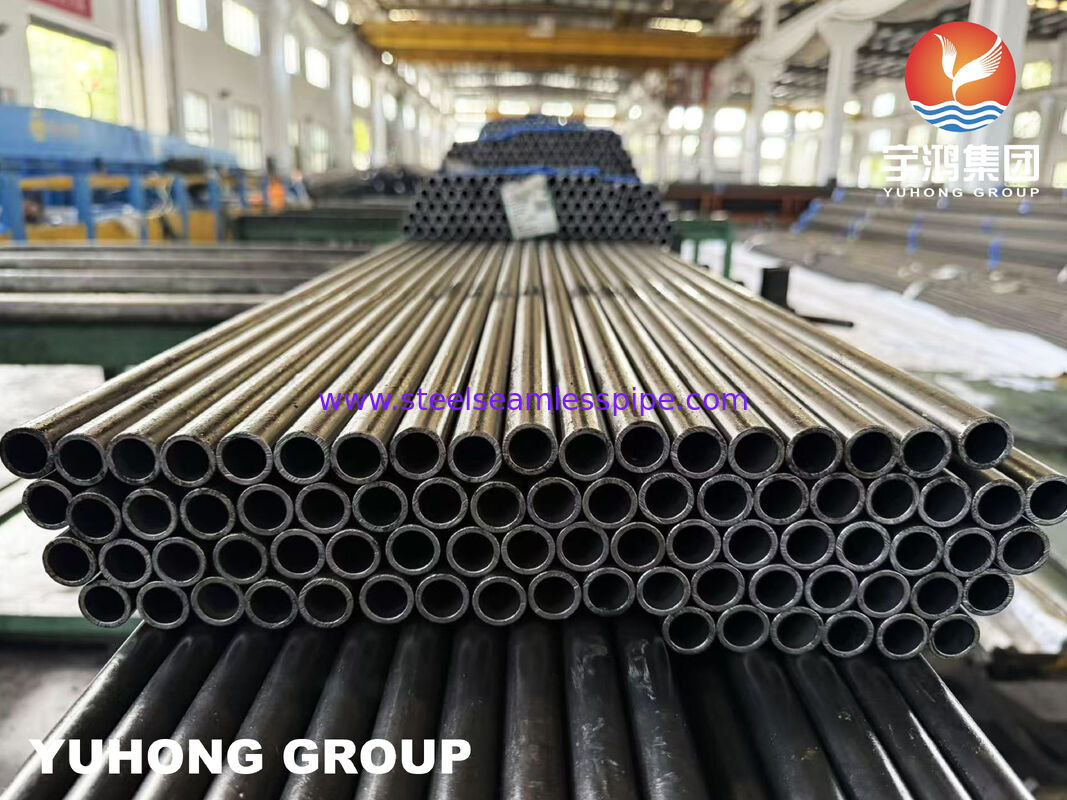

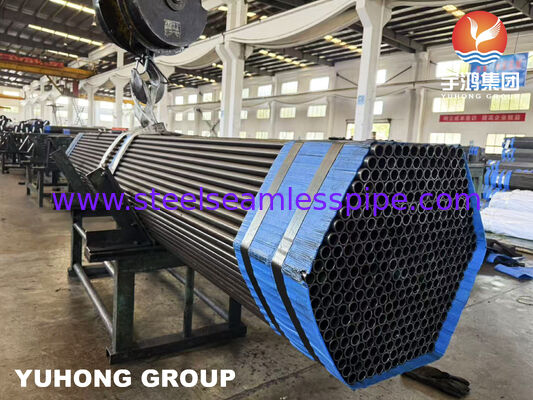

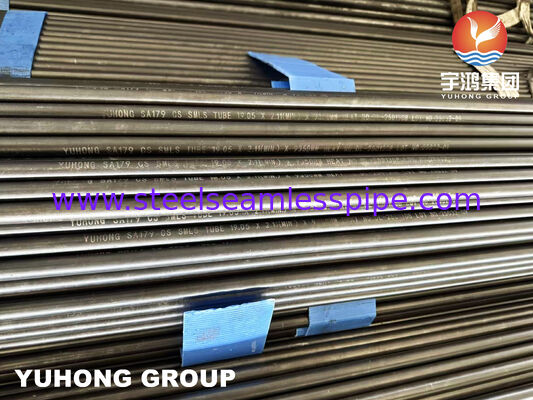

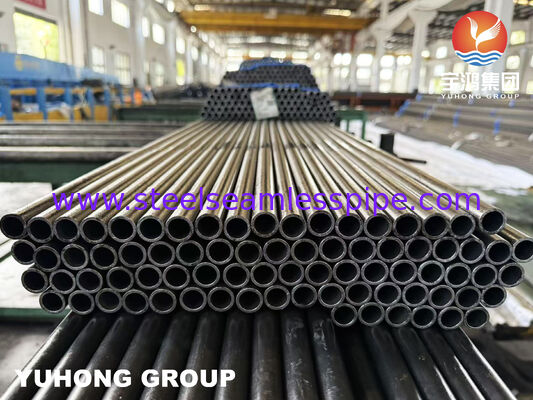

ASTM A179 Seamless Heat Exchanger Tube | SA179 Carbon Steel Boiler & Condenser Tube
Product Overview
ASTM A179 / ASME SA179 seamless heat exchanger tubes are low carbon steel cold drawn tubes designed for heat transfer equipment such as heat exchangers, condensers, boilers, and similar thermal processing systems.
Manufactured through seamless cold drawing technology, A179 tubes provide stable dimensional consistency, uniform wall thickness, and reliable surface quality for industrial heat transfer applications. Compared with welded tubes, seamless construction helps reduce welding-related leakage risks and improves reliability under continuous thermal cycling conditions.
|
Item |
Specification |
|---|---|
|
Standard |
ASTM A179 / ASME SA179 |
|
Material |
Low Carbon Steel |
|
Product Type |
Seamless Heat Exchanger Tube |
|
Manufacturing Process |
Cold Drawn Seamless |
|
Tube Type |
CS SMLS Tube |
|
Outside Diameter |
12.7 mm – 76.2 mm |
|
Typical OD |
19.05 mm |
|
Wall Thickness |
1.0 mm – 6.0 mm |
|
Typical WT |
1.65 / 2.11 mm (Min.) |
|
Length |
Up to 26,000 mm |
|
Typical Length |
6096 mm (20 ft) |
|
Surface Finish |
Black / Oiled / Pickled |
|
Tube Ends |
Plain End |
|
Heat Treatment |
Annealed |
|
Testing |
ET / UT / Hydro Test |
|
Application |
Heat Exchanger / Condenser / Boiler |
ASTM A179 tubes are manufactured from low carbon steel material suitable for efficient heat transfer and industrial thermal processing systems.
The seamless cold drawn process helps improve:
Dimensional consistency
Wall thickness stability
Surface finish quality
Tube bending performance
Expansion and fabrication capability
The low carbon composition also supports:
Good machinability
Easier tube forming
Stable welding compatibility
Reliable performance in continuous heat transfer systems
Seamless Cold Drawn Construction
A179 tubes are produced using seamless cold drawing technology, which helps maintain stable dimensional tolerance and improve concentricity compared with standard welded tubing.
This structure is particularly suitable for:
High-density heat exchanger bundles
Long-length condenser systems
Continuous steam circulation equipment
|
Property |
ASTM A179 Requirement |
|---|---|
|
Tensile Strength |
≥ 325 MPa |
|
Yield Strength |
≥ 180 MPa |
|
Elongation |
≥ 35% |
|
Hardness |
≤ 72 HRB |
These mechanical properties support:
Tube expansion processing
Heat exchanger fabrication
Continuous thermal cycling operation
Heat Exchangers
Widely used in shell and tube heat exchanger systems for industrial heat transfer applications.
Condensers
Suitable for condenser equipment requiring stable fluid flow and reliable thermal conductivity.
Industrial Boilers
Used in low-pressure boiler systems and thermal processing equipment.
Petrochemical Industry
Applied in refinery and chemical processing systems involving continuous thermal exchange.
HVAC Systems
Used in commercial and industrial cooling and heating equipment.
A179 seamless heat exchanger tubes can be supplied with:
Eddy Current Testing (ET)
Ultrasonic Testing (UT)
Hydrostatic Testing
Dimensional Inspection
Surface Quality Inspection
Material Chemical Analysis
These inspections help verify:
Wall thickness consistency
Surface integrity
Leak resistance
Dimensional accuracy
Product Advantages
|
Feature |
Technical Benefit |
|---|---|
|
Seamless Structure |
Reduces welding defect risks |
|
Cold Drawn Process |
Improves dimensional consistency |
|
Low Carbon Steel |
Supports forming and fabrication |
|
Uniform Wall Thickness |
Enhances heat transfer stability |
|
Long Tube Length |
Reduces connection points |
|
Annealed Condition |
Improves bending and expansion performance |
Available Customization
We can supply ASTM A179 tubes with customized:
Tube length
Outer diameter
Wall thickness
Surface treatment
Packing method
Inspection requirements
Optional documentation:
EN 10204 3.1 MTC
Third-party inspection
Heat treatment report
NDT reports
Frequently Asked Questions (FAQ)
What is ASTM A179 tube used for?
ASTM A179 tubes are mainly used in heat exchangers, condensers, and low-pressure boiler systems requiring efficient heat transfer and stable dimensional performance.
What is the advantage of seamless heat exchanger tubes?
Seamless tubes help reduce welding-related defects and improve wall thickness consistency, making them suitable for continuous thermal processing applications.
Is ASTM A179 suitable for boiler systems?
Yes. ASTM A179 tubes are commonly used in low-pressure boiler and thermal transfer systems due to their cold drawn seamless structure and heat transfer capability.
Can A179 tubes be customized?
Yes. Tube dimensions, lengths, testing standards, and surface conditions can be customized according to project requirements.
