| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| モデル番号: | EN10216-2 P235GH TC1 |
| 最小注文数量: | 治療部位により異なります |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース/鉄ケース/プラスチックキャップ付きバンドル |
| 受渡し時間: | 数量に依存します |
| 支払条件: | LC、T/T |
| 供給の能力: | 月産1000トン |
| 製品名: | 炭素鋼U字管 | 仕様: | EN10216-2 |
|---|---|---|---|
| 材料: | p235gh | タイプ: | Uのくねり |
| テスト: | と、UT、HT、PT | 仕上げる: | 冷間仕上げ |
| サイズ: | カスタマイズされた | ||
| ハイライト: | P235GH carbon steel U tube,heat resistant pressure steel tube,EN10216-2 heat exchanger tube |
||

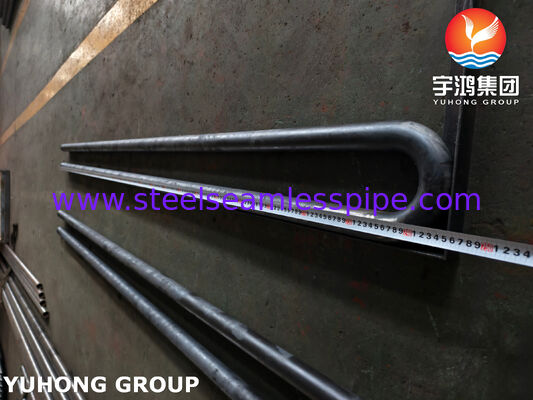

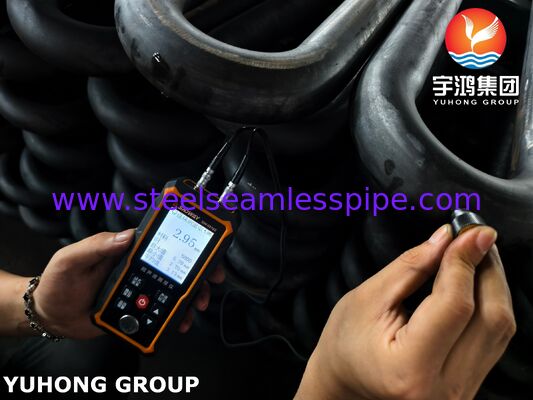

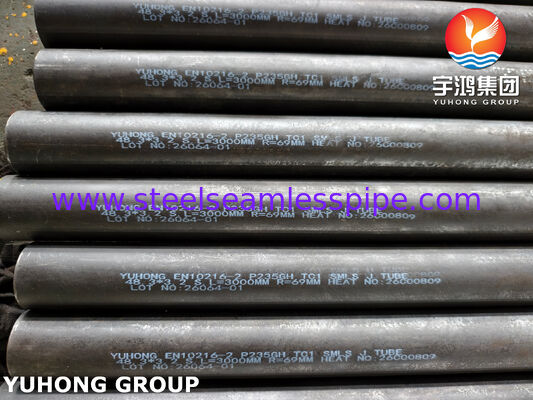

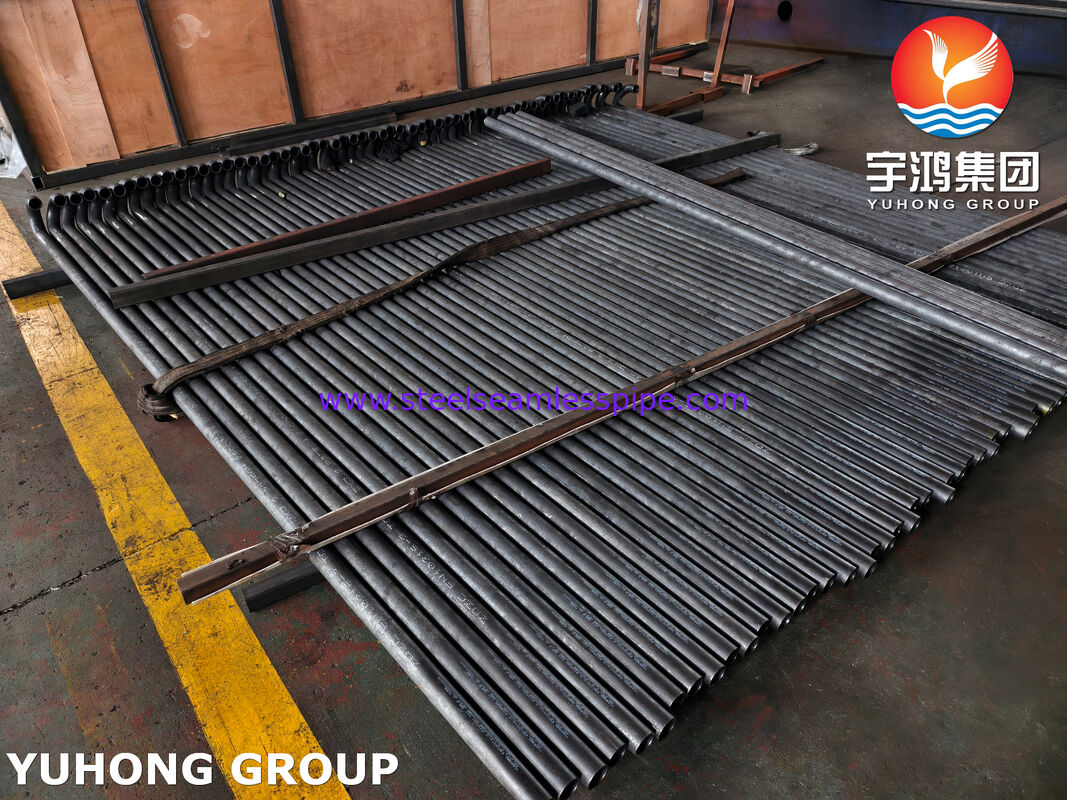

EN10216-2 P235GH TC1 Heat Resistant Non-alloy Pressure Carbon Steel U Tube
The EN10216-2 P235GH TC1 Heat Resistant Non-alloy Pressure Carbon Steel U-tube is a seamless steel tube product manufactured in accordance with the European standard EN 10216-2 — Seamless Steel Tubes for Pressure Purposes — Technical Delivery Conditions — Part 2: Non-Alloy and Alloy Steel Tubes with Specified Elevated Temperature Properties. It is made of P235GH heat-resistant non-alloy quality steel (European steel number 1.0345), specifically designed for pressure-bearing applications such as steam boilers, pressure vessels, heat exchangers, and high-temperature piping systems.
In the material designation, “P” denotes pressure purpose, “235” indicates a minimum yield strength of 235 MPa when the wall thickness is 16 mm or less, and “GH” signifies specified elevated temperature properties. TC1 stands for Test Category 1, meaning that the material has been subjected to specific non-destructive tests (such as ultrasonic testing, X-ray examination, and visual inspection) during manufacture to ensure its suitability for pressure vessel applications. The product is formed into a U-bend configuration through tube bending. The applicable temperature range is approximately 200°C to 400°C, with a maximum of about 450°C. The U-tube configuration effectively accommodates thermal expansion stresses, making it particularly suitable for shell-and-tube heat exchangers and other applications requiring thermal displacement compensation.
1.Chemical & Mechanical Properties
| EN10216-2 P235GH TC1 Chemical Composition (%) |
|||||||||
|
C |
Si |
Mn |
P |
S |
Mo |
Ni |
Cr |
Cu |
Others |
| ≤0.16 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.01 | ≤0.08 | ≤0.30 | ≤0.30 | ≤0.30 | Al ≤0.02 Ti ≤0.04 Nb ≤0.02 V ≤0.02 |
*Cr+Cu+Mo+Ni ≤0.70
Mechanical Properties
| Tensile properties at room temperature | Impact properties | |||||||
| Upper yield strength or proof strength ReH or Rp0.2 for wall thickness T min. |
Tensile strength Rm |
Elongation A min. [%] |
Minimum average absorbed energy KV2 [J] at a temperature of [℃] |
|||||
| T ≤ 16 | 16 ＜ T ≤ 40 | 40 ＜ T ≤ 60 | MPa | I | t | l | t | |
| MPa | MPa | MPa | 0 | -10 | 0 | |||
| 235 | 225 | 215 | 360 – 500 | 25 | 23 | 40 c | 28 d | 27 c |
2. Key Advantages
3. Tolerance
| Outside Diameter D [mm] |
Tolerances on D |
Tolerances on T for a T/D ratio | |||
| ≤0.025 | ＞0.025 ≤0.050 | ＞0.050 ≤0.10 | ＞0.10 | ||
| D ≤ 219.1 | ±1 % or ±0.5 mm whichever is the greater | ±12.5 % or ±0.4 mm whichever is the greater | |||
| D ＞ 219.1 | ±20 % | ±15 % | ±12.5 % | ±10 %* | |
| Tolerances on inside diameter | Tolerances on T for a T/D ratio | ||||
| d | dmin | ≤0.03 | ＞0.03 ≤0.06 | ＞0.06 ≤0.12 | ＞0.12 |
| ±1 % or ±2 mm whichever is the greater | 0 – +2 % or 0 – +4 mm whichever is the greater | ±20 % | ±15 % | ±12.5 % | ±10 %* |
| Outside Diameter D [mm] |
Tolerances on D |
Tolerances on Tmin for a Tmin/D ratio | |||
| ≤0.02 | ＞0.02 ≤0.04 | ＞0.04 ≤0.09 | ＞0.09 | ||
| D ≤ 219.1 | ±1 % or ±0.5 mm whichever is the greater | 0 – +28 % or 0 – 0.8 mm whichever is the greater | |||
| D ＞ 219.1 | 0 – +50 % | 0 – +35 % | 0 – +28 % | 0 – +22 %* | |
| Tolerances on inside diameter | Tolerances on Tmin for a Tmin/D ratio | |||
| d | dmin | ≤0.05 | ＞0.05 ≤0.1 | ＞0.1 |
| ±1 % or ±2 mm whichever is the greater | 0 – +2 % or 0 – +4 mm whichever is the greater | 0 – +50 % | 0 – +28 % | 0 – +22 %* |
*For outside diameters D ≥ 355.6 mm it is permitted to exceed the upper wall thickness locally by a further 5 % of the wall thickness T.
| Tolerance on D | Tolerance on T |
| ±0.5 % or ±0.3 mm whichever is the greater | ±10 % or ±0.2 mm whichever is the greater |
4. Key Applications
