| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B |
| モデル番号: | ASME SA213 T5,UNS K41545 |
| 最小注文数量: | 100KGS |
|---|---|
| パッケージの詳細: | 束、編まれた袋、合板の箱 |
| 受渡し時間: | 7日間 |
| 支払条件: | LC、T/T |
| 材料: | T1、T11、T12のT2、T22、T23、T5、T9、T91、T92 | 標準: | A213、SA213 |
|---|---|---|---|
| 応用: | Boilierの熱交換器 | 表面: | 黒い、油をさされる |

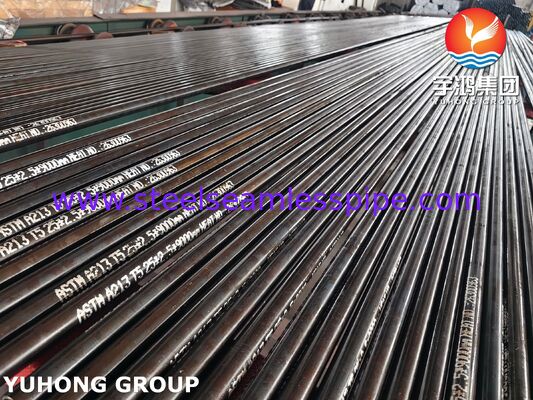

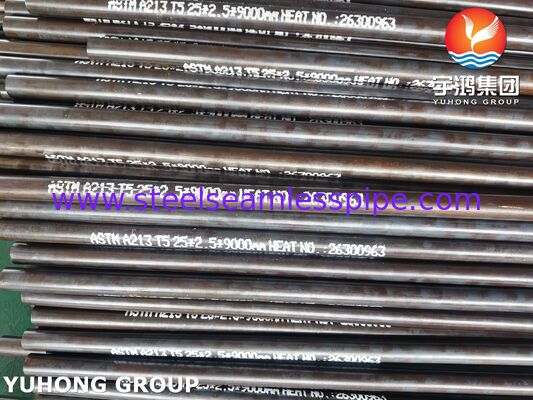

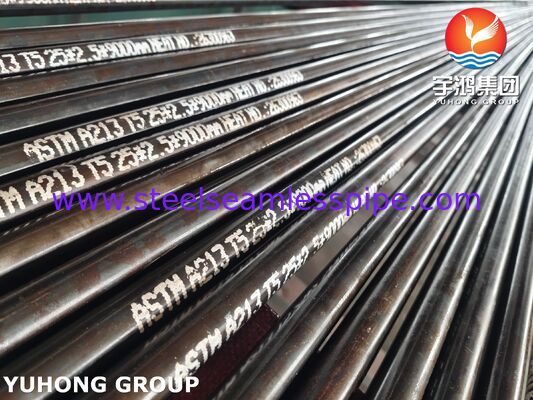

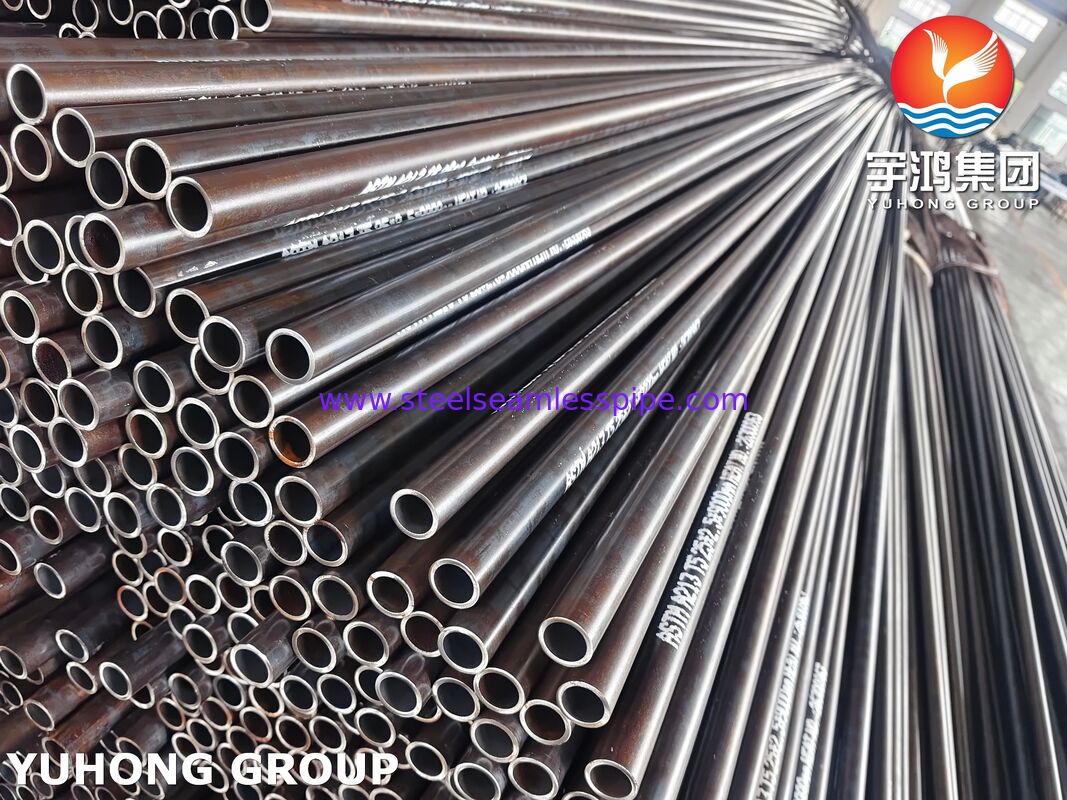

Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
A213 T5 tube is a specific type of seamless alloy steel tube manufactured according to the ASTM A213 standard, designed for high-temperature service in boilers, superheaters, and heat exchangers
Comparison with Other Grades:
SA213 T11: Similar to T5 but with slightly higher chromium content (1.00-1.50%) and lower molybdenum content (0.44-0.65%).
SA213 T22: Higher chromium (1.90-2.60%) and molybdenum (0.87-1.13%) content, offering better high-temperature strength and corrosion resistance.
SA213 T9: Higher chromium (8.00-10.00%) and molybdenum (0.90-1.10%) content, suitable for even more demanding high-temperature applications.
Standards and Certifications:
ASME SA213: Standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
ASTM A213: Equivalent to ASME SA213, used for the same applications.
Main Materials:
Chemical Composition
| Grade | C | Si | Mn | Cr | Mo | S | P |
| T5/UNS K41545 |
0.15Max |
1.00-2.00 | 0.30-0.60 | 4.00-6.00 | 0.45-0.65 | 0.025 | 0.025 |
ASTM A213 T5 has several international equivalents .
| Standard | Grade / Material |
| ASTM(Pipe) | A335 P5 |
| JIS | STBA25 |
| EN / DIN | X11CrMo5 |
| GOST | 15Ch5M |
| T5 Tube | T5b Tube | T5c Tube | |
| Tensile Strength | 415 Minimum | 415 Minimum | 415 Minimum |
| Yield Strength | 205 Minimum | 205 Minimum | 205 Minimum |
| Elongation | 30 Minimum | 30 Minimum | 30 Minimum |
| Hardness | 163 Maximum | 179 Maximum | 163 Maximum |
