| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| モデル番号: | TP405、TP409、TP410、TP430、TP439、TP444、TP446、TP441 |
| 最小注文数量: | 100kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30 - 60 勤務日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 月産1000トン |
| 仕様: | ASTM A268、ASME SA268 | 材質グレード: | TP405、TP409、TP410、TP430、TP439、TP444、TP446、TP441 |
|---|---|---|---|
| 外径: | 6.35-152.4mmまたは要求に応じて | 肉厚: | 0.5-25mmまたは要求に応じて |
| 1本あたりの長さ: | 6 メートル または オーダーメイド | 管の端: | プレーンエンド、bevelled end |
| 表面: | 酸洗焼鈍、光輝焼鈍など | タイプ: | シームレス、溶接 |
| ハイライト: | ASME SA268 TP410 stainless steel tube,1.4006 seamless tube for power generation,X12Cr13 stainless steel seamless tube |
||

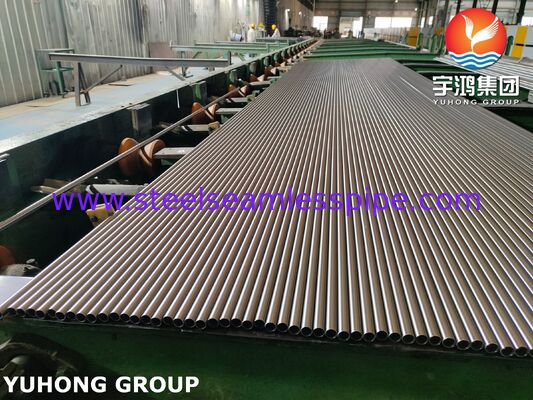

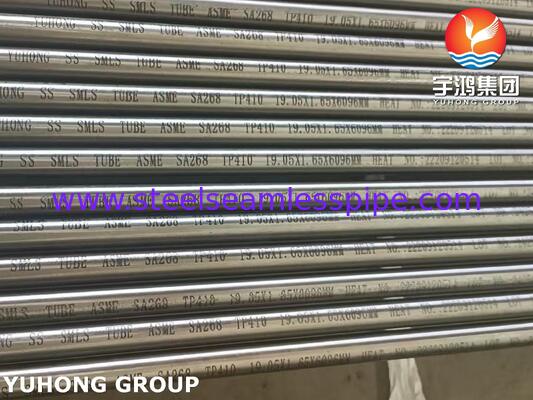

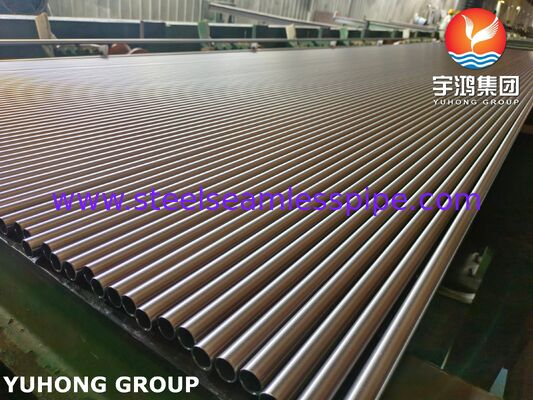

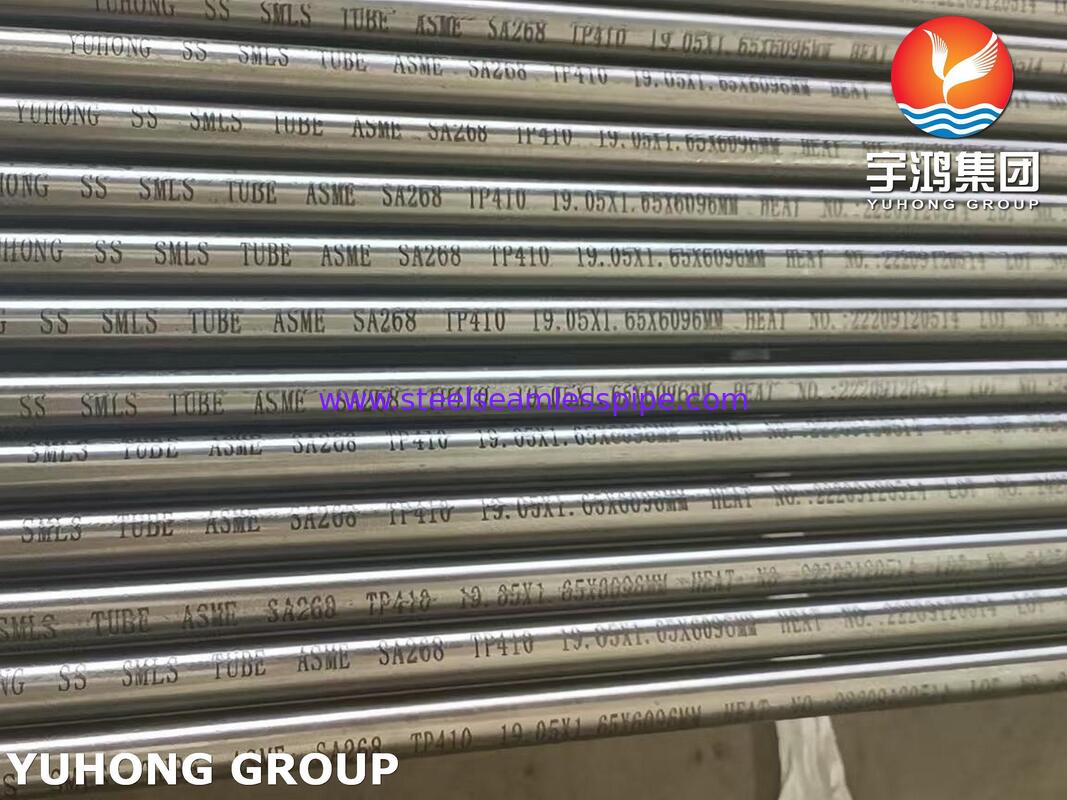

ASME SA268 TP410 / 1.4006 / X12Cr13 Stainless Steel Seamless Tube For Power Generation
ASTM A268/ASME SA268 TP410 is a welded or seamless stainless steel tube produced primarily for applications requiring moderate corrosion resistance, high mechanical strength, and resistance to scaling at elevated temperatures. TP410 corresponds to UNS S41000, the most widely used 12% chromium martensitic stainless steel grade. Different from austenitic 304/316 stainless steel, TP410 features a martensitic metallographic structure, which can be hardened via heat treatment. This seamless tube is produced through hot piercing and cold drawing processes without welding seams, ensuring integral structural uniformity, high pressure resistance and structural stability. It balances moderate atmospheric corrosion resistance, excellent high-temperature oxidation resistance, superior hardness and wear resistance, making it ideal for working conditions requiring mechanical strength, thermal stability and mild anti-corrosion performance, rather than extreme corrosive environments.
YUHONG GROUP is professional in producing ASTM A268/ASME SA268 TP405, TP409, TP410, TP430, TP439, TP444, TP446, TP441 ferritic and martensitic stainless steel tubes for more than 30 years. Our stainless steel tubes have been sold to 85 countries, like Mexico, South Africa, U.A.E, Saudi Arabia, Thailand, Australia, and so on. All steel tubes are passed strict inspections before the shipment.
Chemical Composition (Weight %):
| Grade | C | Mn | Si | P | S | Cr |
| TP410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 11.5-13.5 |
Mechanical Properties:
| Tensile Stress, Mpa | Yield Stress, MPa | Elongation, % | Hardness, HB |
| 415 min. | 205 min. | 20 min. | 207 max. |
Key Features of ASTM A268 TP410 Seamless Tubes:
Different Applications of ASTM A268 TP410 Stainless Steel Seamless Tubes:
