| 起源の場所: | 陶磁器、 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | B111 / SB111 C71500 |
| 最小注文数量: | 治療部位により異なります |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース/鉄ケース/プラスチックキャップ付きバンドル |
| 受渡し時間: | 数量により異なります |
| 支払条件: | T/T、L/C を確認できます |
| 供給の能力: | クライアントの要求に応じて |
| 標準: | ASTM B111、ASME SB111 | 材質グレード: | C71500 銅ニッケル合金 |
|---|---|---|---|
| 合金の種類: | 銅ニッケル70/30 | チューブタイプ: | シームレスチューブ |
| 表面: | 磨き 仕上げ 磨き | NDT: | ET、UT、静水圧試験 |
| ODサイズ: | カスタマイズされた | 応用: | 凝縮器、熱交換器、船舶用機器 |
| ハイライト: | ASTM B111 C71500 copper nickel alloy tube,seamless copper nickel alloy tube,heat exchanger copper nickel tube |
||

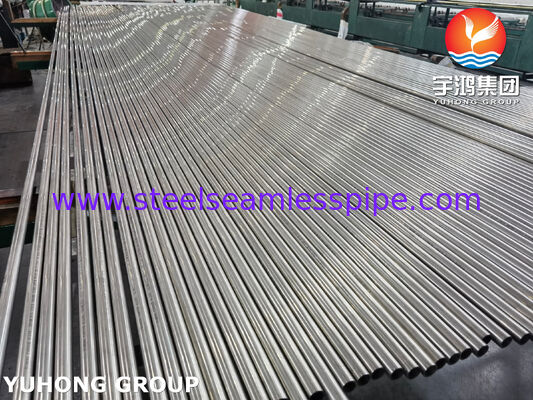

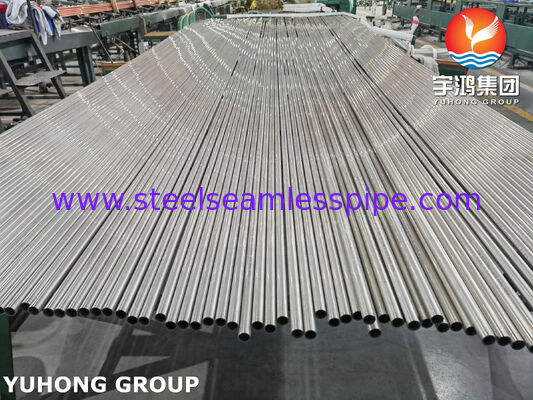

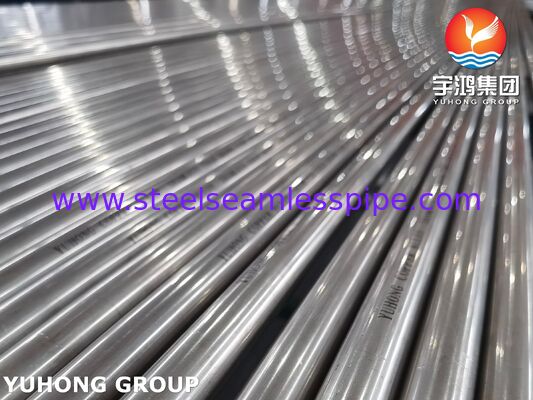

ASTM B111 C71500 copper nickel alloy seamless tube is a Cu-Ni 70/30 alloy tube designed for condenser, heat exchanger, and marine engineering applications.
Manufactured according to ASTM B111/B111M requirements, C71500 tubes are produced as seamless copper alloy tubes for thermal equipment including surface condensers, evaporators, and heat exchangers.
C71500 copper nickel alloy contains copper as the base material with nickel alloying elements, providing a material option for applications requiring copper alloy tube characteristics in industrial and marine environments.
Standard: ASTM B111 / ASME SB111
Material Grade: UNS C71500
Material Type: Copper Nickel Alloy
Common Designation: 70/30 Copper Nickel
Tube Type: Seamless Tube
C71500 is classified as a 70-30 copper-nickel alloy, commonly used for condenser and heat exchanger tube applications under ASTM B111 specifications.
Typical composition characteristics of C71500 copper nickel alloy include:
| Element | Composition |
|---|---|
| Copper (Cu) | Balance |
| Nickel (Ni) | Approx. 29-33% |
| Iron (Fe) | Controlled alloy element |
| Manganese (Mn) | Controlled alloy element |
The exact chemical composition shall comply with ASTM B111 requirements.
ASTM B111 C71500 seamless tubes are manufactured through controlled production processes:
Copper nickel alloy billets are prepared according to material requirements.
The billets are processed into preliminary tube forms through extrusion.
Cold drawing is applied to achieve specified outside diameter, wall thickness, and dimensional requirements.
Heat treatment, straightening, surface finishing, and inspection are performed according to applicable specifications.
C71500 combines copper and nickel alloy elements to provide a suitable material solution for condenser and heat exchanger tube applications.
The seamless manufacturing method provides uniform tube geometry without longitudinal weld seams.
C71500 tubes are commonly used in equipment where copper alloy tubes are required for heat transfer systems.
| Item | Specification |
|---|---|
| Product Name | ASTM B111 C71500 Copper Nickel Alloy Tube |
| Standard | ASTM B111 / ASME SB111 |
| Grade | UNS C71500 |
| Alloy Type | Copper Nickel 70/30 |
| Tube Type | Seamless Tube |
| Shape | Round Tube |
| Surface | Mill Finished / Polished |
| Application | Condenser, Heat Exchanger, Marine Equipment |
Typical supply parameters include:
| Parameter | Range |
|---|---|
| Outside Diameter | Customized |
| Wall Thickness | Customized |
| Length | Fixed Length / Customized |
| Temper | According to Specification |
| Surface Condition | Smooth / Customized |
Tube dimensions can be supplied according to equipment design requirements and customer specifications.
C71500 copper nickel tubes are commonly used in:
Applications include:
Typical applications include:
Inspection procedures may include:
Inspection requirements can be adjusted according to project specifications.
C71500 copper nickel alloy seamless tubes are packaged according to transportation and storage requirements.
Available packaging methods:

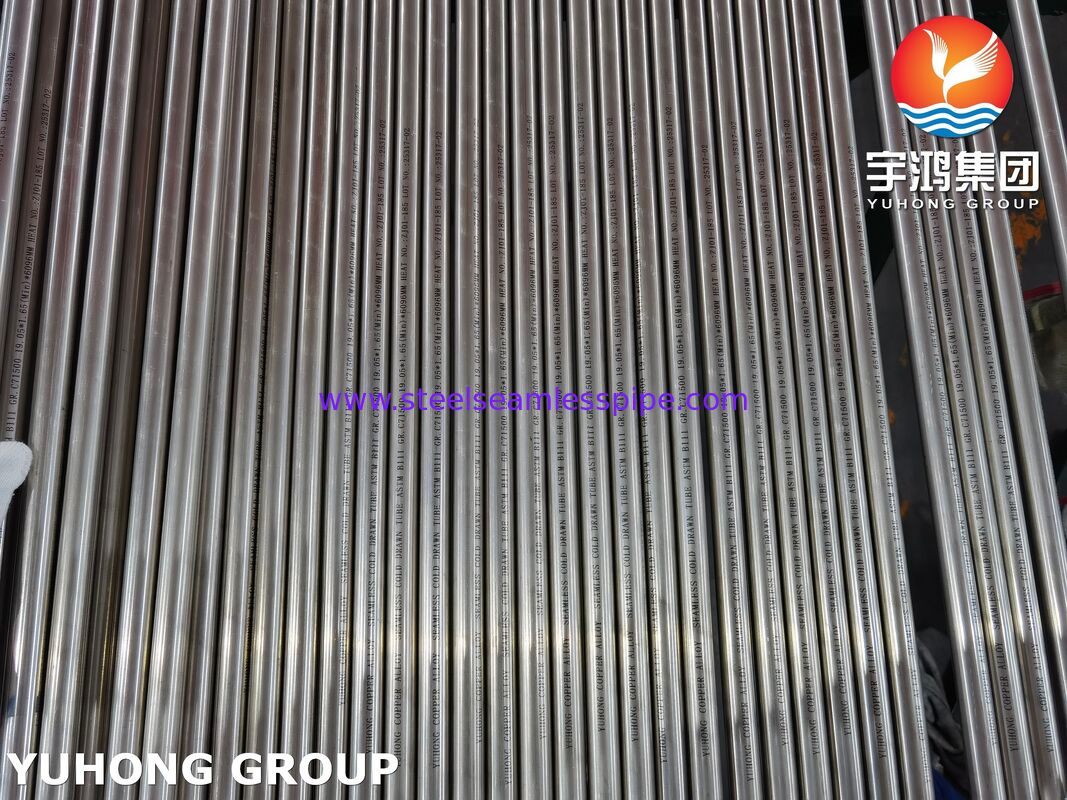

Tube marking can include:
