| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM A376 TP347H |
| 最小注文数量: | 100kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | プラスチック帽子/編まれた箱が付いている層木の場合の/Ironの場合の束 |
| 受渡し時間: | 数量に依存します |
| 支払条件: | L/C、T/T |
| 供給の能力: | 月額1000トン |
| 材料グレード: | ASTM A376 TP347H / ASME SA376 TP347H | 主要な応用: | スーパーヒーターチューブ /改質器チューブ /ボイラーシステム |
|---|---|---|---|
| テクノロジーの処理=: | 寒い描画 /ホットフィニッシュシームレス | 同等の基準: | UNS S34709、EN 1.4912、DIN X8CRNINB16-13 |
| ndtテスト: | 100％UT（超音波） +静水圧テスト | 認定コンプライアンス: | ASTM A376、ASME SA376、ISO 15510、NACE MR0175 |

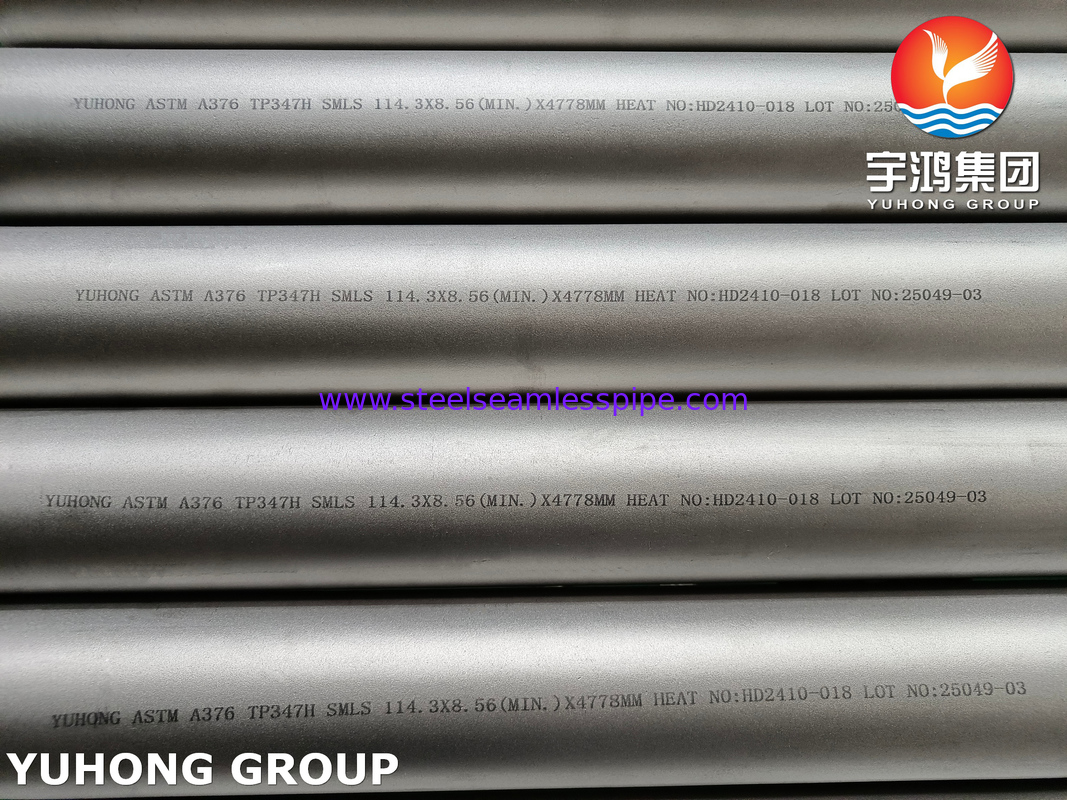

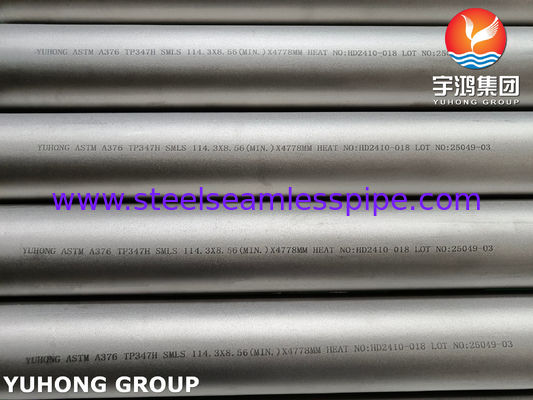

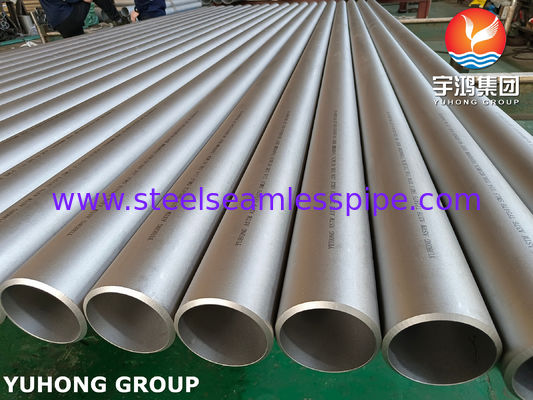

ASTM A376 TP347H seamless pipes are high-temperature austenitic stainless steel tubes stabilized with niobium (Nb). Engineered for superior creep resistance and oxidation resistance up to 815°C (1,500°F), they withstand extreme thermal cycling and corrosive environments. Compliant with ASTM A376 standards, these pipes are solution-annealed for optimal microstructural stability, making them ideal for critical high-pressure applications.
The niobium-stabilized chemistry prevents chromium carbide precipitation, enhancing intergranular corrosion resistance.

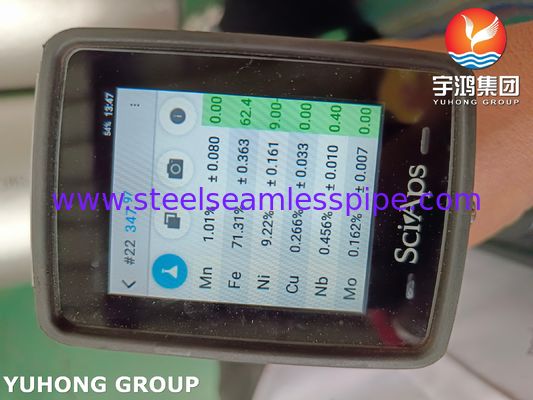

| Element | Min (%) | Max (%) |
|---|---|---|
| Carbon (C) | 0.04 | 0.10 |
| Chromium (Cr) | 17.0 | 20.0 |
| Nickel (Ni) | 9.0 | 13.0 |
| Niobium (Nb) | 8×C min | 1.10 |
| Manganese (Mn) | - | 2.00 |
| Silicon (Si) | - | 0.75 |
| Phosphorus (P) | - | 0.045 |
| Sulfur (S) | - | 0.030 |
| Iron (Fe) | Balance | Balance |
Globally recognized cross-standard designations:
| Standard | Equivalent Grade |
|---|---|
| UNS | S34709 |
| EN | 1.4912 |
| DIN | X8CrNiNb16-13 |
| JIS | SUS 347H TB |
| GB | 0Cr18Ni11Nb |
Post-solution annealing properties per ASTM A376:
| Property | Value |
|---|---|
| Tensile Strength | ≥515 MPa (75 ksi) |
| Yield Strength (0.2%) | ≥205 MPa (30 ksi) |
| Elongation (%) | ≥35% (50mm gauge length) |
| Hardness (Max) | 192 HB / 90 HRB |
| Test Temperature | Room Temperature (20°C) |
Manufactured to ASTM A376/A999 specifications:
| Parameter | Tolerance |
|---|---|
| Outer Diameter (OD) | ±0.75% for OD ≤ 48.3mm; ±0.50% for OD > 48.3mm |
| Wall Thickness | +20% / -12.5% |
| Length | +6mm / -0mm (for lengths ≤6m) |
| Straightness | 0.0015 × length (mm) |
Designed for critical thermal and corrosive environments:
Why Choose Our TP347H Seamless Pipes?
