| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO13485:2016 |
| モデル番号: | SUS304 |
| 最小注文数量: | 50 kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンボックス、プラスチックボックス、合板ケース |
| 受渡し時間: | 15-45就業日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 年間130億個 |
| 製品名: | 医学のステンレス鋼の毛管管 | キャピラリーチューブ標準: | ISO9626：2016（医療）、ASTM A269（産業） |
|---|---|---|---|
| 毛細管材料: | SUS304、AISI304、1.4301、x5crni18-9、06cr19ni10 | 毛細管の外径: | 0.15mm-3.4mm、または必要に応じて |
| 外径の許容度: | 通常、±0.005mmから±0.013mm以内 | 壁厚さの許容: | 通常、±0.005mmから±0.010mm以内 |
| 毛細管の長さ: | 2メートルまたは針チューブの長さにカットします | 毛細管の表面仕上げ: | 磨きました |

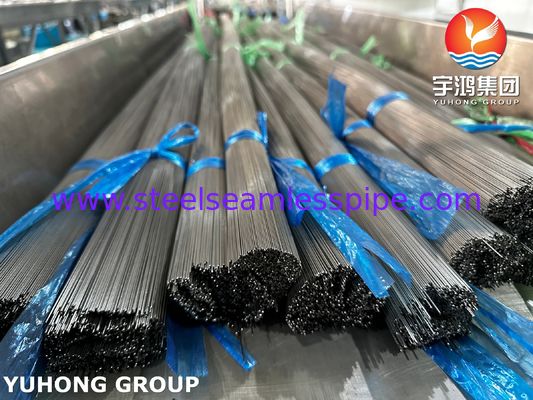

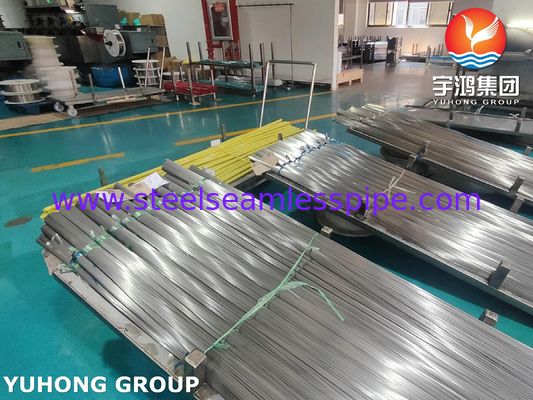

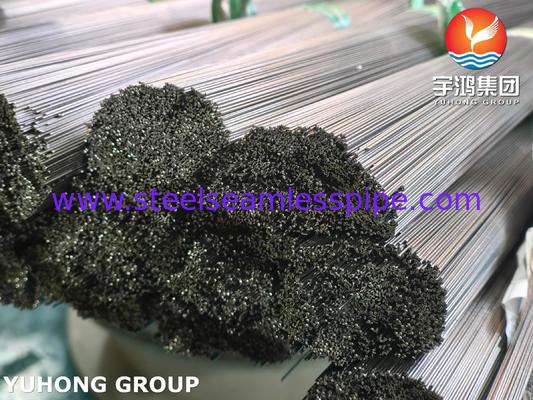

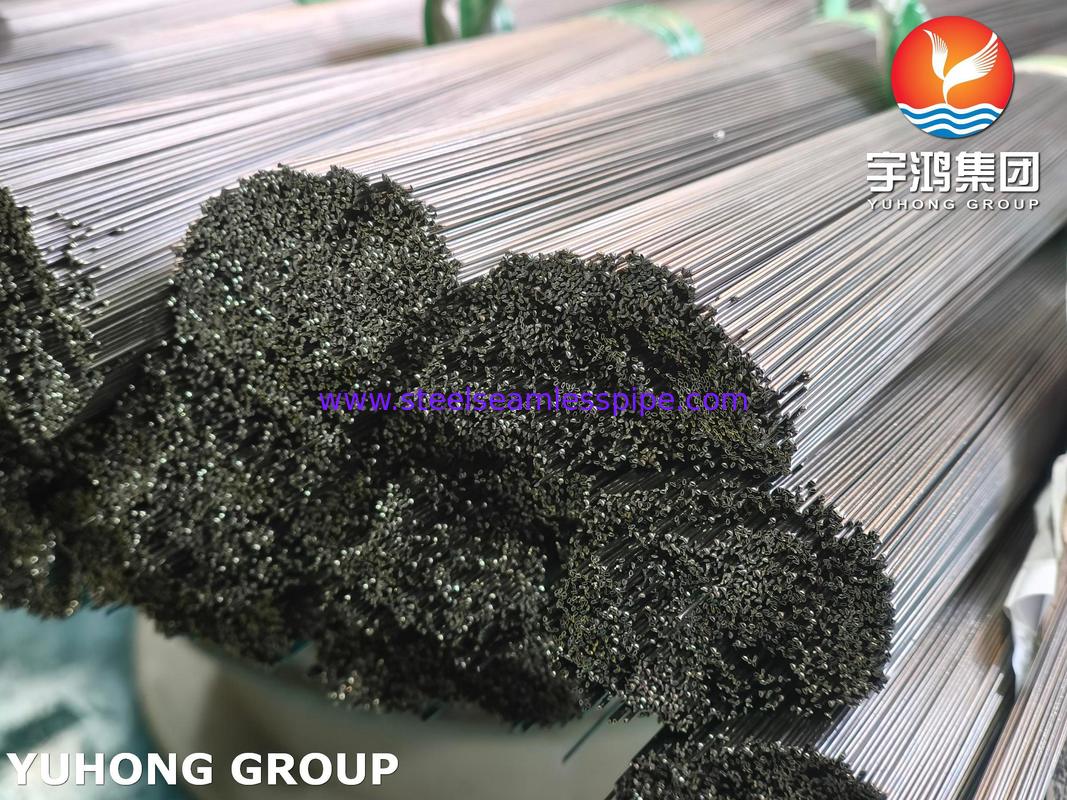

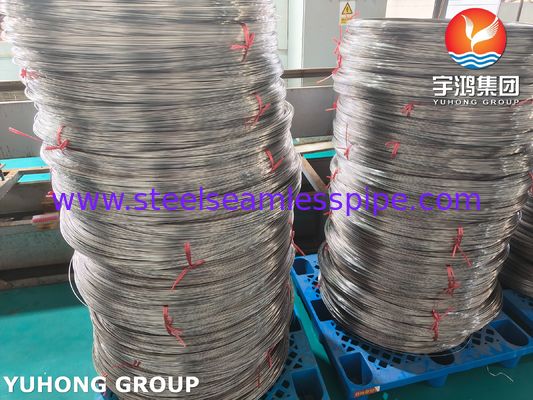

Medical Stainless Steel 304 Precision Capillary Tube For Hypodermic Needles ISO9626 1.4301
Medical grade stainless steel micro capillary tubes are small-diameter hollow high-precision tubes made from stainless steel 304 grade, which are usually used in medical devices and equipments, like injection needle tubes, infusion needle tubes, IV cannulas, catheters, etc.. These capillary tubes are known for their high precision, good durability, good formability, strength, and excellent resistance to corrosion. These stainless steel capillary tubes are not the final needle tubes but they are the essential raw material that medical needle tube manufacturers use. They are cold drawn to highly precise dimensions and undergo rigorous processing to ensure they meet the stringent demands of piercing human skin and delivering or extracting fluids safely.
Our company has manufactured stainless steel capillary tubes for more than 30 years, not only used for medical devices, but also for industrial applications. For medical use, these capillary tubes are usually cut into fixed needle tube length and ground with special bevel needle tips. Our medical capillary tubes are produced according to ISO9626 standard, which have tight dimensional tolerance and good surface. We can also provided based on clients’ detailed tolerance requirements.
Regular Sizes For Hypodermic Usage (Diameter, Wall Thickness, Length):
| Needle Gauge (G) | Outer Diameter (OD) | Common Wall Thickness (WT) | Inner Diameter (ID) |
| 18G | 1.27 mm | 0.20 mm | 0.87 mm |
| 21G | 0.82 mm | 0.13 mm | 0.56 mm |
| 23G | 0.64 mm | 0.11 mm | 0.42 mm |
| 25G | 0.51 mm | 0.08 mm | 0.35 mm |
| 27G | 0.41 mm | 0.07 mm | 0.27 mm |
| 30G | 0.31 mm | 0.06 mm | 0.19 mm |
Length: Capillary tubes are generally supplied in straight lengths, commonly ranging from 1 to 2 meters, which are then cut to the required needle length(18mm, 25mm, 30mm, 32mm, 45mm, etc.).
Key Features Of Medical Capilalry Tubes:
Different Applications Of Stainless Steel Capillary Tubes:
The stainless steel capillary tubes are ideal for numerous medical and non-medical applications:
1. Medical Applications:
2. Industrial & Non-Medical Applications:
