| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO13485:2016 |
| モデル番号: | 10g-34g |
| 最小注文数量: | 50 kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンボックス、プラスチックボックス、合板ケース |
| 受渡し時間: | 15-45就業日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 年間130億個 |
| IV留置針チューブ材料: | SUS304医療グレード | IV留置針チューブ仕様: | ISO9626、ISO7864 |
|---|---|---|---|
| IV留置針チューブゲージ: | 通常、14g、16g、18g、20g、22g、24g、26g | IV留置針チューブの長さ: | 16mm、19mm、25mm、32mmなど |
| IV留置針チューブ表面: | 磨きました | IV留置針チューブポイント: | トライベール付きバックカットポイント |
| 生産環境: | 100,000のクラスクリーニングルーム | アプリケーション: | 静脈内療法（薬、栄養、化学療法など）、血液サンプリングなど。 |
| ハイライト: | SUS304 indwelling needle tube,24G intravenous therapy needle,tri-bevelled back-cut needle tube |
||

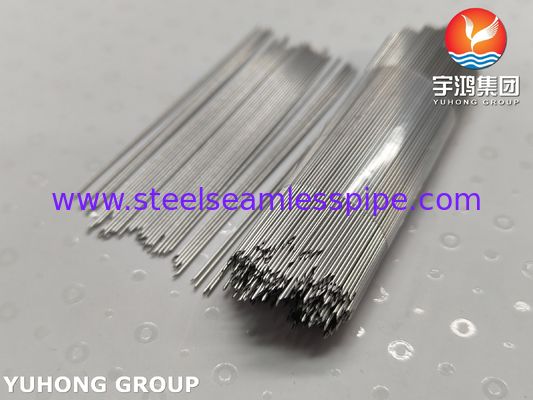

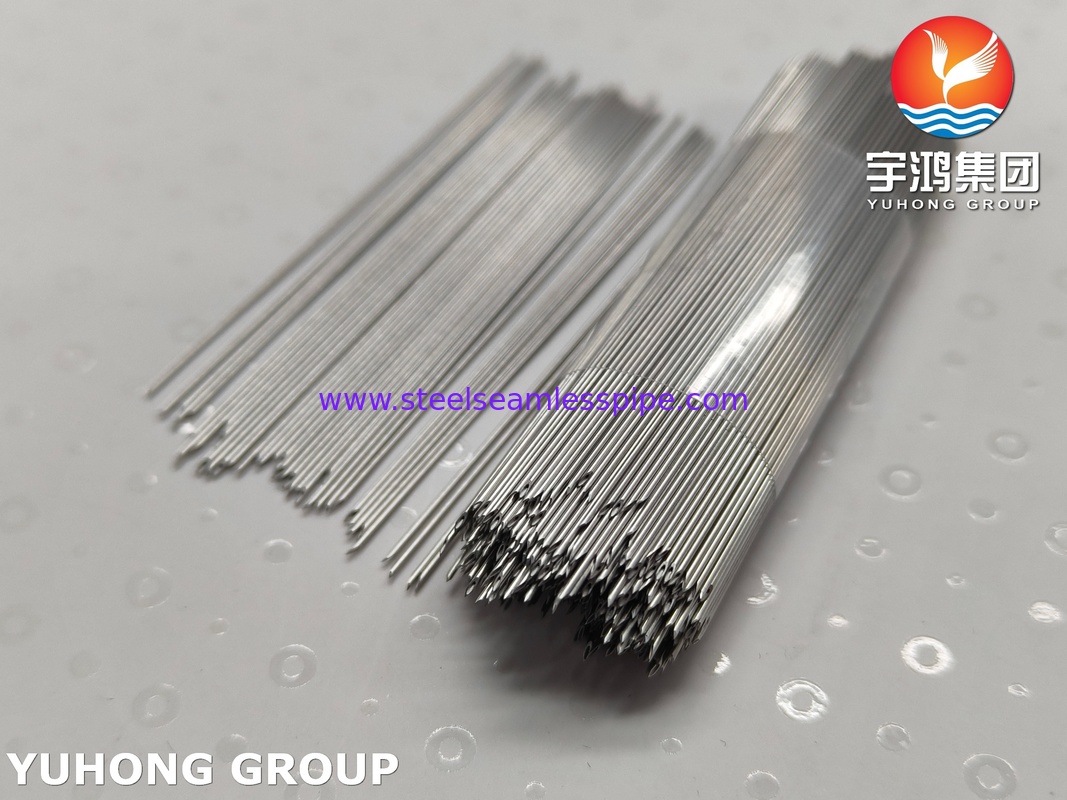

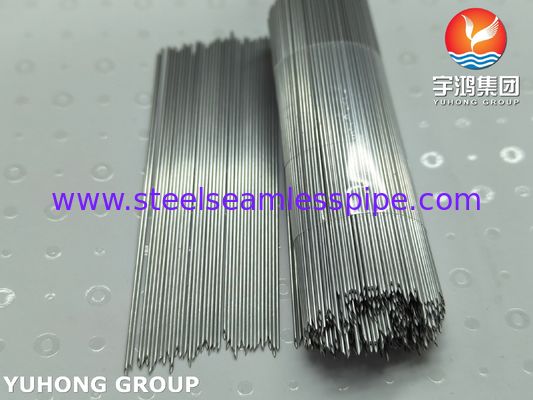

SUS304 24G Indwelling Needle Tube For Intravenous Therapy , Tri-bevelled Back-cut Tip
Intravenous Indwelling Needle Tubes are one of the most common needle tubes in the medical therapy. It is typically mounted over a solid needle core or inside a plastic catheter hub assembly to form a complete IV catheter set. This needle tube is made by medical-grade stainless steel 304 grade due to the material’s good corrosion resistance and formability. This indwelling needle tube is a specific component of an intravenous (IV) cannula or catheter. It is a sharp, hollow stainless steel needle that is inserted into a patient's vein to facilitate the placement of a flexible plastic cannula. Once the plastic cannula is correctly positioned in the vein, this needle is withdrawn and discarded, leaving the soft catheter in place for fluid or medication administration. The Tri-bevelled Back-cut Tip provides a sharp, clean, and minimally traumatic puncture into a vein and helps the venepuncture more smooth and easier. The typical gauge sizes of intravenous indwelling needle tubes are 14G - 26G. If clients have special size requirements, we can also customize based on their samples or drawings.
YUHONG GROUP has numerous years experience in the production of a diverse product range including stainless steel needle tubes and capillary tubes for a variety of medical devices. If you have relevant requirements about our needle tubes, welcome to send us inquiries.
For accurate quote, please provide below information:
Regular Sizes and applications:
| Gauge | OD | WT | Typical Length | Applications |
| 14G | 2.10 mm | ~0.20 mm | 45 - 50 mm | In massive trauma situations. |
| 16G | 1.65 mm | ~0.15 mm | 45 - 50 mm | Trauma,surgeries,or multiple large-volume infusions |
| 18G | 1.25 mm | ~0.10 mm | 40 - 45 mm | Blood transfusion, large volume infusions. |
| 20G | 0.90 mm | ~0.075 mm | 32 - 38 mm | Medications,hydration,and routine therapies |
| 22G | 0.70 mm | ~0.075 mm | 25 - 32 mm | Most chemotherapy infusions; For patients with smallveins, for elderly or pediatric patients |
| 24G | 0.55 mm | ~0.075 mm | 19 - 25 mm | For patients with very fragile veins, for elderly or pediatric patients |
Key Features Of IV Indwelling Needle Tubes:
Injection/Insertion Areas:
The indwelling needle tube is used to access peripheral veins.
Common insertion sites include:
