| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | DNV, BV, PED, LR, ABS, TS, CCS |
| 最小注文数量: | 200-500kgs |
|---|---|
| 価格: | 交渉可能 |

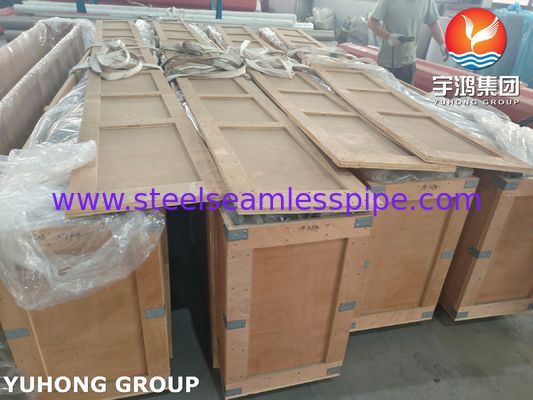

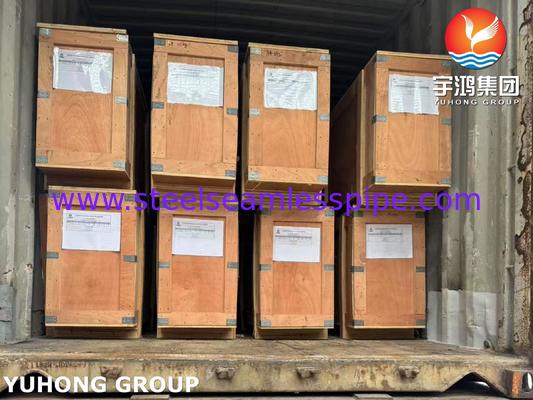

| パッケージの詳細: | スチールフレームを備えたPly-woodenケース（パイプの両端にはプラスチックキャップがあります） |
| 受渡し時間: | 45〜75日（顧客の要件に依存します |
| 支払条件: | L/C、T/T、視界 |
| 供給の能力: | クライアントの要件に応じて |

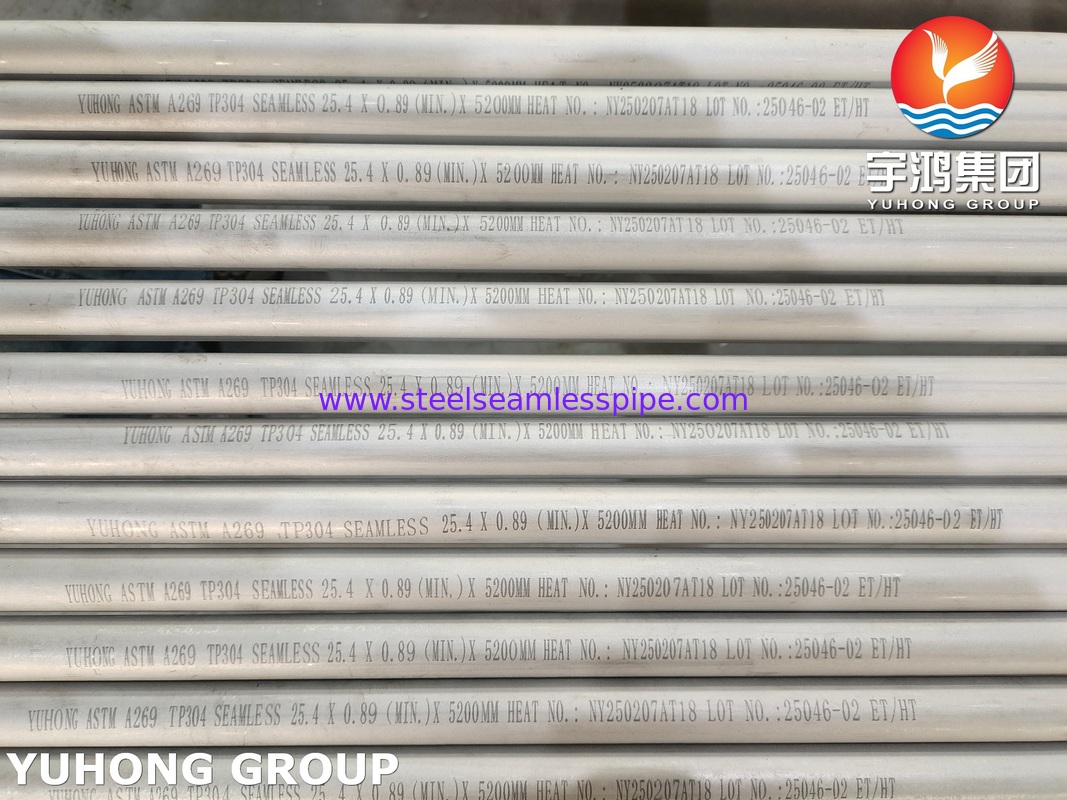

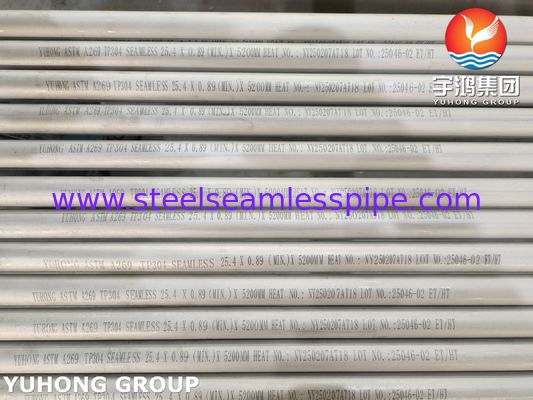

| 標準: | ASTM A269/ASME SA269 | 材料: | TP304/1.4301 |
|---|---|---|---|
| NDT: | ET/RT/PT | 長さ: | 5200mm |
| 形: | ラウンド | Aplication: | 熱交換器、化学産業、HVACシステム |
| ハイライト: | ASTM A269 TP304ステンレス鋼チューブ、シームレスステンレス鋼熱交換器チューブ | ||
| ハイライト: | ASTM A269 TP304 stainless steel tube,1.4301 seamless steel tube,stainless steel heat exchanger tube |
||
Chemical Composition (%)
|
Element |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
N |
|
Range |
≤ 0.08 |
≤ 0.75 |
≤ 2.00 |
≤ 0.045 |
≤ 0.030 |
18.0-20.0 |
8.0-11.0 |
≤ 0.10 |
Mechanical Properties (Annealed Condition)
| Tensile Strength | Yield Strength (0.2% Offset) | Elongation (% in 2 inch) | Hardness (Max) |
| ≥ 515 MPa | ≥ 205 MPa | ≥ 35% | 192 HB |
Equivalent Material of TP304
|
ASTM/AISI |
UNS NO |
EN |
ISO |
JIS |
GOST |
|
TP304 |
S30400 |
1.4301 |
X5CrNi18-10 |
SUS304 |
08X18H10 |
TP304 VS TP316
TP304: As a standard 18-8 chromium-nickel stainless steel, TP304 offers excellent corrosion resistance in many general-purpose applications involving fresh water, steam, and mild chemicals.
TP316: The key differentiating element in TP316 is the addition of 2-3% Molybdenum (Mo). This addition significantly enhances resistance to pitting and crevice corrosion, especially in environments containing chlorides (such as seawater, brackish water, and certain process chemicals) and to various acidic media including sulfuric and acetic acids.
Selection Guideline: TP304 is an economical and effective choice for most standard heat exchanger duties. TP316 is strongly recommended for more aggressive environments, such as those found in coastal plants, chemical processing, and pulp and paper industries, where the risk of chloride-induced pitting is a concern. The decision ultimately balances the specific process media against project lifecycle costs.
Applications of ASTM A269 TP304 Stainless Steel Seamless Tube in Heat Exchangers
1. Chemical Industry: Heat exchangers used in acid processing, solvent recovery, and chemical reaction systems, where corrosion resistance is of utmost importance.
2. Food and Pharmaceutical Sectors: Sanitary heat exchangers for pasteurization, sterilization, and clean-in-place (CIP) systems, ensuring the purity of products.
3. HVAC&R Systems: Evaporators, condensers, and heat pumps in commercial and residential settings, benefiting from its corrosion resistance and thermal efficiency.
Marine and Desalination Fields: Heat exchangers in seawater cooling systems and desalination plants, capable of withstanding harsh saline environments.
4. Power and Energy Sector: Auxiliary heat exchangers in power plants and renewable energy systems, contributing to efficient energy transfer and management.
