| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM A182 F11 CL2 Alloy Steel Sockolet |
| 最小注文数量: | 1pc |
|---|---|
| パッケージの詳細: | プライス・ウッド・ケース/パレット |
| 受渡し時間: | 7日 |
| 支払条件: | L/C、T/T |
| 製品名: | ソコレット | 寸法: | ANSI、ASTM、ASME、BS、DIN、EN |
|---|---|---|---|
| 標準: | ASTM A182/ ASME SA182 | 材料: | F5,F9,F11,F12,F22,F91 |
| サイズ: | 買い手の描画要件または標準として | 形: | 習慣はバイヤーの引く条件として、できる |
| クラス: | 3000#、6000#、9000# | ||
| ハイライト: | ASTM A182 F11 CL2 alloy steel sockolet,high pressure pipe fittings alloy steel,forged steel sockolet pipe fittings |
||

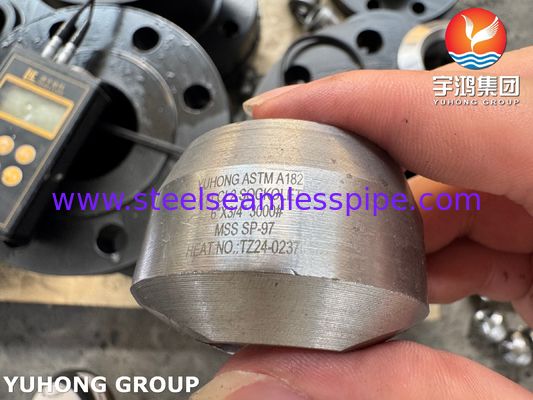

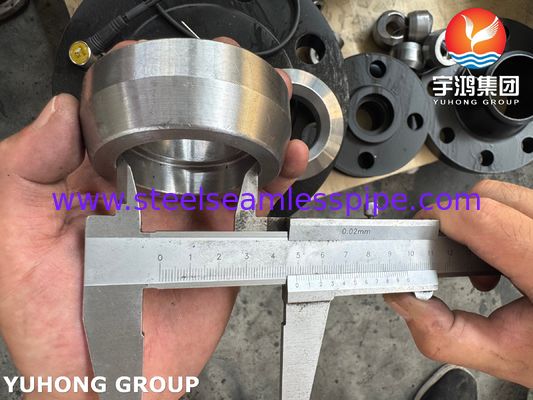

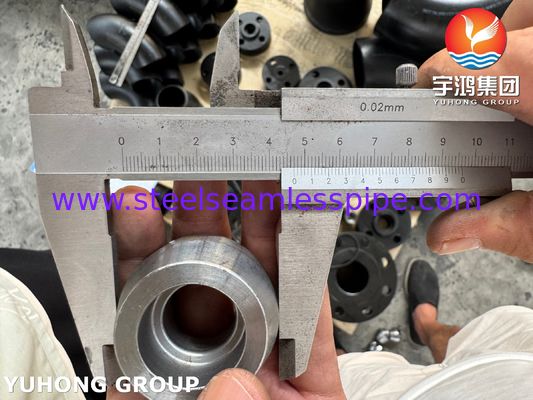

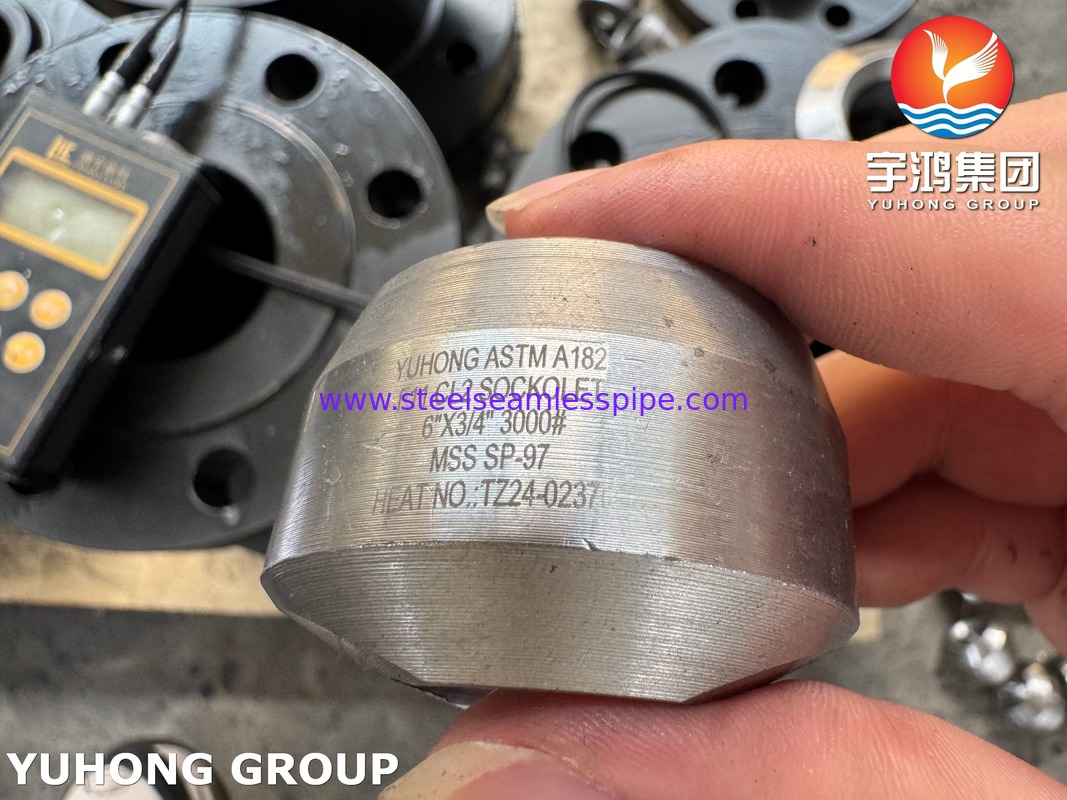

ASTM A182 F11 CL2 Alloy Steel Forged Sockolet for High Pressure Service
ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Equivalent Grade
| Brand Name | Ravne No. | Mat. No. | DIN | EN | AISI |
| 13CRMO44 | 762 | 1.7335 | 13CrMo44 | 13CrMo4-5 | A 182 Grade F11 |
ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Chemical Composition (%)
| C | Si | Mn | Cr | Mo | P | S |
| 0.1-0.2 | 0.5-1.0 | 0.3-0.8 | 1.0-1.5 | 0.44-0.65 | 0.04 max | 0.04max |
Comparison Table: F11 vs. Common Alternatives
| Feature | ASTM A182 F11 CL2 | ASTM A105 (Carbon Steel) | ASTM A182 F22 (Grade 22) | ASTM A182 F316L (Stainless) |
|---|---|---|---|---|
| Primary Use | High-Temp Steam & Process | Low-Temp Utility Services | Higher Temp/Pressure than F11 | Corrosion Resistance |
| Key Elements | 1.25% Cr, 0.5% Mo | Carbon, Manganese | 2.25% Cr, 1.0% Mo | 17% Cr, 12% Ni, 2.5% Mo |
| Temp Range | Up to ~1000°F (538°C) | Up to ~800°F (427°C) | Up to ~1200°F (649°C) | Varies (for corrosion) |
| Main Advantage | Balanced strength & weldability | Low Cost | Superior Creep Strength | Excellent Corrosion Resistance |
| Weldability | Good (with pre/PWHT) | Excellent | Requires careful procedure | Excellent |
| Standard | Types | Class Rating/Schedule | Ends | Size |
| ASME B16.11 | 90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling | 3000LB/6000LB | Threaded | 1/4''~4'' |
| Socket-welding | 1/8''~4'' | |||
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling | 9000LB | Socket-welding | 1/2''~2'' | |
| Street Elbow | 3000LB | Threaded | 1/8''~2'' | |
| 6000LB | 1/8''~1-1/2'' | |||
| Lateral Tee | 3000LB | Socket-welding | 1/4''~2'' | |
| 6000LB | 1/2''~1-1/2'' | |||
| 3000LB | Threaded | 3/8''~2‘’ | ||
| 6000LB | 1/2''~2'' | |||
| 9000LB | 1/2''~1-1/2'' | |||
| Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug | 3000LB/6000LB | Threaded | 1/8''~4'' | |
| MSS SP79 | Reducer Inserts | 3000LB/6000LB/9000LB | Socket-welding | 3/8‘’x1/4''~2x1/2'' |
| MSS SP83 | Union | 3000LB | Socket-welding/Threaded | 1/8''~3'' |
| MSS SP95 | Concentric/Eccentric Swaged Nipples | See Below Note1 | 1/4‘’~12'' | |
| Bull Plugs | Threaded | 1/8''~12'' | ||
| MSS SP97 | Weldolet | STD, XS, Sch 160/XXS | Butt-welding | 1/8''~36‘’ or larger |
| Sockolet | 3000LB/6000LB | Socket-welding | 1/8''~6'' | |
| Threadolet | 3000LB/6000LB | Threaded | 1/8''~6'' | |
| Nipolet | XS/XXS | Plain/Threaded | 1/2''~2'' | |
| Elbolet | 3000LB/6000LB | Socket-welding/Threaded | 1/4''~2'' | |
| STD/XS/160/XXS | Butt-welding | 1/4''~2-1/2'' or larger | ||
| Latrolet | 3000LB/6000LB | Socket-welding/Threaded | 1/2''~2'' | |
| STD/XS/160/XXS | Butt-welding | 1/2''~2-1/2'' | ||
| Flangolet,Nipolet,Sweepolet,etc. available as per client' demands. | ||||
