| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | API, PED , ABS, DNV, BV, LR |
| モデル番号: | A815 S31803-S同心還元剤 |
| 最小注文数量: | 1pc |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | PLY木製のケースまたはパレット |
| 受渡し時間: | 5-60日 |
| 支払条件: | T/T;一覧でL/C |
| 供給の能力: | 1500トン/月 |
| 標準: | ASTM A815/ASME SA815 | 製品名: | スーパーデュプレックススチールレデューサー肘はティーです |
|---|---|---|---|
| 尺寸規格: | ANSI B16.9 | サイズ: | 継ぎ目が無い:1/2の″ – 10 ″は、溶接した:1/2の″ – 48 ″ |
| 壁の厚さ: | SCH 10SへのXXS | 証明書: | ISO、TUV、BV、SGS、等。 |
| 応用: | オイル/ガス/化学薬品 | ||
| ハイライト: | duplex stainless steel fitting,ASTM A815 steel fitting,UNS S31803 stainless fitting |
||

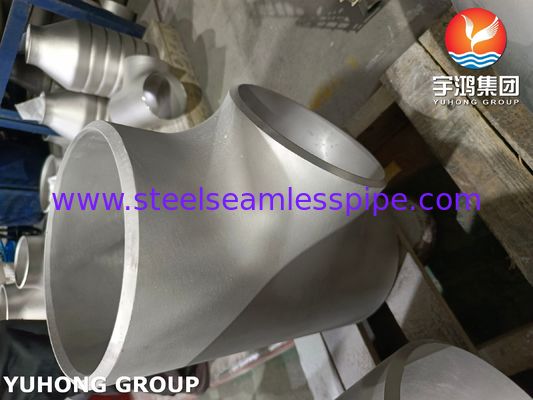

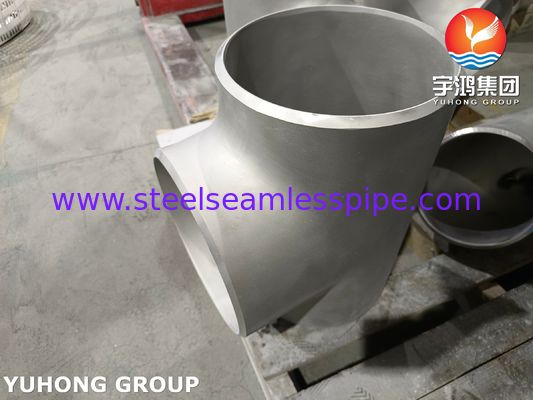

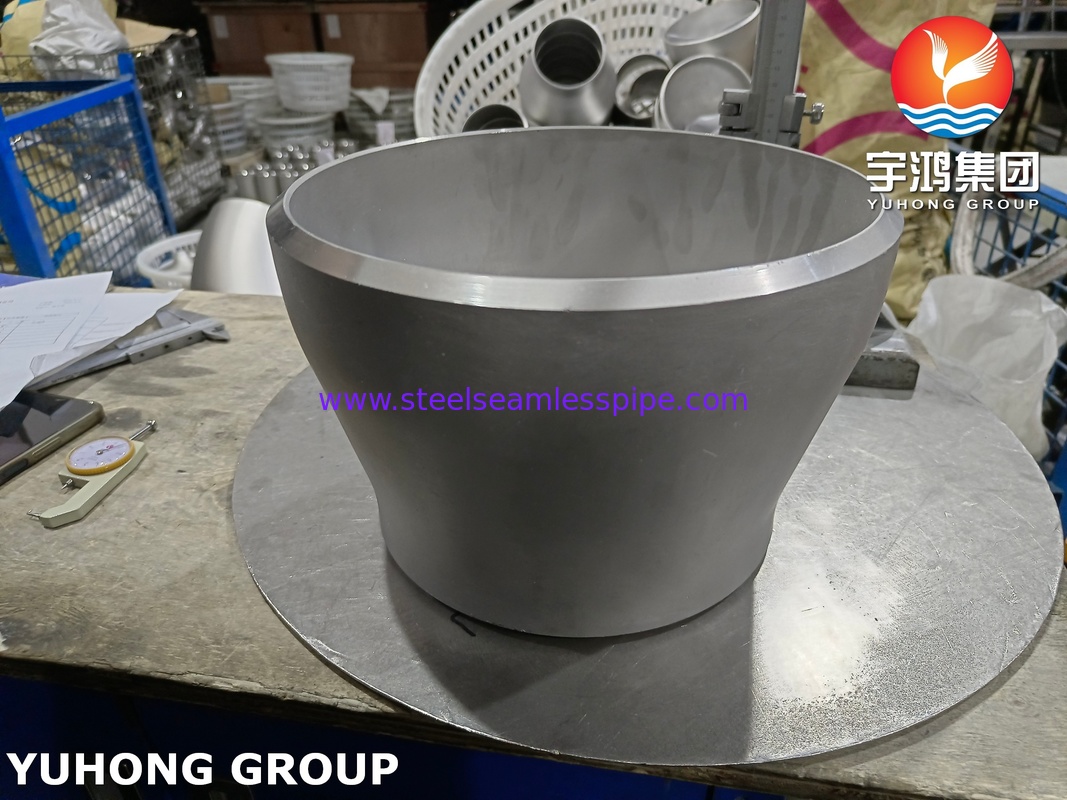

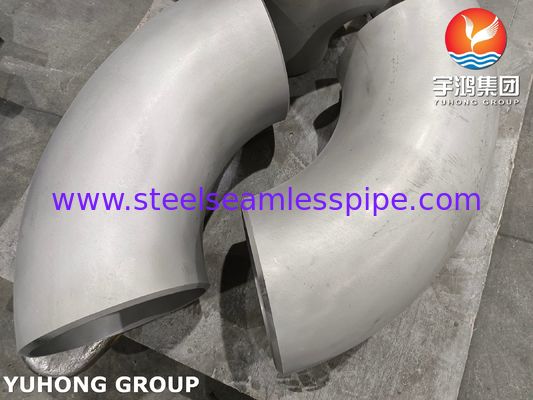

Duplex Stainless Steel ASTM A815 UNS S31803 Fitting
ASTM A815 UNS S31803 duplex stainless steel fittings are forged from 2205 alloy with an austenite-ferrite duplex structure. Their yield strength is twice that of conventional austenitic stainless steel, while offering excellent resistance to chloride stress corrosion cracking and pitting and crevice corrosion (PREN ≥ 33).
These fittings are designed to provide high-strength, lightweight, and corrosion-resistant connection solutions for piping systems in harsh environments such as chemical, oil and gas, and offshore engineering.
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 / S32205 |
Chemical Composition of Grade S31803 / S32205 Duplex Steel Seamless Pipe Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 / S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Application
