| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM B564 N10276 |
| 最小注文数量: | 500kgs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース /鉄のケース |
| 受渡し時間: | 15-30DAYS |
| 支払条件: | L/C、T/T |
| 供給の能力: | 月額1500トン |
| 標準: | ASTM A403/ASME SA403 | 材質グレード: | WP321-S (UNS S32100) |
|---|---|---|---|
| 製品タイプ: | 180°ショートラジアスエルボ | アプリケーション: | 石油化学および発電所の配管 |
| サイズ範囲: | 1/2 "から24" | 接続の終了: | バット・ウェルド |
| ハイライト: | ASTM A403 WP321-S stainless steel elbow,180° short radius pipe fitting,stainless steel petrochemical pipe fitting |
||

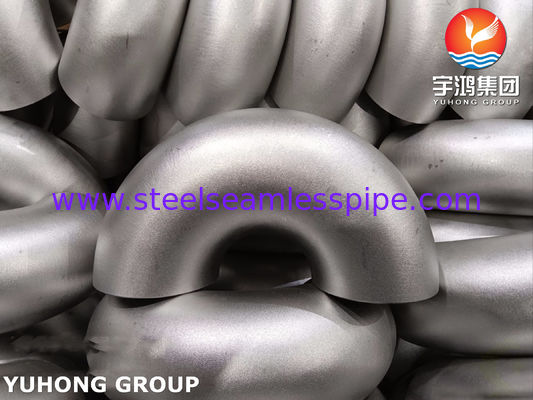

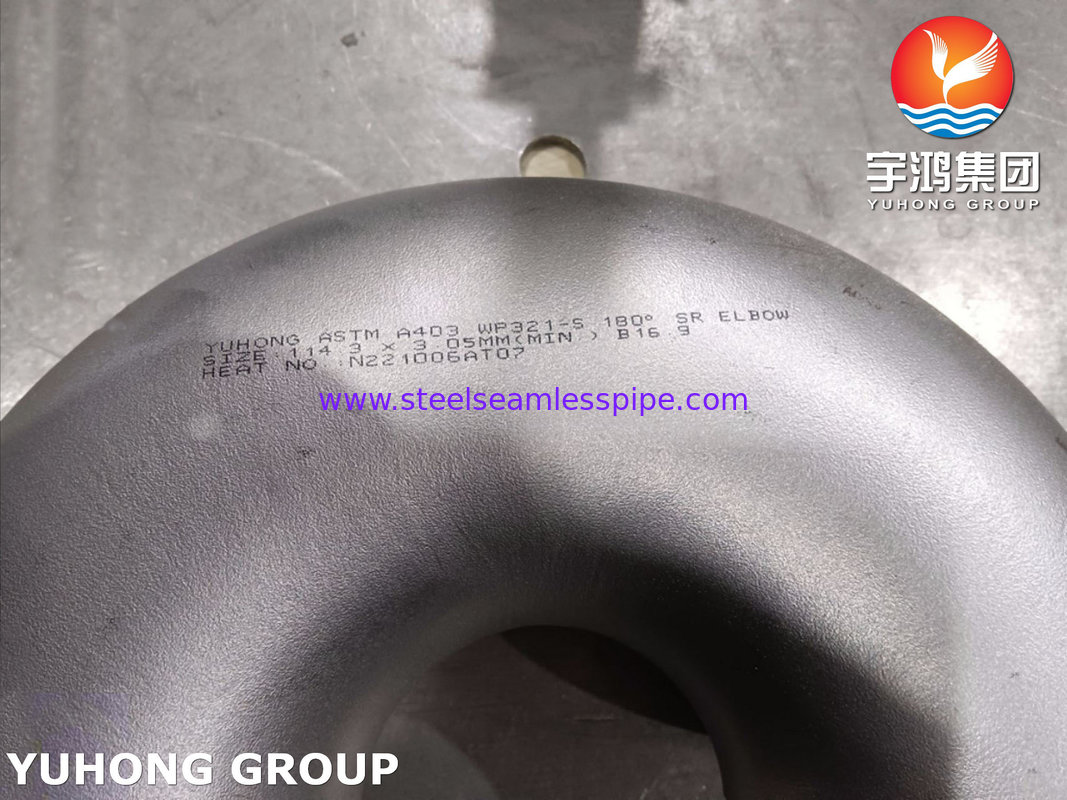

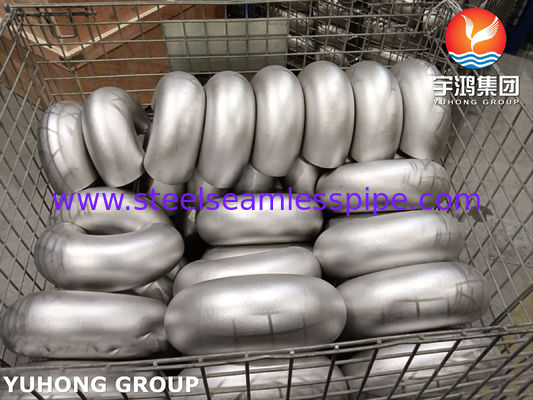

ASTM A403 WP321-S 180° Short Radius Elbow - Stainless Steel Pipe Fitting for Petrochemical & Power Plant Piping Systems
YUHONG GROUP specializes in manufacturing high-performance stainless steel pipe fittings for global industrial applications. With over 35 years of expertise in precision engineering, our ASTM A403 WP321-S 180° Short Radius Elbows deliver reliable performance in critical petrochemical and power plant piping systems, where high-temperature resistance and corrosion prevention are paramount.
Chemical Composition of Grade 321 (UNS S32100)
| Element | Requirement (%) |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Nickel (Ni) | 9.0-12.0 |
| Chromium (Cr) | 17.0-19.0 |
Heat Treatment Requirements for Grade 321 (UNS S32100)
| Parameter | Requirement |
| Grade (WP/CR) | WP321 / CR321 |
| UNS Designation | S32100 |
| Solution Anneal Temperature, min | 1900°F [1040°C] |
| Quench Media | Water or other rapid cool |
Mechanical Properties of Grade 321 (UNS S32100)
| Property | Requirement | Notes |
| Grade | 321 | Titanium-stabilized austenitic stainless steel |
| UNS Designation | S32100 | |
| Yield Strength, min | 30 ksi [205 MPa] | 0.2% offset |
| Tensile Strength, min | 75 ksi [515 MPa] | |
| Elongation, min | 28% (Longitudinal) / 20% (Transverse) | In 4D gauge length |
ASTM A403 WP321-S 180° Short Radius Elbow - Application Advantages
1.Excellent High-Temperature Resistance
Titanium-stabilized design enables continuous service up to 800°C, making it ideal for power plant superheated steam pipelines.
2. Superior Corrosion Resistance
Chromium-nickel alloy composition effectively resists acid and chloride corrosion, suitable for petrochemical equipment.
3.Space-Saving Installation
180° short radius design reduces footprint by 40%, perfect for compact plant layouts.
4.Smooth Flow Efficiency
Polished inner surface ensures minimal pressure drop and optimal fluid dynamics.
5.Long Service Life
Complies with ASME B16.9 standards, guaranteeing reliable operation for over 20 years.
Typical Applications:
