| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASTM B564 UNS N08020 合金 20 WNRF フランジ |
| 最小注文数量: | 1PC |
|---|---|
| パッケージの詳細: | 合板箱/パレット |
| 受渡し時間: | 7日間 |
| 支払条件: | LC、T/T |
| 製品名: | ニッケル合金のフランジ | 寸法: | ANSIのフランジ、ASMEは、BSフランジを付けたようになる、DINフランジを付けたようになる、EN等フランジを付けたようになるフランジを付けたようになる。 |
|---|---|---|---|
| 標準: | ASTM B564、ASME SB564 | 材料: | UNS N08020,合金20 |
| サイズ: | 1/2 "から48" | プレッシャー: | Class150/300/600/9001500/2500 |
| タイプ: | ブランク フランジ、通されたフランジ、フランジ、ソケットの溶接フランジ、溶接首のフランジのスリップは、フランジを重ね継ぎする | フランジの顔: | Flate Face（FF）、Raised Face（RF）、Ring Type（RTJ） |
| アプリケーション: | 石油・ガス産業,化学加工,海洋工学など | ||
| ハイライト: | ASTM B564 Alloy 20 WNRF flange,ASME B16.5 weld neck flange,UNS N08020 alloy steel flange |
||

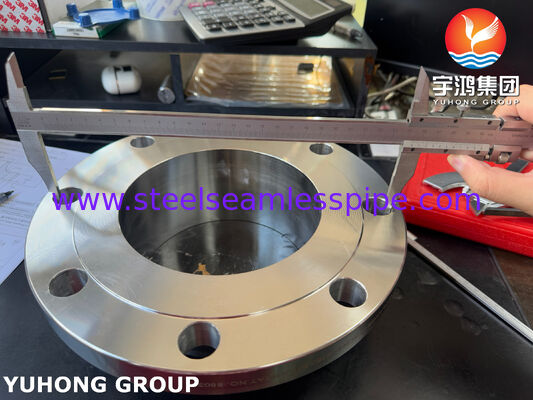

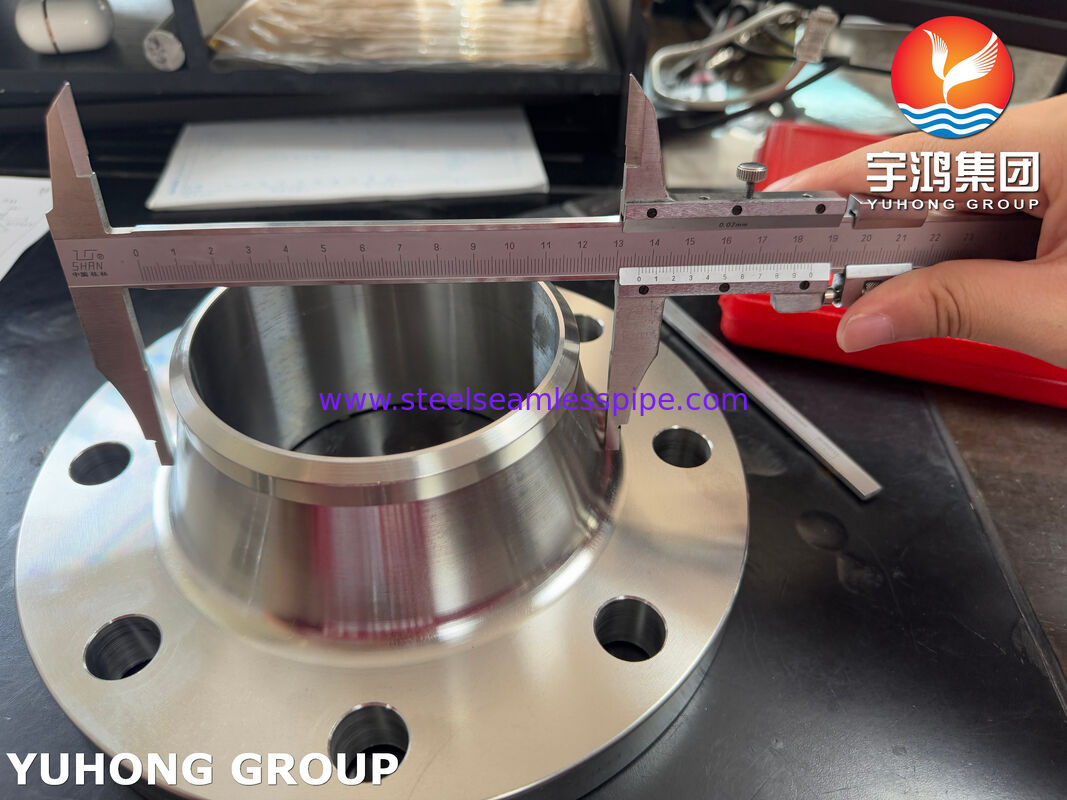

ASTM B 564 UNS N08020 / Alloy 20 WNRF Flange Nickel Alloy Weld Neck Flange
ASTM B564 UNS N08020 / Alloy 20 Weld Neck Flange is a premium, high-integrity piping component designed for the most demanding corrosive and high-pressure services. Its strength, durability, and exceptional chemical resistance make it a critical solution in industries where failure is not an option.
When to Specify Alloy 20? Specify Alloy 20 when you need:
Proven resistance to sulfuric acid and phosphoric acid.
Good general corrosion resistance where 316L is failing.
Resistance to Chloride Stress Corrosion Cracking.
A cost-effective solution that avoids the high cost of more exotic alloys like Hastelloy.
Equivalent Material of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Alloy 20 | N08020 | 2.4660 | Z2NCUD31-20AZ | NiCr20CuMo | - | - | - |
Chemical Composition (%) of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| Alloy 20 | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr |
| 32 - 38 | 0.02 max | 2 - 3 | 1 - 2 | 0.7 max | Bal | 3 - 4 | 0.005 max | 0.02 max | 19 - 21 |
Mechanical Characteristics of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi - 35000 , MPa - 241 | Psi - 80000 , MPa - 551 | 30 % |
ASTM B564 UNS N08020 Weld Neck Flange Nickel Alloy Flange
| Specifications List |
ASTM/ ASME B564 / SB564 |
|---|---|
| Standard Flange | BS, DIN, ASME, ANSI, EN |
| Size Chart | 1/2″up to 48″ (15 - 1200NB) |
| Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
| Flange Type | Weld Neck, Blind, Slip on, Socket, Thread, Long Weld Neck ... |
| ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
Key Features & Advantages
Superior Strength in Harsh Environments: The combination of the robust weld neck design and the high-strength Alloy 20 forging makes it capable of withstanding high pressures and temperatures in corrosive service.
Excellent Weldability: The "weld neck" is designed to be butt-welded directly to the pipe, creating a strong, reliable joint. Alloy 20 itself is readily weldable using compatible filler metals (e.g., ER320LR, ENi-6620).
Long Service Life: Its exceptional resistance to a wide range of corrosives minimizes maintenance, downtime, and replacement costs.
Smooth Flow Path: The tapered hub allows for a smooth transition from the pipe to the flange, reducing turbulence and pressure drop
Application
This flange is used in industries where standard stainless steels (304/316) fail due to corrosion.
Chemical Processing Industry (CPI): Reactors, tanks, and piping handling sulfuric acid, phosphoric acid, and other aggressive chemicals.
Pharmaceutical Industry: For processes involving high-purity and corrosive intermediates.
Food and Beverage Processing: Especially in applications with acidic ingredients and chlorinated cleaning agents.
Oil & Gas (Upstream & Midstream): Handling of sour gases (H₂S) and other corrosive wellstream components.
Pulp & Paper Industry: Digesters and bleaching equipment.
Plastic Manufacturing: Plants producing synthetic fibers and polymers.
