| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ISO13485:2016 |
| モデル番号: | 10g-34g |
| 最小注文数量: | 10 kgs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンボックス、プラスチックボックス、合板ケース |
| 受渡し時間: | 15-45就業日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 年間130億個 |
| 針管の種類: | 注射針チューブ、輸液針チューブ、血液ランセット、灌流針チューブ、穿刺針チューブなど | 針先形状: | 三面ベベル、五面ベベル、ブラント、クインケ、フラットベベルなど |
|---|---|---|---|
| 針チューブ標準: | ISO9626:2016、ISO7864 | 針管の材質の選択: | 医療グレードのステンレス鋼 304 素材 |
| 針チューブの外径: | 通常は 10 ゲージから 34 ゲージ、または必要に応じて | 針チューブの長さ: | 1mm-2000mmまたは要求に応じて |
| 針チューブの壁の厚さ: | RW、TW、ETW、UTW | 針管の製造工程: | 溶接、冷間引抜、焼きなまし、切断、研磨、洗浄、乾燥、検査など |
| ハイライト: | disposable medical needle tube,stainless steel injection needle,medication administration needle tube |
||

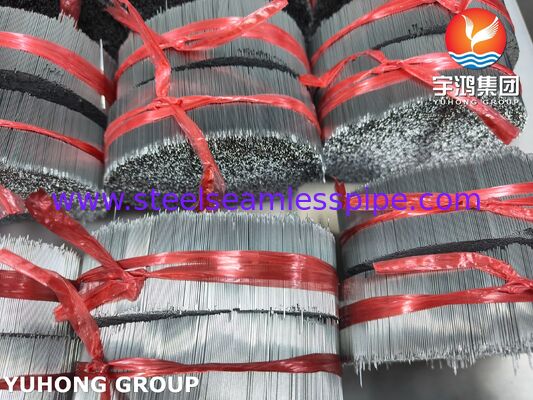

Disposable Medical Stainless Steel Injection Needle Tube For Medication Administration
The Stainless Steel Injection Needle Tube refers to ultra-precise, hollow Needle tubes with bevel tip, which is manufactured from AISI304 (SUS304) austenitic stainless steel, conforming to the international standard ISO 9626 for medical device manufacturing. These medical needle tubes are the primary raw material used by needle manufacturers to produce disposable hypodermic needles for medication administration, blood collection, and other clinical procedures. The sizes generally range from 10G (largest) to 34G (smallest) covers virtually all clinical and laboratory injection needs. Our factory has manufactured stainless steel needle tubes for more than 30 years, specializing in producing numerous kinds of needle tubes, such as injection needle tubes, hypodermic needle tubes, insulin needle tubes, blood collection needle tubes, mesotherapy needle tubes, blood lancet, and so on. If you’re interested in our medical needle tubes, just free to send your inquiry and needle drawings.
Key Advantages::
Injection Needle Types:
Regular Injection Areas & Size Selection Guide:
| Application / Injection Type | Recommended Gauge Range | Why Use This Size? |
| Intramuscular (IM) | 20G - 23G | Balances needle strength with patient comfort for deeper muscle tissue. |
| Subcutaneous (SC) | 25G - 31G | Fine needles minimize pain for frequent injections (insulin, hormones). |
| Intravenous (IV) Catheter | 14G - 24G | Larger for rapid fluid/blood (14G-18G), standard for adults (18G-20G), pediatric/elderly (22G-24G). |
| Blood Donation | 16G | Standard for efficient flow without damaging red blood cells. |
| Intradermal (ID) | 26G - 30G | Very short, fine needles for shallow injection (TB tests, allergy tests). |
| Dental Anesthesia | 25G - 30G | 27G is very common for precision and patient comfort. |
| Ophthalmic / Cosmetic | 30G - 34G | Extreme fineness is critical for delicate tissues and minimizing trauma. |
| Veterinary Use | 18G - 25G | Varies by animal size and medication viscosity. |
Different Applications Beyond Human Injection:
