| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| モデル番号: | TP405、TP409、TP410、TP430、TP439、TP444、TP446、TP441 |
| 最小注文数量: | 100kg |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30～60日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 月産1000トン |
| 標準: | ASTM A268、ASME SA268 | 材質グレード: | TP405、TP409、TP410、TP430、TP439、TP444、TP446、TP441 |
|---|---|---|---|

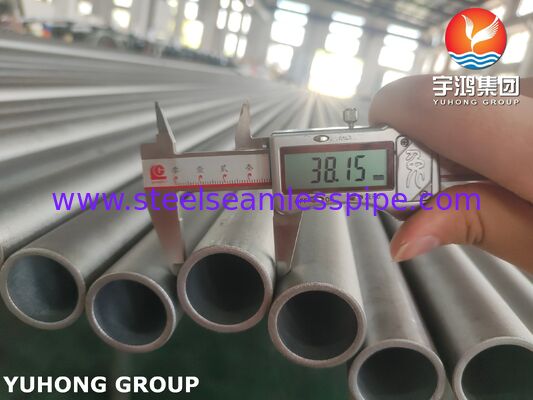

| 外径: | 6.35-152.4mmまたは要求に応じて | 肉厚: | 0.5-25mmまたは要求に応じて |
| 長さ: | 6メートルまたはカスタマイズされる | 表面仕上げ: | 光輝焼鈍、酸洗焼鈍、機械研磨 |
| 終わり: | 明白な端、斜めの端 | アプリケーション: | 石油化学産業、発電、石油・ガスプラント、熱交換器、凝縮器など |

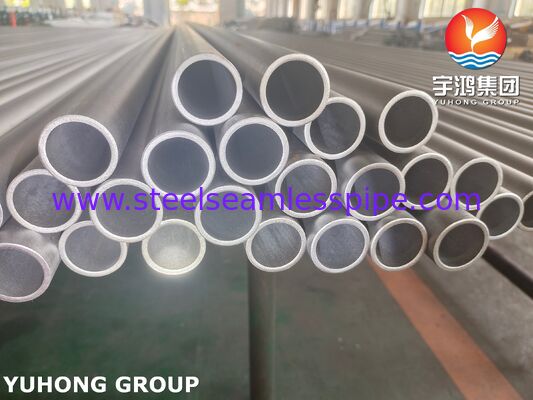

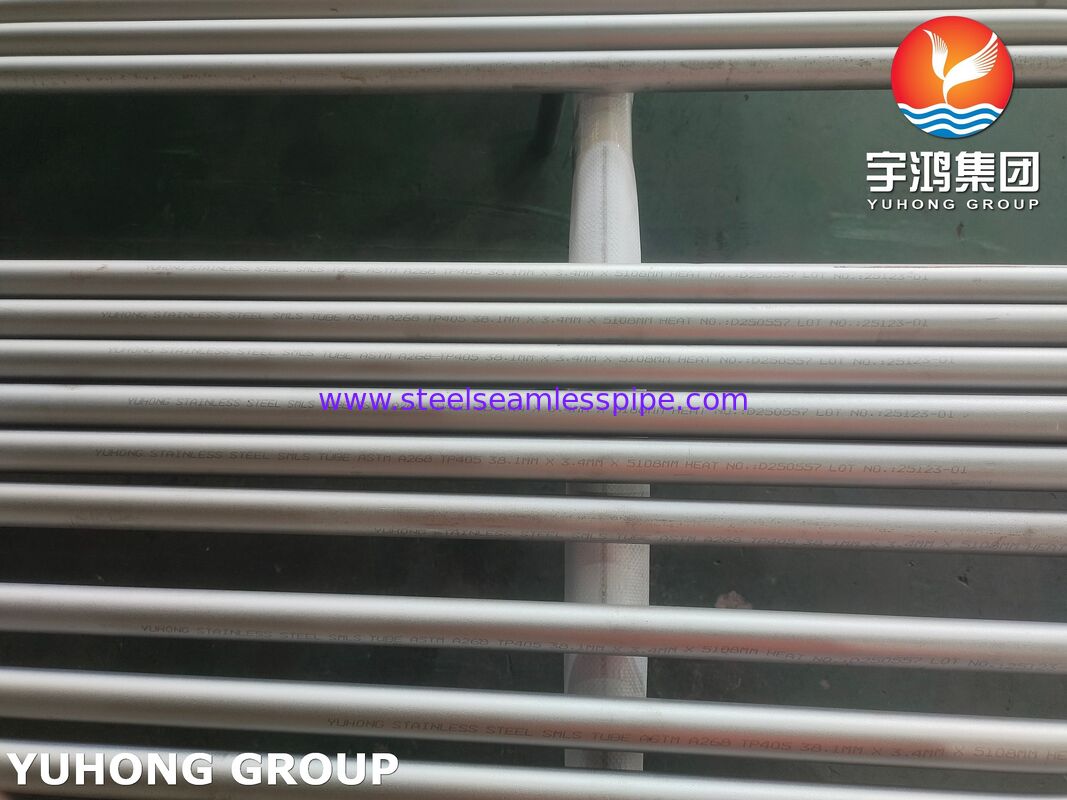

ASTM A268 TP405 Stainless Steel Seamless Tubes For Petrochemical Industry
ASTM A268 TP405 stainless steel tube is a ferritic and martensitic stainless steel tube for general corrosion-resistant and high-temperature service. TP405 grade corresponds to UNS S40500, and is a straight-chromium ferritic stainless steel grade with controlled aluminum content, which is designed to improve weldability and reduce brittleness compared to conventional 400-series stainless steels. Different from welded tubes, TP405 stainless steel seamless tubes are produced by hot rolling and cold drawing/rolling processes with no welding seam, delivering unified metallographic structure, superior pressure resistance, and consistent mechanical performance. SS405 grade is ferromagnetic, features moderate corrosion resistance, excellent high-temperature oxidation resistance, and good formability after annealing treatment. It is widely used in medium-temperature industrial systems requiring anti-oxidation, anti-corrosion and stable structural performance.
YUHONG GROUP specializes in TP405, TP410, TP430, etc. stainelss steel tubes complied with ASTM 268/ASME SA268 specification. The OD sizes range from 6.35mm to 152.4mm. As for length per tube, we generally provide 6 meters or cut into fixed length based on clients’ request.

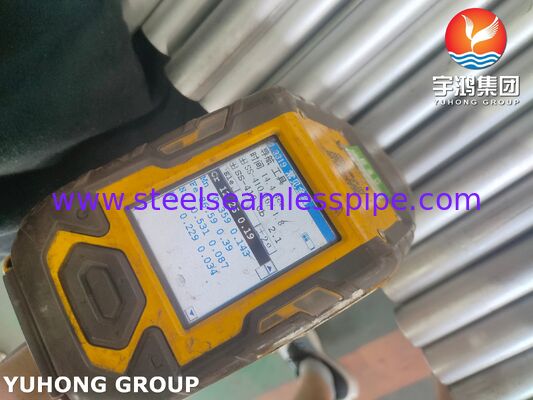

Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Al |
| ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.50 – 14.50 | ≤0.50 | 0.10 – 0.30 |
Mechanical Properties:
| Performance Index | Standard Value |
| Tensile Strength (Rm) | ≥415MPa |
| Yield Strength (Rp0.2) | ≥205MPa |
| Elongation(A) | ≥22% |
| Max Hardness (HRB) | ≤95HRB |
Key Features of ASTM A268 TP405 Seamless Tube:
Main Applications:
Standard Delivery Condition:
- Heat Treatment State: Fully annealed (bright annealing or ordinary annealing), eliminating internal stress, optimizing toughness and weldability, no quenched or tempered state for conventional delivery.
- Surface State: Pickled and descaled, no oxide scale, no rust, no cracks or folding defects; customized polishing/brushing available.
- End Treatment: Tube ends flat cut and deburred to remove burrs, convenient for on-site welding and assembly.
- Packaging: Waterproof paper wrapping + steel strip bundling + plastic pipe cap protection; plywood box packaging for precision small-diameter tubes, suitable for long-distance sea and land transportation.
