| 起源の場所: | 中国 |
| ブランド名: | YUHONG -ASME -BPVC-VIII |
| 証明: | ASME U, ASME R, ASME NB , ASME PP , ASME S |
| モデル番号: | TEMA 熱交換器 : AES、BET、BES、CHX、AET、BEU |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 10000 ~ 5M usd |
| パッケージの詳細: | 層木の箱/パレット |
| 受渡し時間: | 75---180日 |
| 支払条件: | L/C、T/T |
| 供給の能力: | 年間600セット |
| 熱交換器チューブバンドル標準: | TEMA、API 660、API 663 | 熱交換器タイプ: | AES、ベット、BES、AET、CHX、BEU |
|---|---|---|---|
| 熱交換器チューブバンドルチューブの詳細: | ASME SA213 TP316L 19.05 X 2.77 X 7315MM | 熱交換器チューブバンドルチューブシート: | ASME SA516 GR.70 + SS316L 3MM |
| チューブバンドルチャンネル: | ASME SA240 SS316L | チューブバンドル ガースフランジ: | ASME SA182 F316L |
| チューブバンドルノズル: | ASME SA182 F316L ロングウェルドネックフランジ | ||
| ハイライト: | ASME SA213 TP316L heat exchanger tube,ASME SA516 Gr.70 tube sheet heat exchanger,oil refinery heat exchanger tube bundle |
||

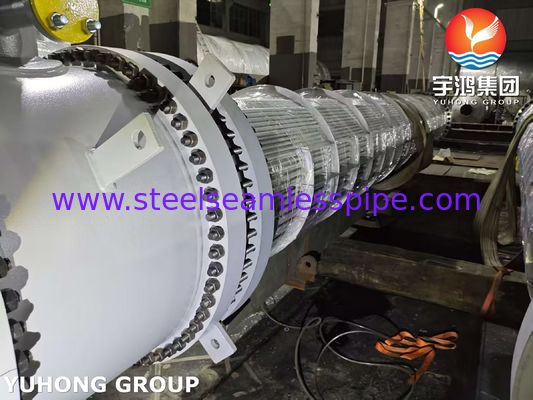

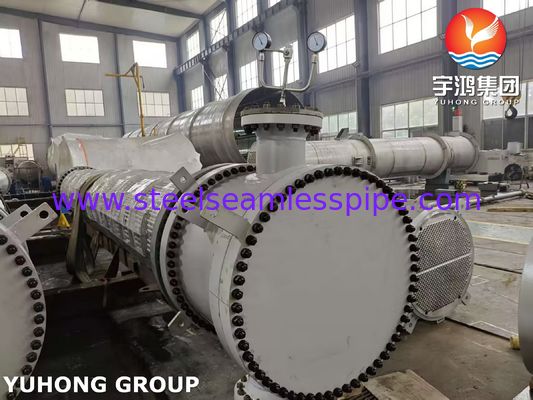

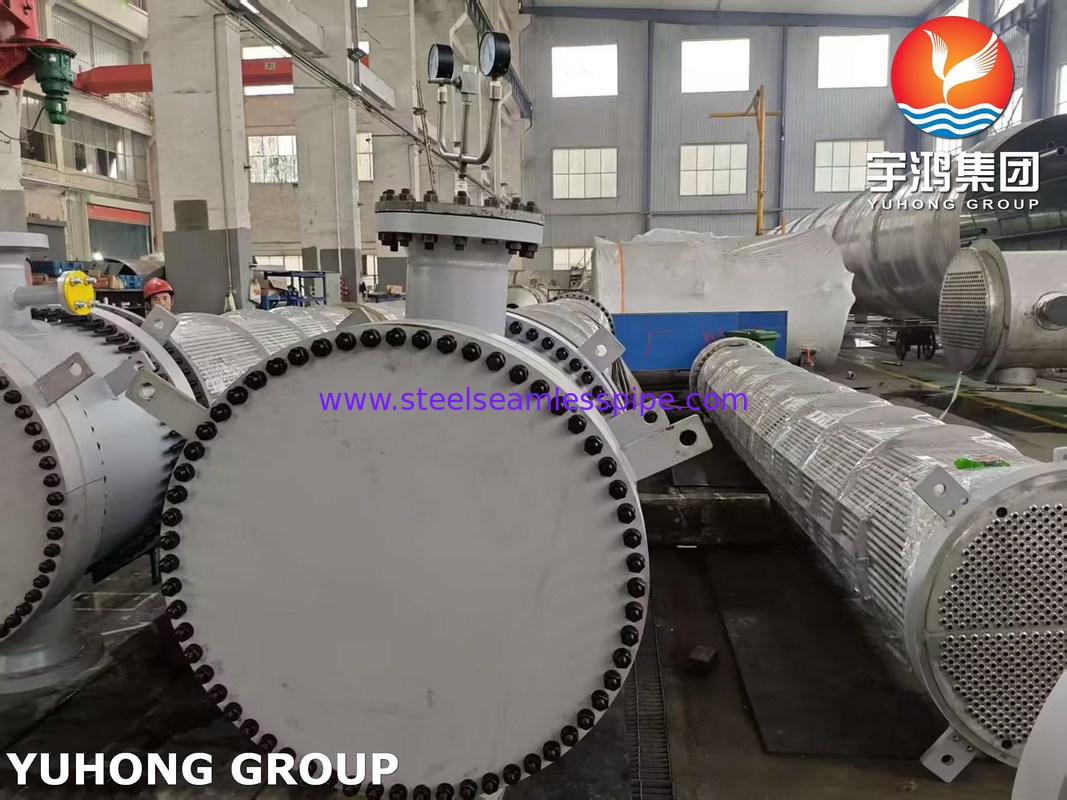

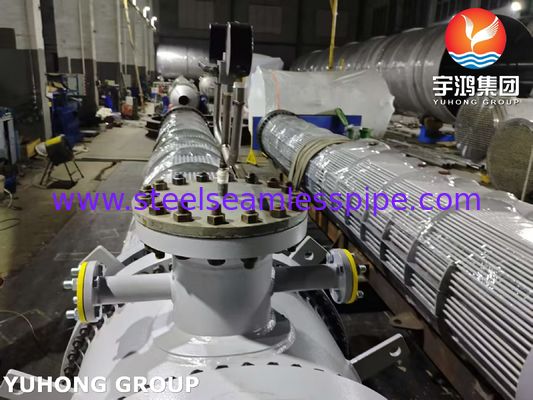

Heat Exchanger Tube Bundle For Oil Refinery Project in Saudi Arabia, ASME SA213 TP316L heat Exchanger with ASME SA516 Gr.70 TubeSheet
Yuhong Group start to support this project from 2023 Dec., the project end user below Aramco & Total join venture company : Satorp, due to old design has problem , final the old heat exchangers face leak during the application , and then Satorp company sent the new request with their new idea to replace the heat exchanger tube bundle , change the heat exchanger tube from ASME SA179 to ASME SA213 TP316L , and Tubeshee change from ASME SA516 GR.70 to ASME SA516 GR.70 + both sides with 3mm cladding SS316L ,our engineer team rechecked thermal calculation , GA drawing , Mechanical Calculation , Final we submit full set technical documents to Satorp , and all other procedure documents & ITP, WPS, WPQ, PQR, all depend on ARAMCO system , after 14 months documents adjust , final we match Satorp company documents request , and we also i becamse the AVL company in China to make service for Satorp .
1. Key Applications of Heat Exchanger Tube Bundles
The choice of design depends on thermal performance, maintenance needs, and cost:
| Type | Application | Advantages |
| Fixed Tube Sheet | Stable temperature/pressure (e.g., HVAC, light chemical processes). | Simple design, low cost. |
| U-Tube Bundle | High thermal expansion (e.g., steam-to-water exchangers). | Absorbs thermal stress; no expansion joint. |
| Floating Head | Large temperature differences (e.g., refinery crude oil pre-heaters). | Easy maintenance; handles expansion. |
| Multi-Pass | High heat transfer efficiency (e.g., chemical reactors, boilers). | Enhances turbulence and heat transfer. |
