| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | API , ABS, DNV, GL , LR, NK |
| モデル番号: | ASTM B462 C276 |
| 最小注文数量: | 1個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | Ply-woodenケース /鉄のケース |
| 受渡し時間: | 15～20営業日 |
| 支払条件: | 、L/C、T/T |
| 供給の能力: | クライアントの要件に応じて |
| 製品名: | ニッケル合金で鍛造されたフレンズ | 仕様と素材: | ASTM B462 C276 |
|---|---|---|---|
| プロセス: | 偽造 | タイプ: | ウェルネック(WN) |
| シーリング表面: | RF/FF/RTJ | プレッシャー: | Class150/300/600/900/1500/2500 |
| 応用: | 化学産業、石油およびガス、海洋工学、極度の腐食環境 | テスト: | UT、PT、MT、PMI |
| ハイライト: | ASTM B462 C276 nickel alloy flange,Nickel alloy weldneck forged flange,Raised face C276 steel flange |
||

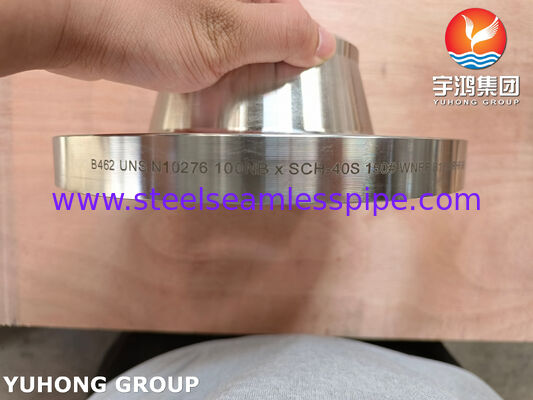

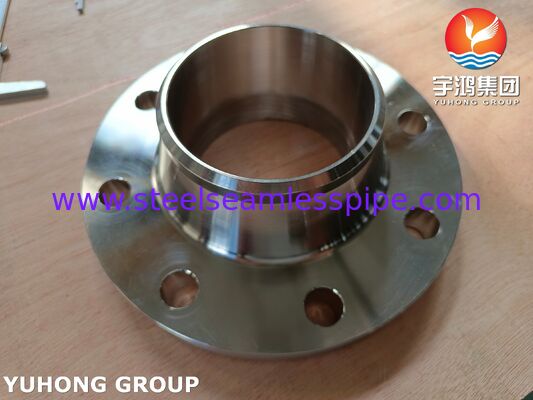

ASTM B462 C276 UNS N10276 Nickel Alloy Weldneck(WN) Forged Flange Raised Face
|
ASTM/UNS
|
GB/T | DIN/EN | JIS |
|
UNS N10276
|
NS3304
|
2.4819
|
NW276 |
| ASTM B462 C276 Chemical Composition (%) | |
| C | ≤0.01% |
| Mn | ≤1.0% |
| Si | ≤0.08% |
| P | ≤0.04% |
| S | ≤0.03% |
| Cr | 14.50%-16.50% |
| Mo | 15.0%-17.0% |
| Fe | 4.0%-7.0% |
| Co | ≤2.5% |
| W | 3.0%-4.5% |
| V | ≤0.35% |
| Ni | Rem |
Mechanical Properties
| Tensile Strength | Yield Strength (0.2% offset) | Elongation in 2 in. or 50 mm |
| ≥ 690 MPa | ≥ 283 MPa | ≥ 40% |
2. Key Adventages
Manufactured from Hastelloy C276 (UNS N10276), providing outstanding performance in both oxidizing and reducing media, with high resistance to chloride-induced stress corrosion cracking, pitting, and crevice corrosion.
Strictly forged per ASTM B462, eliminating casting defects and providing continuous grain flow for superior mechanical strength, fatigue resistance, and impact toughness.
Maintains excellent mechanical properties and creep resistance at elevated temperatures, suitable for demanding applications in chemical, oil & gas, and flue gas desulfurization systems.
The weldneck design gradually transfers stress from the flange hub to the pipe, minimizing stress concentration and enhancing safety under long-term cyclic service.
Resistant to a wide range of corrosive media including sulfuric, hydrochloric, and phosphoric acids, chlorides, and seawater, significantly reducing maintenance needs and total cost of ownership.
3. Key Applications
