| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ASME, ABS, DNV-GL , BV, LR , KR, CCS, PED, TUV, ISO9001, AD2000 |
| モデル番号: | AES Type |
| 最小注文数量: | 1Set |
|---|---|
| 価格: | 1--1000000 USD |
| パッケージの詳細: | 要件/ Ply-woodenケース/鉄ケース/プラスチックキャップ付きのバンドル |
| 受渡し時間: | 45~150日 |
| 支払条件: | T/T、L/Cは見えます |
| 供給の能力: | 60セット/月 |
| 標準: | Tema "r" ed.99 tipo：aes | フロー配置: | シングルパス |
|---|---|---|---|
| シェル: | A516 | チューブ: | SA214 |
| テスト: | 水素誘発亀裂「D」 | ||
| ハイライト: | ASME certified vacuum condenser,second-stage condenser for lubricant oil,solvent refining heat exchanger |
||

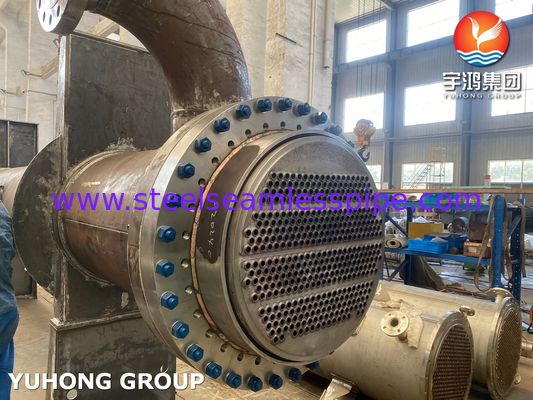

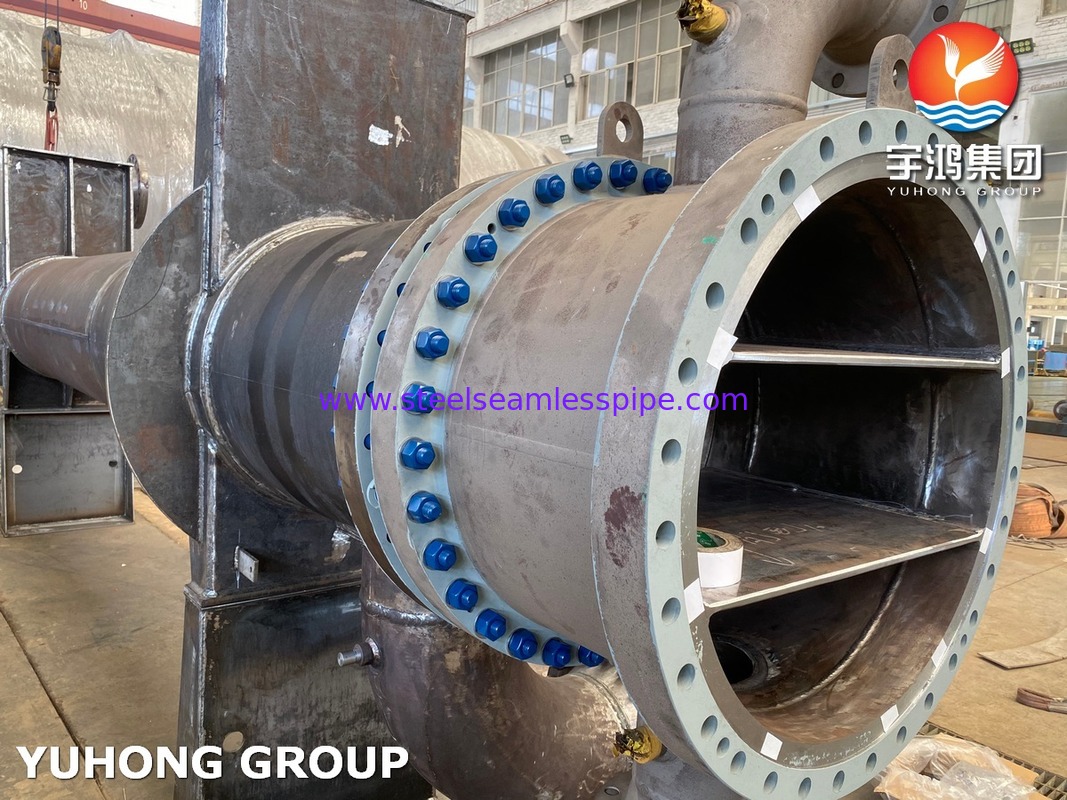

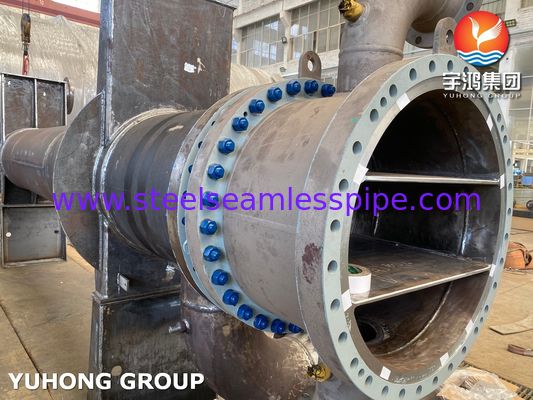

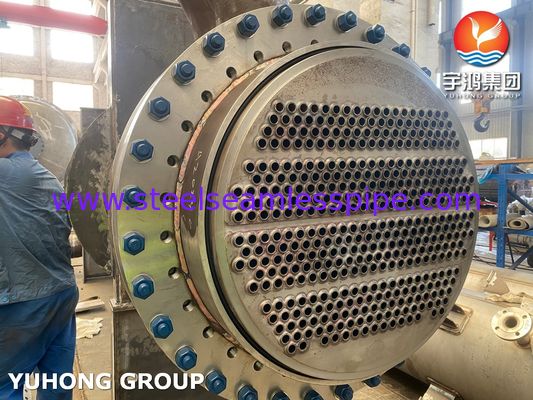

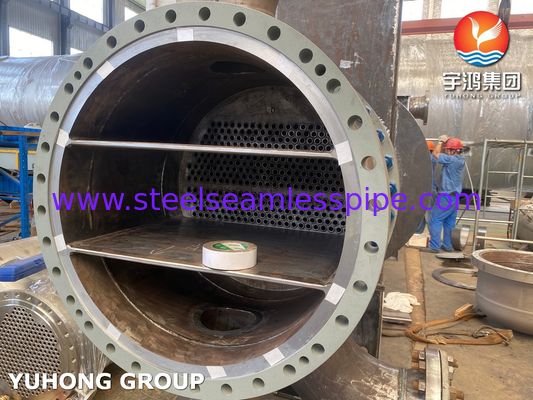

ASME Certificated Second-Stage Vacuum Condenser for Lubricant Oil Solvent Refining Unit
YUHONG is a national high-tech enterprise specializing in the design, manufacture, and service of high-end pressure vessels and heat exchange equipment. With over two decades of industry experience, we hold numerous international and domestic certifications, including the ASME "U" stamp and China's Class A1/A2 Pressure Vessel Manufacturing License. Adhering to the business philosophy of "quality first, technology at the core, and customer-centric," we are committed to providing safe, efficient, and reliable process equipment solutions for the global petrochemical, fine chemical, power energy, and environmental protection industries. We are honored to provide high-performance heat exchangers for your project.
Second-Stage Vacuum Condenser Heat Exchanger Materials List
| POS. | Description |
| 1 | FIXED TUBESHEET |
| 2 | FLOATING TUBESHEET |
| 3 | TUBES TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=3048 |
| 4 | BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM |
| 5 | BAFFLE SA-36 PLATE 12.5mm (1/2"), 592X806.2MM |
| 6 | SUPPORT PLATE SA-36 PLATE 16mm (5/8"), 806.2MM |
| 7 | TIE RODS SA-36 BAR Ø1/2", L=2883MM |
| 8 | HEX NUT SA-194-2M Ø1/2" "UNC" THREAD |
| 9 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=502MM |
| 10 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1507.5MM |
| 11 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=1262MM |
| 12 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 747.5MM |
| 13 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), 1537.5MM |
| 14 | SPACER TB. SA-179 ØExt.3/4" BWG-14 (19.05x2.11), L=777.5MM |
| 15 | GASKET PLATE SA-36 PLATE 6.3mm (1/4"), 58x1573MM |
| 16 | SLIDING PLATE SA-36 PLATE 12.5mm (1/2"), 74x2850MM |
| 17 | PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM |
| 18 | PROTECTION PLATE SA-36 PLATE 6.3mm (1/4"), 460x515MM |
| 19 | SQUARE PLATE SA-36 Ø6.3mm (1/4"), L=515MM |
| 20 | HEADLESS SLOTTED PLUG AISI-304 Ø3/4" "UNC" THREAD, L=30MM |
| 21 | EYE BOLT DIN 580 "UNC" THREAD, 3/4INCHx30MM |
| 22 | IDENTIFICATION PLATE AISI-304 PLATE 1.5mm, 35x75MM |
| 23 | STOPPER SA-36 PLATE 19mm (3/4"), 37x40MM |
HIC Testing and the "HIC D" Grade, Second-Stage Vacuum Condenser
•Crack Length Ratio (CLR) ≤ 5%
•Crack Thickness Ratio (CTR) ≤ 1.5%
•Crack Sensitivity Ratio (CSR) ≤ 0.5%
In some extremely severe service conditions, the specification may require all three indices to be 0%, meaning no detectable cracking is permitted.
