| 起源の場所: | 中国 |
| ブランド名: | YUHONG |
| 証明: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| モデル番号: | ASME SA182 F304 |
| 最小注文数量: | 1個 |
|---|---|
| 価格: | NEGITABLE |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 7日間 |
| 支払条件: | T/T、LC |
| 供給の能力: | 月額100トン |
| 標準: | ASME SA182 | 材質グレード: | F304 |
|---|---|---|---|
| 製品タイプ: | フランジのスリップ | 材料: | ステンレス鋼 |
| フェイスタイプ: | 上げられた表面（RF） | 応用: | 化学および工業用配管 |
| ハイライト: | ASME SA182 F304 stainless steel flange,slip on raised face flange,industrial piping stainless steel flange |
||

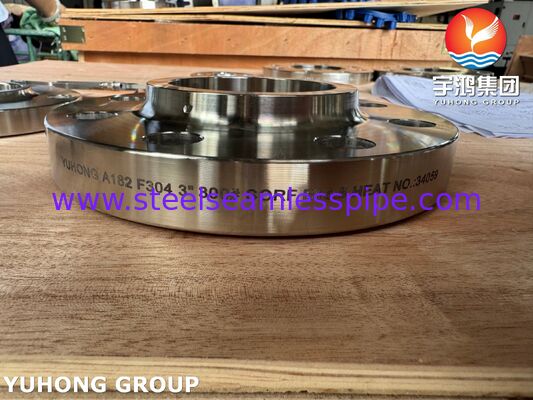

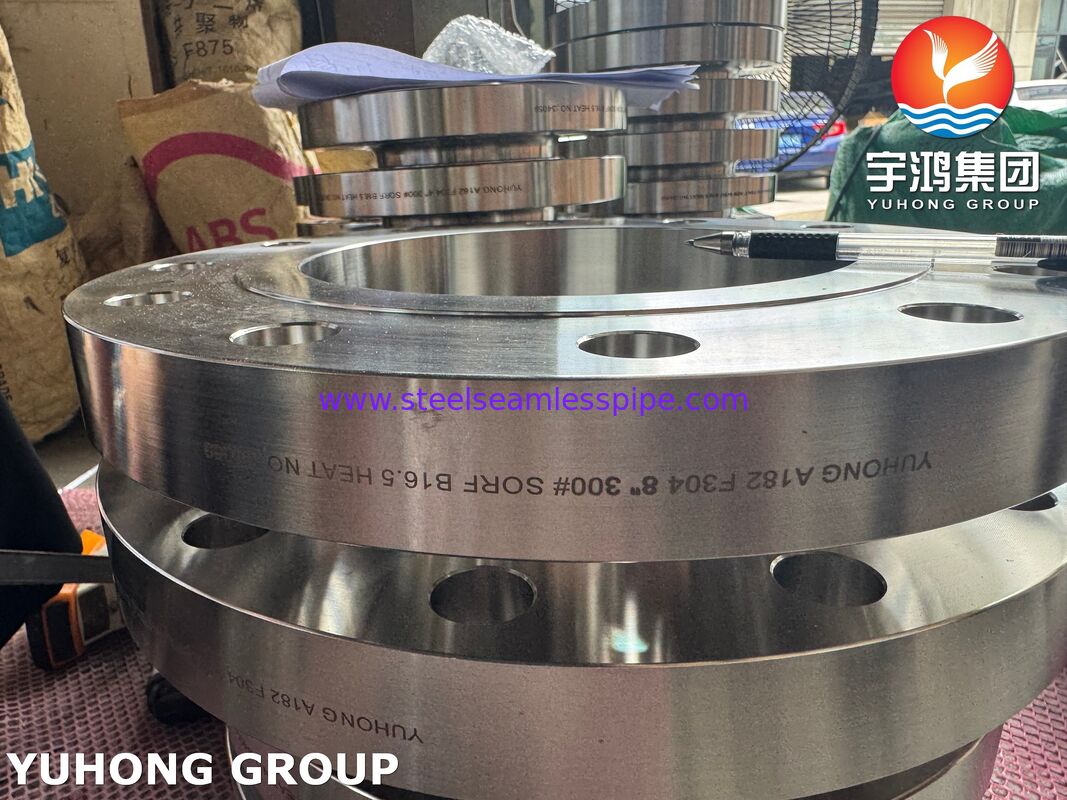

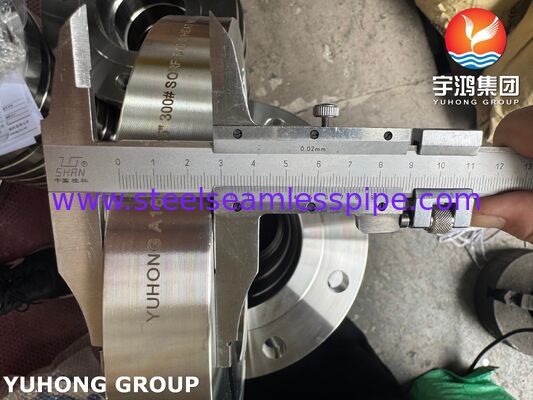

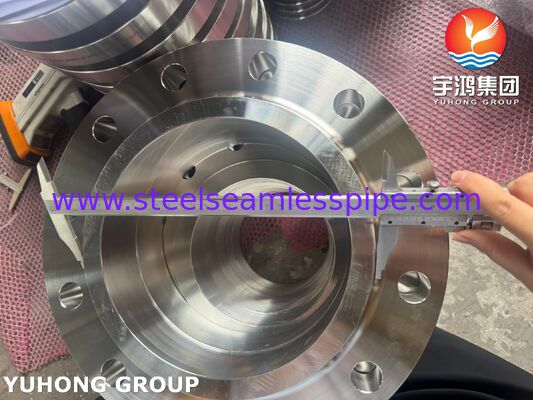

ASME SA182 F304 SO RF Stainless Steel Flange Slip On Raised Face for Chemical and Industrial Piping
With over 35 years of manufacturing expertise and a global presence spanning 85 countries, YUHONG GROUP specializes in producing precision-engineered piping components for critical applications worldwide. Our ASME SA182 F304 Stainless Steel Slip-On Flanges with Raised Face are manufactured to the highest international standards, delivering reliable performance in chemical processing, industrial piping systems, and various demanding environments.
Heat Treatment Requirements for Grade F304 (UNS S30400)
| Parameter | Specification | Notes |
| Grade (ASTM) | F304 | Wrought Austenitic Stainless Steel |
| UNS Designation | S30400 | |
| Material Category | Austenitic Stainless Steels | |
| Heat Treat Type | Solution Treat and Quench | Mandatory process |
| Solution Temperature, min | 1900 °F [1040 °C] | |
| Quenching Media | Liquid | Typically water |
| Tempering Temperature | Not Applicable | Austenitic stainless steels are generally not tempered |
Chemical Composition of Grade F304 (UNS S30400)
| Element | Requirement (%) |
| Carbon (C), max | 0.08 |
| Manganese (Mn), max | 2 |
| Phosphorus (P), max | 0.045 |
| Sulfur (S), max | 0.03 |
| Silicon (Si), max | 0.75 |
| Nickel (Ni) | 8.00 - 10.50 |
| Chromium (Cr) | 18.00 - 20.00 |
Tensile and Hardness Requirements for Grade F304 (UNS S30400)
| Property | Specification / Value | Notes |
| Grade Symbol (ASTM A182) | F304 | Wrought Austenitic Stainless Steel |
| UNS Designation | S30400 | |
| Tensile Strength, min | 75 ksi | 515 MPa |
| Yield Strength (0.2% Offset), min | 30 ksi | 205 MPa |
| Elongation in 2 in. or 50 mm, min | 30% | |
| Reduction of Area, min | 50% | |
| Brinell Hardness Number (HBW) | ... |
ASME SA182 F304 SO RF Stainless Steel Flange - Key Application Advantages
1. Excellent Corrosion Resistance
Manufactured from ASTM A182 F304 stainless steel, providing outstanding resistance to corrosive media, making it ideal for chemical processing, marine, and acidic environments.
2 . Easy Installation and Maintenance
The slip-on (SO) design with raised face (RF) allows for quick alignment and simple installation, reducing assembly time and facilitating future maintenance.
3 . Reliable Sealing Performance
The raised face design ensures even gasket compression, creating a tight, leak-proof seal suitable for low to medium-pressure piping systems.
4. Wide Application Compatibility
Suitable for various industrial applications, including chemical plants, food processing, water treatment, and general industrial piping systems.
5. International Standard Compliance
Manufactured in full compliance with ASME SA182 standards, guaranteeing material quality and performance reliability for global projects.
