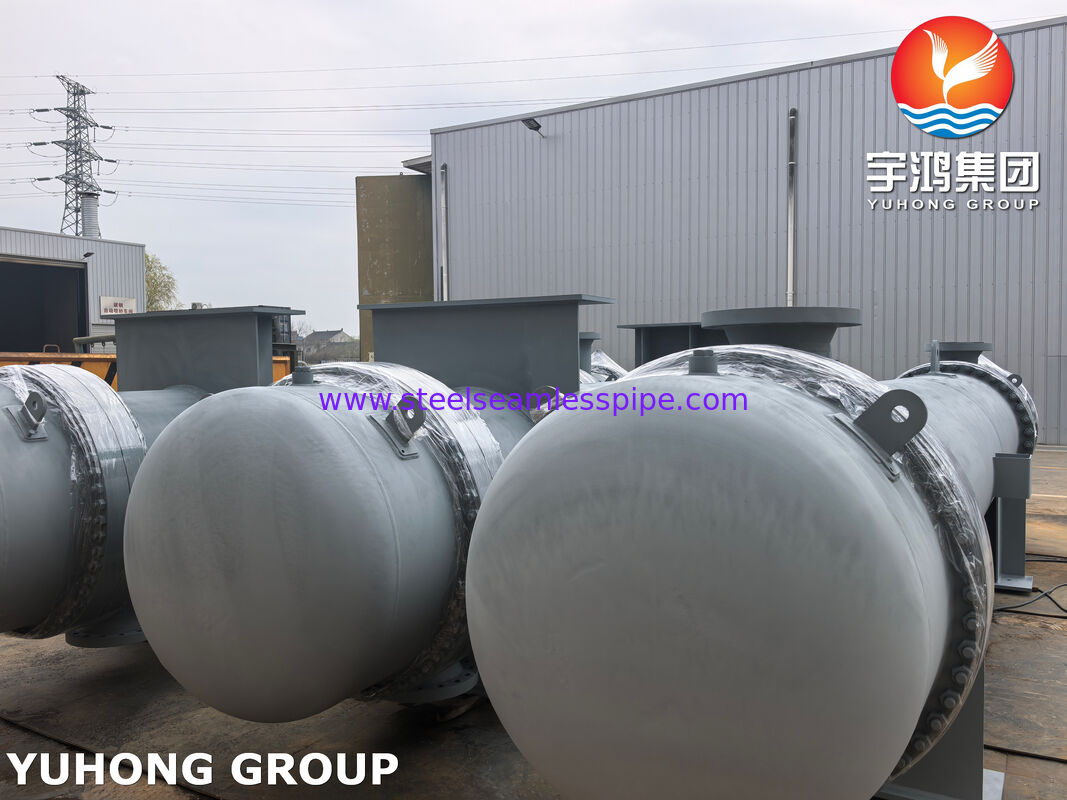

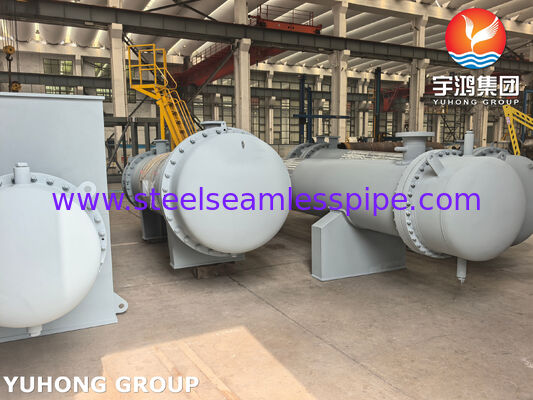

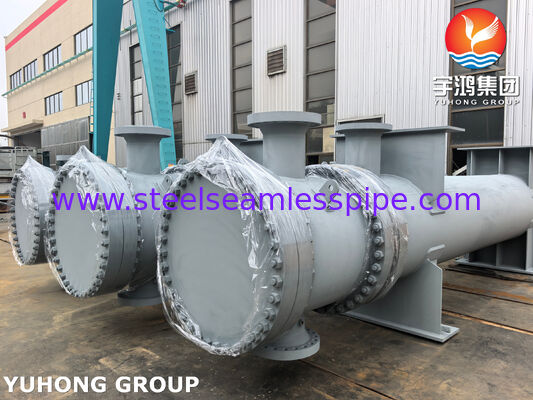

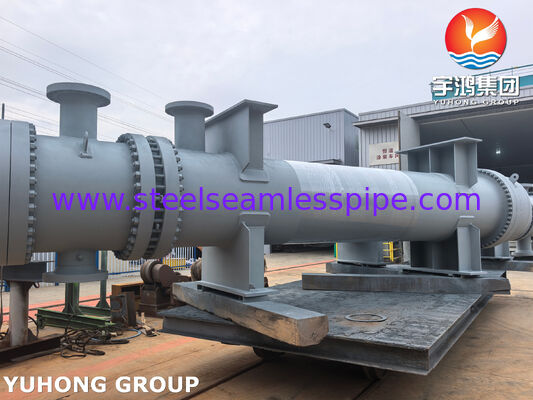

ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential

ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential

  • ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
  • ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
  • ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
  • ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
商品の詳細:
起源の場所: 中国
ブランド名: YUHONG
証明: ASME, U STAMP, TEMA
モデル番号: フローティングヘッド熱交換器、シェルアンドチューブ熱交換器
お支払配送条件:
最小注文数量: 1セット
価格: 1 - 1000000 USD
パッケージの詳細: パレット・木箱
受渡し時間: 45～150日
支払条件: T/T、L/C
供給の能力: 毎月100セット
連絡先
すべての製品
ステンレス鋼のシームレスパイプ (342)
ステンレス鋼の継ぎ目が無い管 (335)
二重ステンレス鋼の管 (134)
二重ステンレス鋼の管 (39)
ニードルチューブ (170)
フィンチューブ (733)
熱交換器 (35)
熱交換器の管 (472)
熱交換管のバンドル (52)
熱交換器Tubesheet (128)
熱交換器のバッフル (39)
エアクーラー (14)
圧力容器 (4)
ステンレス鋼の溶接された管 (61)
ステンレス鋼の溶接された管 (134)
ニッケル合金の管 (276)
ニッケル合金の管 (104)
銅合金の管 (257)
合金鋼の管 (217)
チタニウムの管 (21)
明るいアニールされた管 (174)
ボイラー管 (155)
鋼鉄付属品 (874)
鋼鉄フランジ (671)
ほか (409)
カーネーション部品 (9)
詳細製品概要
熱交換区域: 5㎡～3,000㎡ 設計圧力: 0.1～30MPa
チューブ径: Φ19×2mm～Φ25×2.5mm 設計温度: -100°Cから550°C

ASME U Stamp Floating Head Heat Exchanger with TEMA Class R Design for High-Temperature Differential
TEMA Class R Shell & Tube Design for High-Temperature Differential and Fouling Services
Product Overview
Yuhong Group Co., Ltd. engineers and fabricates ASME-certified shell-and-tube heat exchangers, pressure vessels, and air-cooled heat exchangers for the global oil & gas, petrochemical, refining, and power generation sectors.
The ASME U Stamp Floating Head Heat Exchanger is a TEMA Class R shell-and-tube unit specifically selected for severe thermal differentials and shell-side fouling. The floating tubesheet is not welded to the shell, enabling the tube bundle to expand and contract independently—eliminating differential thermal expansion stress when the temperature difference (ΔT) between shell-side and tube-side fluids exceeds 60°C.
The removable bundle design allows full pull-through extraction for mechanical cleaning, tube inspection, and plugging without disturbing shell-side piping, drastically reducing turnaround time.
Major Components - Material Standards & Specifications
ComponentMaterial Standard / Typical GradeFunctional Role
Heat Exchanger Tubes (seamless)ASME SA-213 TP316LLow-carbon stainless steel; superior resistance to chloride pitting and general corrosion
Stationary TubesheetASME SA-182 F316L (forged)Fixed-end connection to shell; houses tube inlets/outlets
Floating TubesheetASME SA-266 Gr.2 (carbon steel forging)Not welded to shell; permits axial thermal movement
Shell & Shell CoverASME SA-516 Gr.70 (carbon steel plate)Primary pressure boundary; thickness designed per ASME UG-27
Channel & Channel CoverASME SA-516 Gr.70 or ASME SA-240 316L (plate)Tube-side fluid containment; provides access to tube ends
BafflesASME SA-516 Gr.70 or ASME SA-240 316LSupport tubes and direct cross-flow for enhanced heat transfer
Floating Head AssemblyCover, gasket, bolting - per ASME Section VIIIEnables bundle extraction and accommodates differential expansion
Tubesheet cladding can be specified with ASME SA-266 Gr.2 + 304, + 316L, + 2205, or + 8825 for aggressive corrosive/erosive services. Tube diameters range from Φ19×2 mm to Φ25×2.5 mm (custom gauges available), and heat transfer areas are engineered from 5 m² up to 3,000 m² depending on thermal duty and allowable pressure drop.
Testing & Inspection Requirements (ASME Section VIII Div. 1)
Test TypeCode ReferenceAcceptance Criterion
Hydrostatic TestUG-99 - 1.3 × MAWP, minimum 30‑min holdNo visible leakage or pressure decay; tested separately on shell and tube sides
Radiographic Examination (RT)ASME Section V, Article 2Full or spot RT per UW-11; no unacceptable volumetric indications
Ultrasonic Examination (UT)ASME Section V, Article 5Laminar inspection of plates and forgings; thickness verification
Dye Penetrant / Magnetic Particle (PT/MT)ASME Section V, Articles 6 & 7Surface flaw detection on all pressure-retaining welds and machined surfaces
Pneumatic TestOptional (when hydrotest not feasible)Per ASME Code Case or user specification
Final Dimensional CheckPer approved fabrication drawingsAll critical dimensions (tube pitch, baffle spacing, nozzle orientation) verified
All inspections are documented in the Manufacturer's Data Report (MDR) and witnessed by the ASME Authorized Inspector prior to U Stamp application.
Application Scenarios
Floating head exchangers are mandated where fixed tubesheet or U-tube designs are inadequate:
  • Oil & Gas: Crude preheat trains, gas dehydration, refinery crude distillation unit (CDU) overheads
  • Petrochemicals: Reactor effluent cooling, solvent regeneration, ethylene quench coolers
  • Power Generation: Steam surface condensers, feedwater heaters, turbine lube oil coolers
  • Heavy Industry: Blast furnace gas cooling, compressor intercoolers, hydraulic oil cooling
  • Severe Fouling Services: Fluids with high scaling, coking, or polymerization tendency that demand regular mechanical cleaning
Technical Advantages & Customization
Stress-Free Thermal Expansion - The floating tubesheet is unrestrained, allowing the bundle to slide axially. This eliminates thermal fatigue cracks common in fixed designs when ΔT exceeds 60°C - a parameter validated by FEA per ASME Section VIII, Appendix 4.
Full Maintainability - After removing the rear cover and floating head, the entire bundle can be pulled out. External tube surfaces and shell interior are fully accessible for high‑pressure water jetting or brushing, which is impossible with U‑tube bundles (due to bend radius constraints).
Corrosion Resistance - SA‑213 TP316L tubes offer proven resistance to chlorides (up to 2,000 ppm) and a wide pH range, with low carbon content (≤0.035%) preventing intergranular corrosion after welding.
Customisable Parameters (all within ASME design limits):
  • Design pressure: 0.1 - 30 MPa (g)
  • Design temperature: -100°C to +550°C
  • Shell materials: carbon steel (SA‑516), alloy steel, stainless steel (304/316L), duplex (2205)
  • Tube materials: stainless steel, carbon steel (SA‑179), titanium, copper‑nickel (C70600), nickel alloys (Incoloy 825)
  • TEMA types: AES, AET, or other floating head variants
  • Baffle arrangements: single‑segmental, double‑segmental, or helical to optimise cross‑flow velocity
Frequently Asked Questions
Q: When is a floating head exchanger preferred over fixed tubesheet or U‑tube?
A: Specify floating head when the shell‑side ΔT exceeds approximately 60°C AND shell‑side fouling is expected. Fixed tubesheet cannot accommodate large expansion; U‑tube bundles cannot be mechanically cleaned on the outside of the bends.
Q: What distinguishes TEMA AES from AET floating head designs?
A: AES uses a split‑backing ring for gasket retention; AET employs a pull‑through floating head. AES is more common for moderate pressures; AET is selected when the floating head cover must be fully removable without disturbing the shell.
Q: What does the ASME U Stamp legally certify?
A: It certifies that the vessel's design, materials, fabrication, welding, NDE, and hydrotest fully comply with ASME Section VIII Div. 1. The stamp, applied by an Authorized Inspector, is a prerequisite for procurement in most jurisdictions and for insurance underwriting.
Q: Can the tube bundle be withdrawn without disconnecting shell‑side piping?
A: Yes - after removing the rear channel cover and floating head cover, the bundle slides out axially, leaving all shell‑side nozzles and piping intact.
Q: Which NDE methods are mandatory for ASME U Stamp floating head exchangers?
A: ASME Section VIII mandates RT of all butt welds (per UW‑11), UT of plates and forgings (per UG‑93), and PT/MT of surface welds. Additional NDE (e.g., PMI, hardness testing) can be added per user specification.
For detailed technical data sheets, 3D models, or a quotation tailored to your process conditions, please contact Yuhong Group Co., Ltd. directly at vladimir@steelseamlesspipe.com.
ASME U Stamp Floating Head Heat Exchanger - Industrial manufacturing and design
